🔧 Product Description

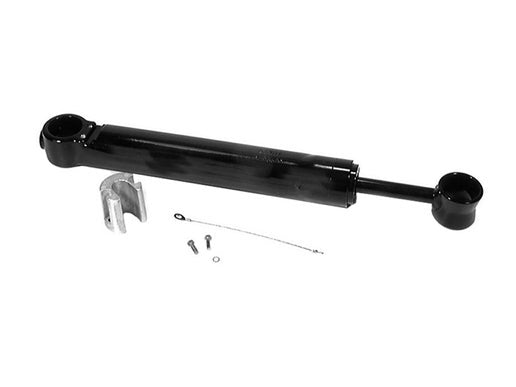

Genuine Quicksilver Bravo Port Trim Cylinder Assembly - Part Number: 8M0132609
Genuine Quicksilver port-side trim cylinder assembly for MerCruiser Bravo sterndrives. This trim ram supersedes earlier 98703A26 / 8M0108279 references and fits Bravo One, Bravo Two, Bravo Three and related Bravo X / XR / XZ trim systems where the port trim cylinder diagram specifies 8M0132609.
⚙️ Key Features
- Genuine Quicksilver OEM port trim cylinder
- Correct Mercury part number 8M0132609
- Port-side Bravo trim ram
- Supersedes 98703A26 / 8M0108279
- Fits Bravo One, Bravo Two and Bravo Three trim systems where specified
- Direct replacement for supported Bravo power trim assemblies
🚤 Compatibility
Commonly used on
- MerCruiser Bravo power trim systems
- Bravo One, Bravo Two and Bravo Three port-side trim ram locations
- Bravo SeaCore and Bravo X / XR / XZ trim cylinder service where specified
Typically suits
- Drive models:
- MerCruiser Bravo Drives - 1988-2015, serial 0B664190 to 2A480243
- MerCruiser Bravo Drives - 2015 and newer, serial 2A480244 and up
- MerCruiser Bravo SeaCore Drives - 2015 and newer, serial 2A480244 and up
- MerCruiser Bravo One - serial 0B664190 and up where port trim cylinder 8M0132609 is specified
- MerCruiser Bravo Two - serial 0B664190 and up where specified
- MerCruiser Bravo Three - serial 0B664190 and up where specified
- MerCruiser Bravo X / XR / XZ trim cylinder applications where specified
- Drive Type: MerCruiser Bravo stern drive
- Side: Port
- System Type: Power trim cylinder / trim ram assembly
🔌 Function
The port trim cylinder raises, lowers and supports the sterndrive trim angle together with the starboard trim cylinder.
⚠️ Common Signs of Failure
- Hydraulic fluid leaking from ram
- Drive slowly drops after being trimmed up
- Port ram shaft pitted, corroded or bent
- Uneven trim movement
- Fluid loss around end cap or rod seal
- Replacement required during Bravo trim service
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 8M0132609 current OEM port trim cylinder assembly
- 8M0108279 earlier / related port trim cylinder reference
- 98703A26 earlier Bravo port trim cylinder assembly reference
OEM / Related Numbers
- 8M0132609
- 8M0108279
- 98703A26
- Bravo port trim cylinder
- Port trim ram
- Port power trim cylinder
- 8M0132610 related starboard trim cylinder
- 98704A26 related starboard trim cylinder
Aftermarket / Verified Equivalents
- Aftermarket Bravo port trim cylinder replacements for 98703A26 / 8M0132609
- F.S.P / aftermarket Bravo I, II, III trim ram replacements where matched by side
- H2O / aftermarket Bravo trim cylinder equivalents where matched to port 8M0132609
- Replace port and starboard as a pair where both rams show corrosion or uneven movement
📦 Condition
- Genuine Quicksilver part
- Brand new
- Supplied in original or equivalent packaging
