🔧 Product Description

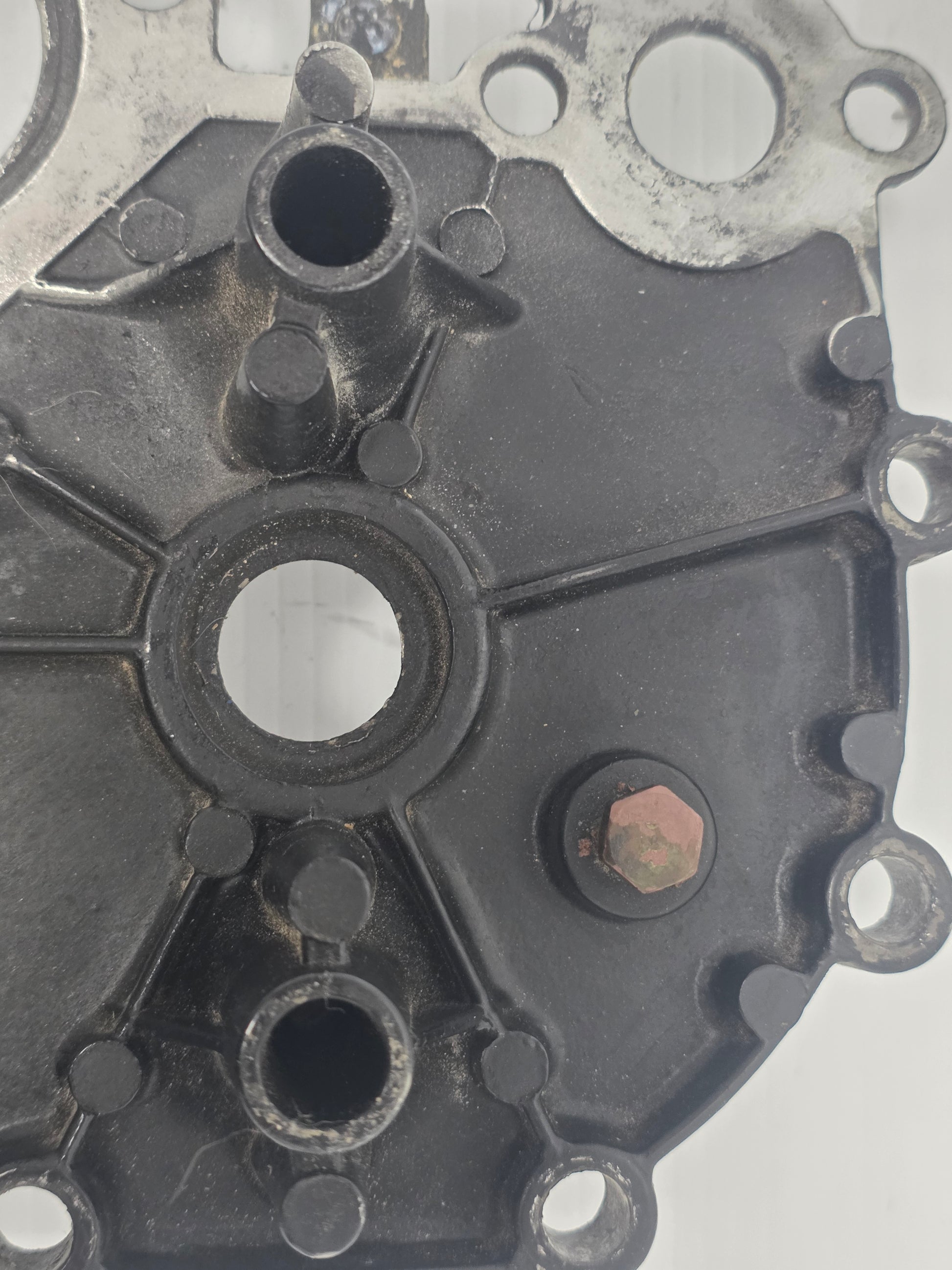

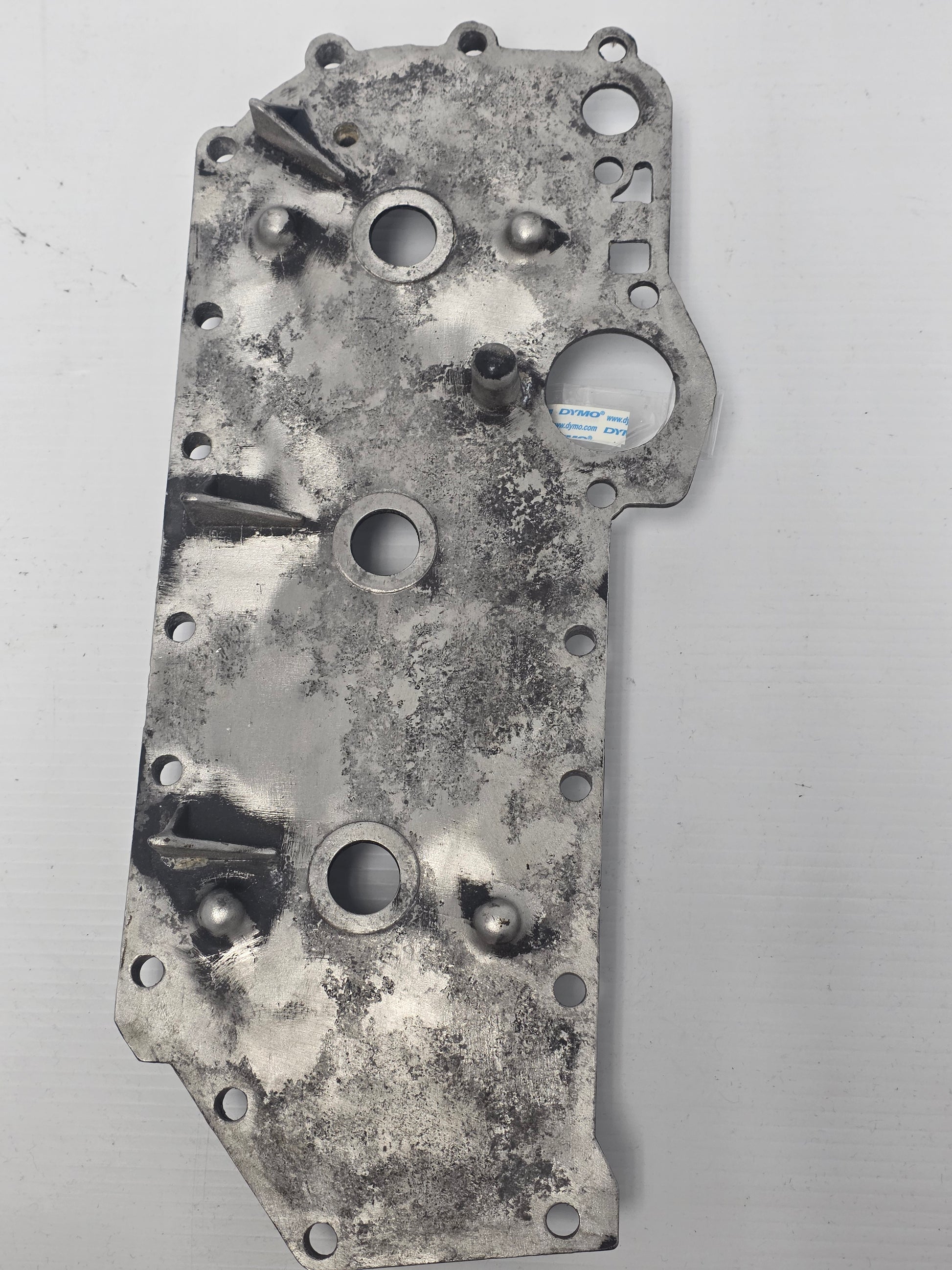

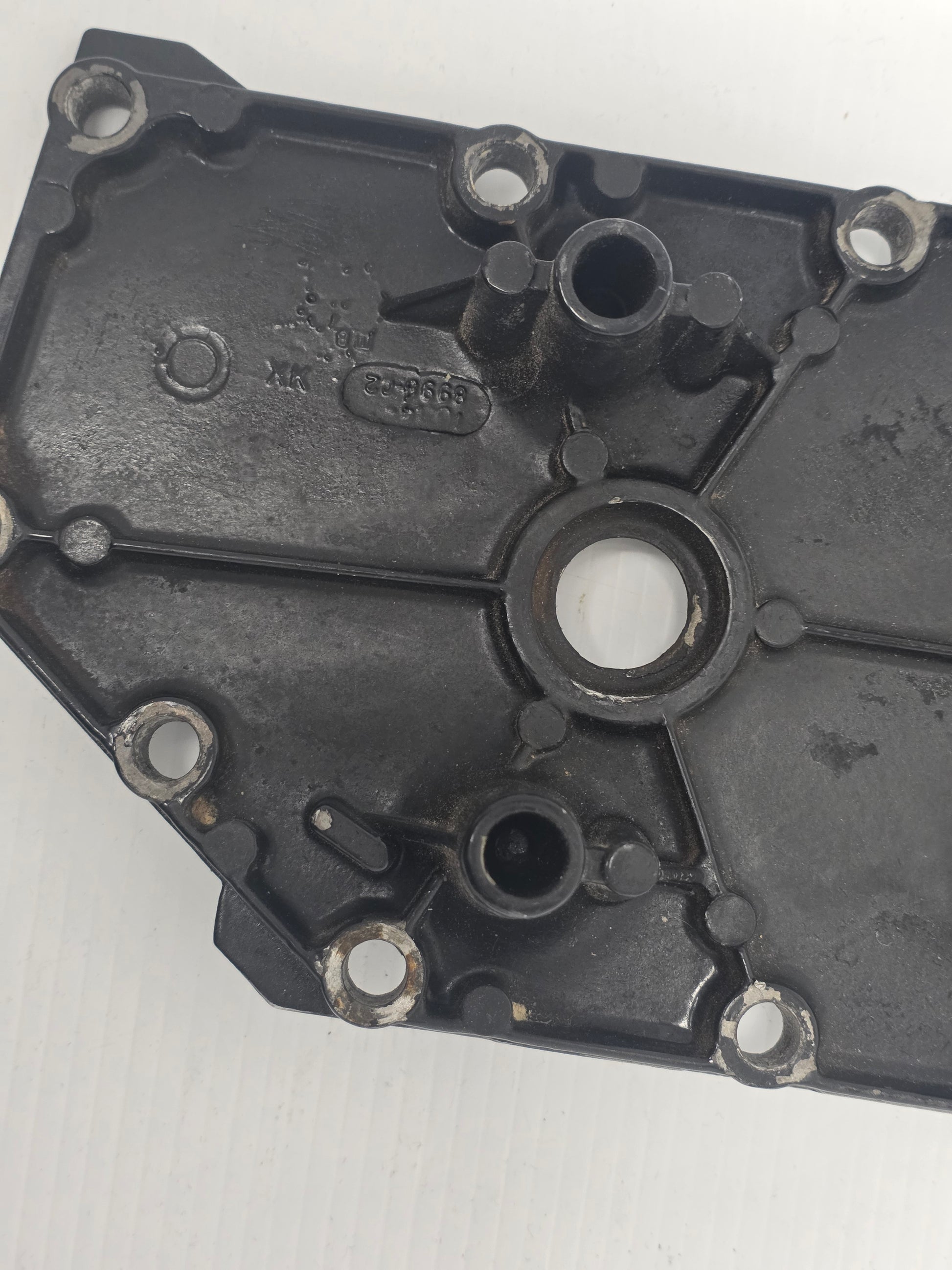

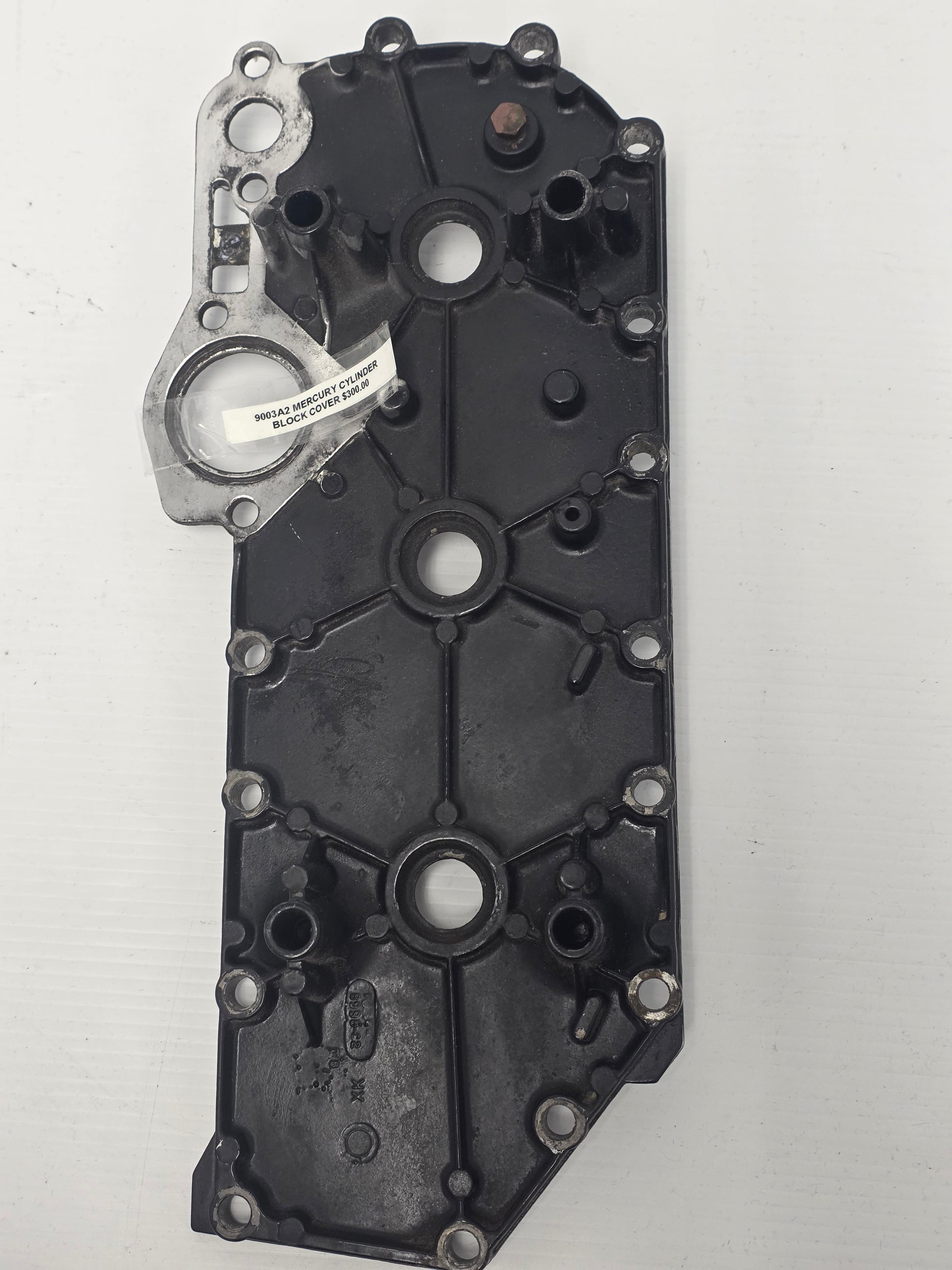

Genuine Mercury Three-Cylinder Cylinder Block Cover Assembly - Part Number: 9003A2
A genuine used Mercury cylinder-block cover for selected 65 Jet, 75HP, 80HP and 90HP three-cylinder two-stroke outboards.
The cover seals the rear water-jacket section of the cylinder block and directs cooling water around the cylinders.
⚙️ Key Features
- Genuine used Mercury cylinder-block cover
- Correct assembly part number 1034-9003A2
- Supersedes earlier references 9003A1 and 9003T
- Fits selected three-cylinder two-stroke engines
- Original cast-aluminium cooling-jacket component
🚤 Compatibility
Commonly used on
- Mercury and Mariner inline three-cylinder cylinder blocks
- Cooling-water jacket cover assemblies
Typically suits
- Engine models:
- Mercury 65 Jet - USA serial 0D283222 through 0G760299
- Mercury 65 Jet - Belgium serial 9793577 through 0P016999
- Mercury / Mariner 75HP three-cylinder - USA serial 0D283222 through 0G760299
- Mercury / Mariner 75HP - Belgium serial 9793577 through 0P016999
- Mercury / Mariner 80HP three-cylinder - serial 0B240451 through 0C221999
- Mercury / Mariner 90HP three-cylinder - USA serial 0D283222 through 0G760299
- Mercury / Mariner 90HP - Belgium serial 9793577 through 0P016999
- HP Range: 65 Jet / 75HP / 80HP / 90HP
- Engine Type: Mercury / Mariner inline three-cylinder two-stroke outboard
- Year Range: Approximately late 1980s through the 1990s
🔌 Function
The cover seals the cylinder-block cooling-water cavity and directs water around the cylinder walls before it exits through the thermostat and exhaust cooling passages.
⚠️ Common Signs of Failure
- Cooling water leaks from the cover gasket
- Cover is warped or cracked
- Internal corrosion restricts water flow
- Mounting-bolt threads are damaged
- Engine overheats because cooling passages are blocked
- Salt deposits build up behind the cover
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 1034-9003A2 → Supersedes 9003A1
- 9003A1 → Supersedes 9003T
- 9003T earlier cylinder-block cover reference
OEM / Related Numbers
- 1034-9003A2
- 10349003A2
- 9003A2
- 9003A1
- 9003T
- Related cylinder-block cover gasket as specified by serial range
- 8947T55 related three-cylinder cylinder block
Aftermarket / Verified Equivalents
- Aftermarket cylinder-block cover gaskets are available for selected serial groups
- No aftermarket equivalent for the complete cover assembly
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
