90101-10041-00 Yamaha Engine Bolt Assembly | Genuine Used Part

🔧 Product Description

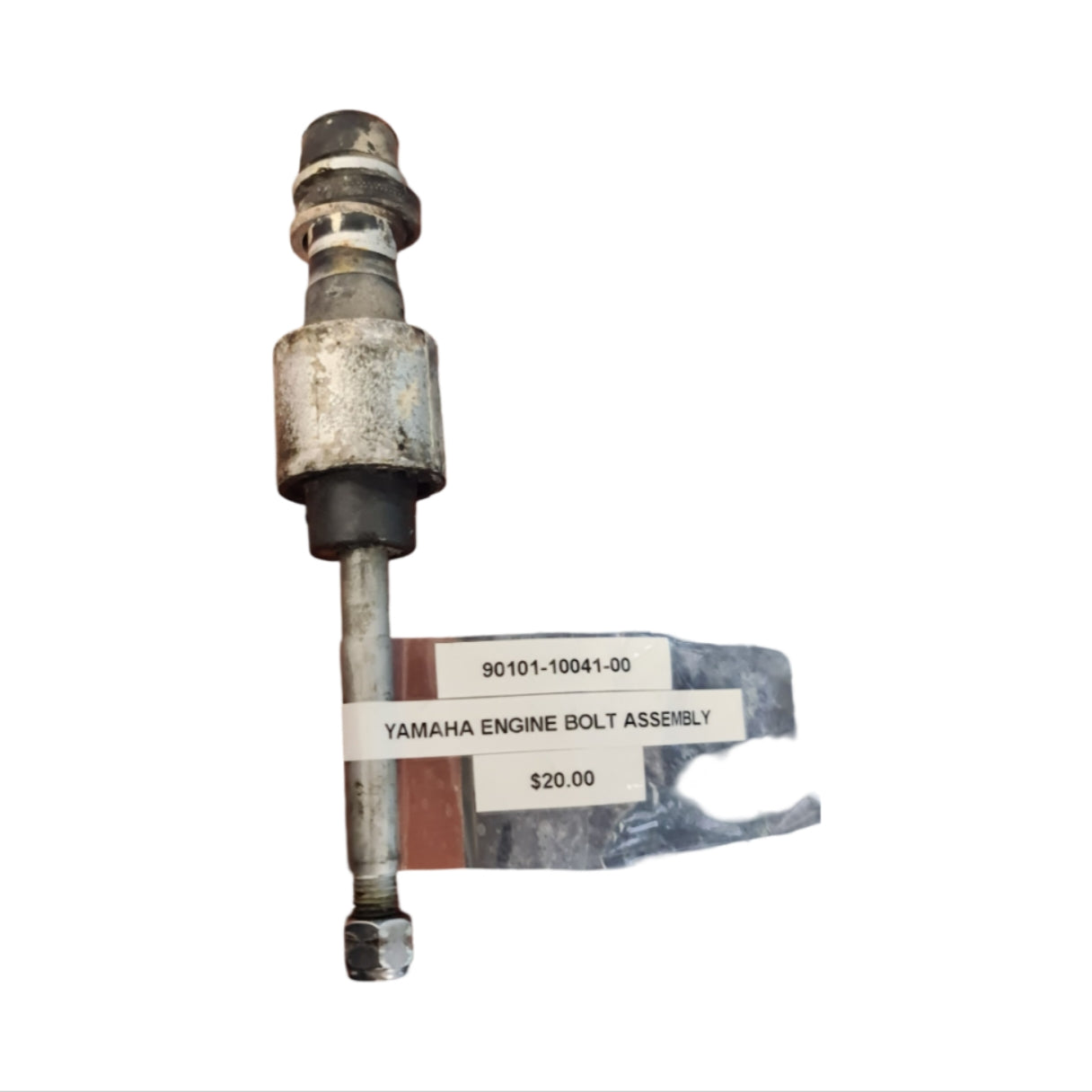

Genuine Yamaha 60HP-90HP Clamp-Bracket Mounting Bolt - Part Number: 90101-10041-00

A genuine used Yamaha mounting bolt used in selected clamp-bracket and transom-bracket assemblies.

The bolt secures major bracket components and is normally used in pairs where specified. Its shoulder, thread length and strength are matched to the Yamaha mounting assembly and should not be replaced with an unverified general-purpose fastener.

⚙️ Key Features

• Genuine used Yamaha bracket bolt
• Correct OEM part number 90101-10041-00
• Supersedes 90101-10M49-00
• Used in selected 60HP-90HP clamp-bracket assemblies
• OEM shoulder length and tensile specification

🚤 Compatibility

Known catalogue applications include

• 1988 90ETLG and 90ETLG-JD
• 1989 60FETO and 70BET
• 1990 70ETLD and 70ETLDA
• 1992 C85TLRQ
• 1994 and 1996 80AETO / 90AET model groups
• 1997 P60TLHV and E75MLHV
• 2004 60TLRC
• 2009-2010 70TLR and 90TLR
• International 60FETO, 60FETOL, 70BETO and 90AETO groups through later production
• HP Range: Approximately 60HP-90HP
• Engine Type: Yamaha two-stroke outboard
• Fitment Note: Verify bolt position, quantity and bracket diagram by complete model code

🔌 Function

The bolt clamps the specified transom, swivel or mounting-bracket components together while allowing the assembly to retain its designed alignment and strength.

⚠️ Common Signs of Failure

• Threads are stretched or damaged
• Bolt is bent
• Shoulder is worn
• Corrosion reduces bolt diameter
• Bracket develops movement
• Nut will not torque correctly
• Bolt head or shank shows impact damage

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 90101-10041-00 → Supersedes 90101-10M49-00

OEM / Related Numbers

• 90101-10041-00
• 901011004100
• 90101-10M49-00
• Related clamp bracket, swivel bracket, washers and locknuts
• Usually quantity two where shown in the bracket diagram

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Inspect carefully before reusing a structural mounting bolt
• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
