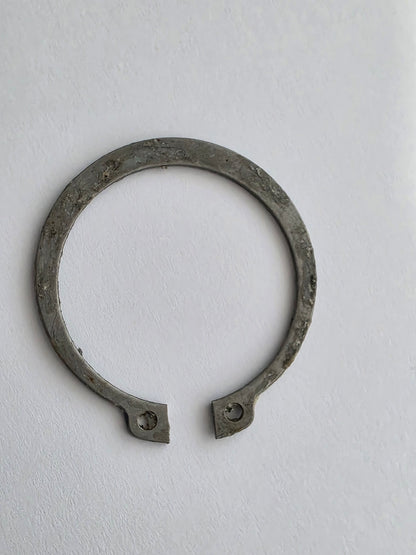

90651-ZV5-000 Honda Circlip | Genuine Used Part

🔧 Product Description

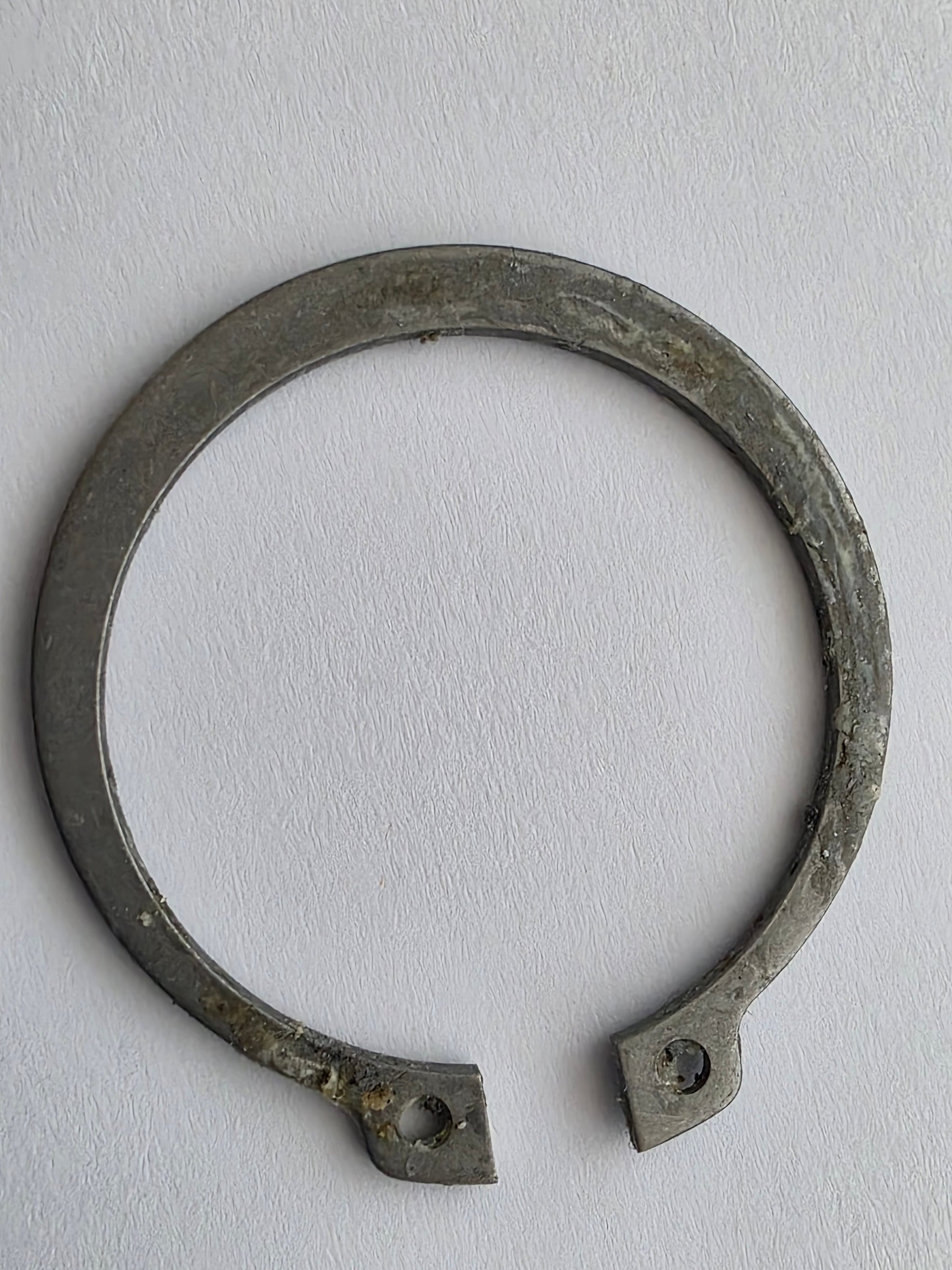

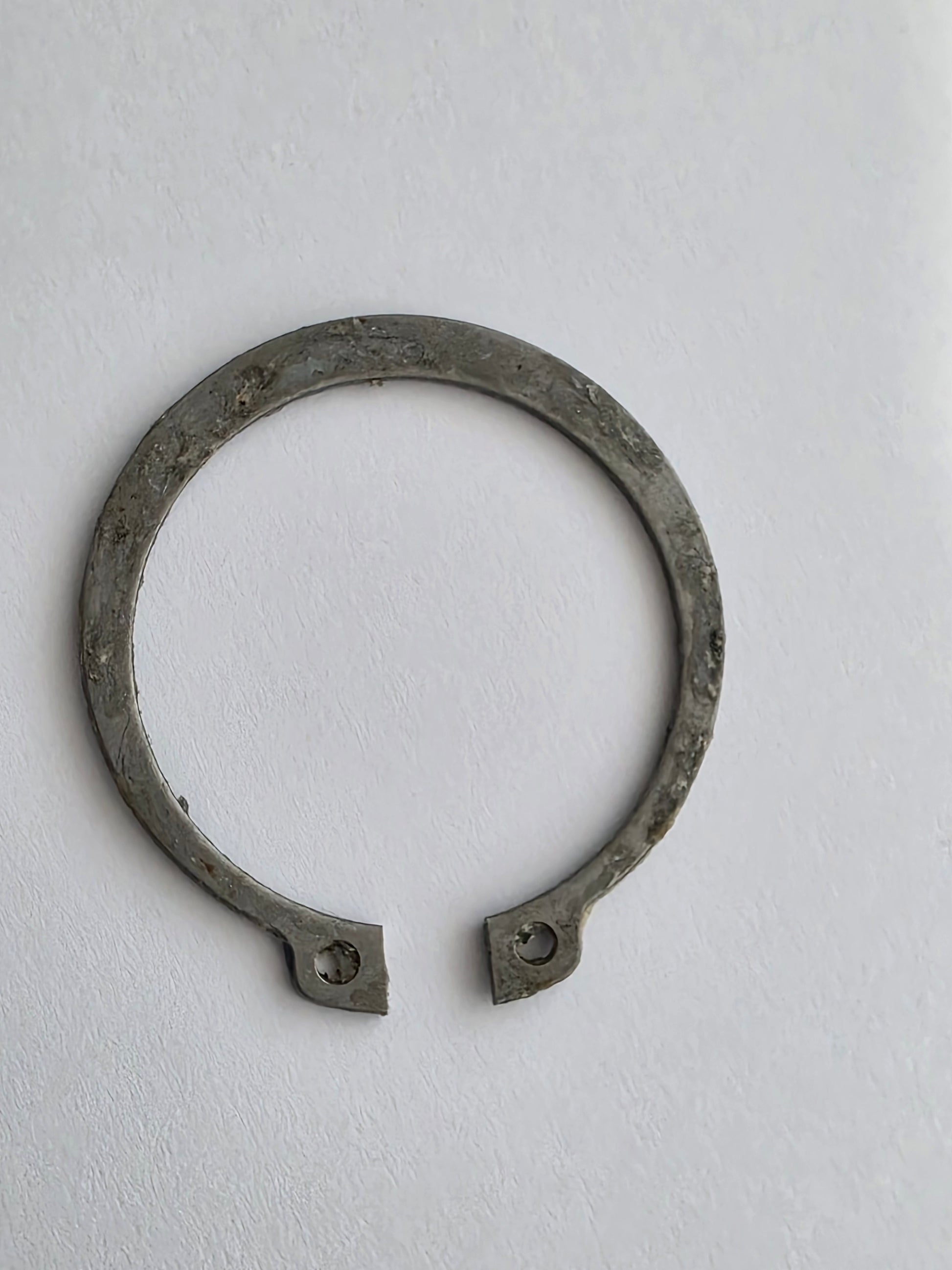

Genuine Honda 39 mm Swivel-Case Circlip - Part Number: 90651-ZV5-000

A genuine Honda 39 mm external circlip used to retain components within the swivel-case and stern-bracket assemblies of numerous Honda outboards.

The clip fits a machined shaft groove and retains the associated thrust washer, wave washer, seal or swivel component. It appears across small, mid-range and large Honda outboard platforms.

⚙️ Key Features

• Genuine Honda external circlip
• Correct part number 90651-ZV5-000
• Nominal 39 mm size
• Used in swivel-case and stern-bracket assemblies
• Spring-steel retaining-ring construction
• Broad Honda outboard application

🚤 Compatibility

Documented across selected

• Honda BF25 and BF30
• Honda BF40A and BF50A
• Honda BF75A, including approximately 1997-2006 applications
• Honda BF90
• Honda BF115 and BF130 stern-bracket families
• Honda BF135 and BF150
• Honda BF175, BF200 and BF225
• Honda BF250
• Standard and counter-rotation models whose swivel-case diagram specifies 90651-ZV5-000
• HP Range: Approximately 25HP - 250HP
• Engine Type: Honda four-stroke outboard
• Fitment Requirement: Confirm groove diameter and retaining location

🔌 Function

The circlip locks the associated swivel-case components onto the shaft and prevents axial movement while allowing the bracket or steering assembly to rotate normally.

⚠️ Common Signs of Failure

• Clip is stretched or distorted

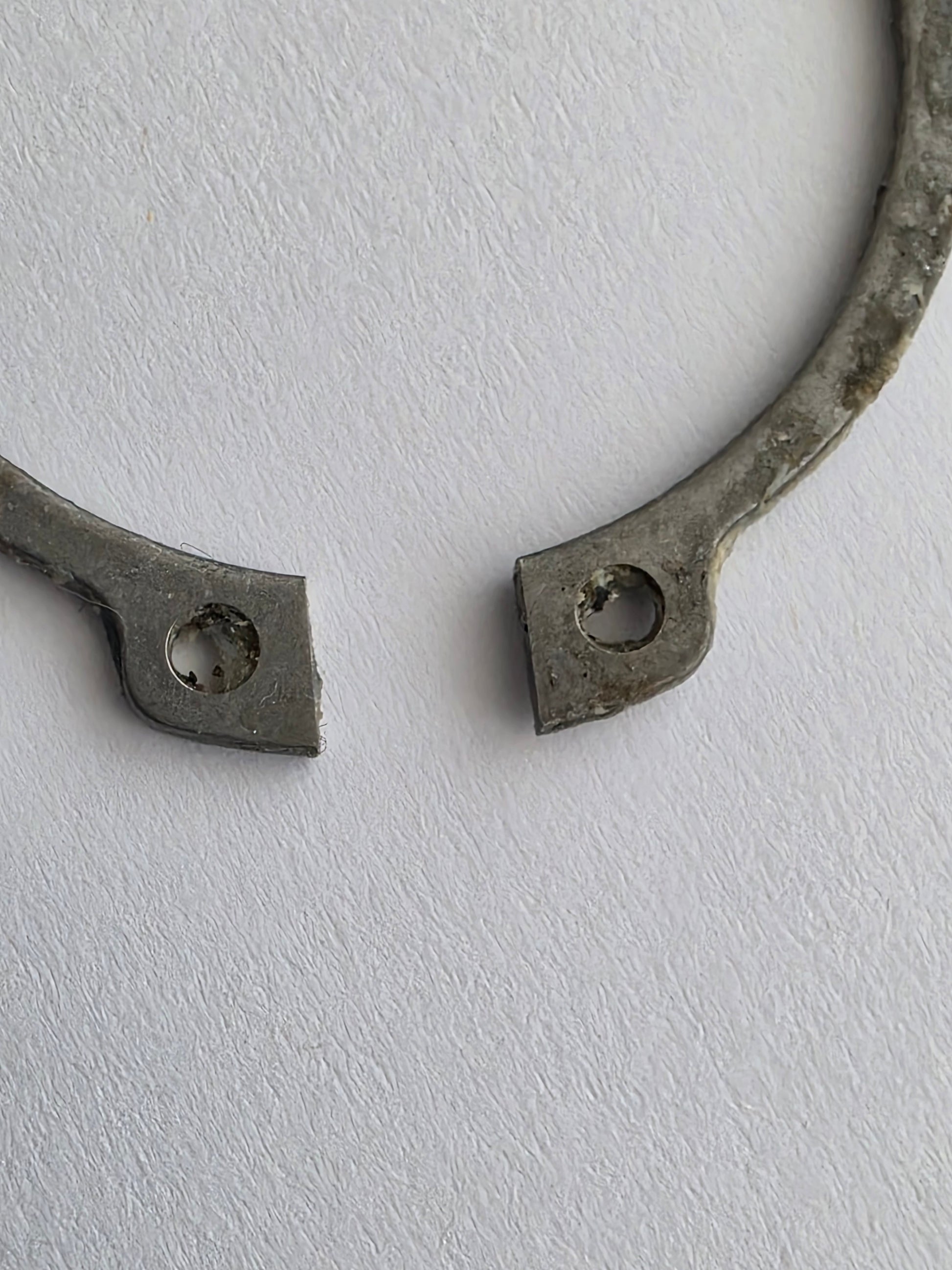

• Ends or retaining holes are damaged
• Corrosion reduces spring tension
• Clip will not seat fully in the groove
• Swivel components develop axial movement

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 90651-ZV5-000 current documented Honda circlip reference
• No direct supersession confirmed

OEM / Related Numbers

• 90651-ZV5-000
• 90501-ZV5-000 related 40 mm wave washer
• 90504-ZV5-000 related 34 mm thrust washer
• 91256-ZV5-003 related 39.5 x 52 x 6 oil seal
• 90951-ZV7-010 related grease nipple
• Related swivel shaft, bushings and stern-bracket hardware

Aftermarket / Verified Equivalents

• Quality 39 mm external circlip may be suitable when groove diameter, thickness and material match
• DIN 471 39 mm retaining rings are a potential dimensional equivalent but must be measured before use
• Stainless or plated marine-grade circlip only when strength and groove fit meet the Honda specification
• Specialist Honda aftermarket swivel-case service kits may include a compatible retaining ring

📦 Condition

• Genuine used part
• In good working condition unless otherwise stated
• Retaining clips are normally best replaced rather than reused
• Confirm full seating in the shaft groove
