🔧 Product Description

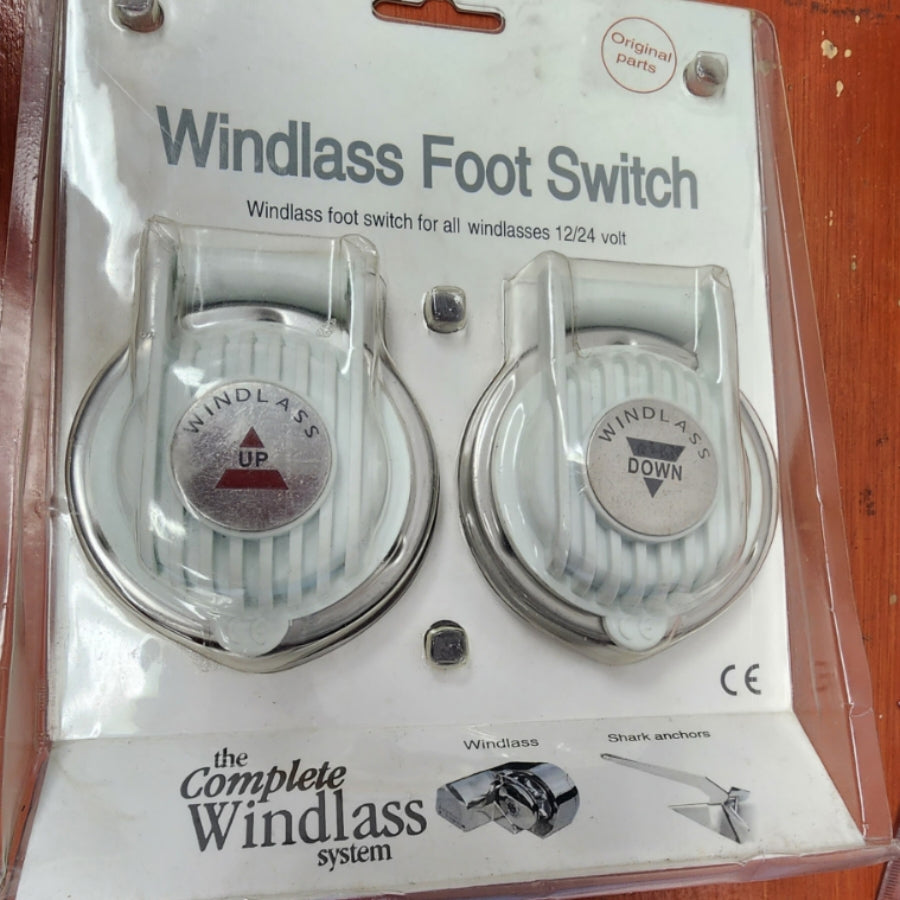

Anchorlift Windlass Up/Down Deck Foot Switch Pair - White - Part Number: 90900W

A matched pair of deck-mounted momentary foot switches for controlling anchor-windlass raise and lower functions. Each switch has a protective white cover that helps prevent accidental operation and shields the operating surface from direct exposure when closed.

⚙️ Key Features

• Pair provides separate UP and DOWN windlass commands
• Protective white hinged covers
• Momentary foot operation leaves both hands free for rode control
• Designed for deck mounting in a convenient anchoring position
• Suitable for controlling the windlass solenoid or reversing contactor

📏 Specifications

• Quantity: 2 switches
• Functions: One UP switch and one DOWN switch
• Cover colour: White
• Electrical configuration must match the installed windlass control circuit

🔄 Cross Reference & Comparable Options

• Same switch family with black covers: Anchorlift 90900B
• Comparable products include Maxwell, Lewmar, Quick and Muir covered foot switches; wiring and current ratings are not universally interchangeable

🛠️ Installation & Wiring

• Install on a rigid deck surface where the operator can see the anchor and rode
• Seal all deck penetrations and cable entries against water ingress
• Wire through the windlass control solenoid/contactor unless the system manual expressly specifies otherwise
• Use correctly rated cable, circuit protection and waterproof terminals
• Keep switches clear of loose chain, rope and standing water

🔌 Function

Sends a momentary control signal to the windlass reversing solenoid or contactor, commanding the motor to retrieve or deploy the anchor while the selected switch is pressed.

Common signs of failure

• Windlass operates in one direction but not the other
• Intermittent response when the switch is pressed
• Cracked cover or water ingress around the switch body
• Corroded terminals, loose wiring or excessive voltage drop
• Switch sticks or remains electrically engaged after pressure is released

📦 Condition

• Brand new
• Supplied as one matched pair of white-covered UP/DOWN foot switches
• Supplied in original or equivalent packaging
