93101-25M57 Yamaha Oil Seal (62x) | Genuine OEM Yamaha Outboard Part

93101-25M57 Yamaha Oil Seal (62x) | Genuine OEM Yamaha Outboard Part

$22.00 AUD
$22.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

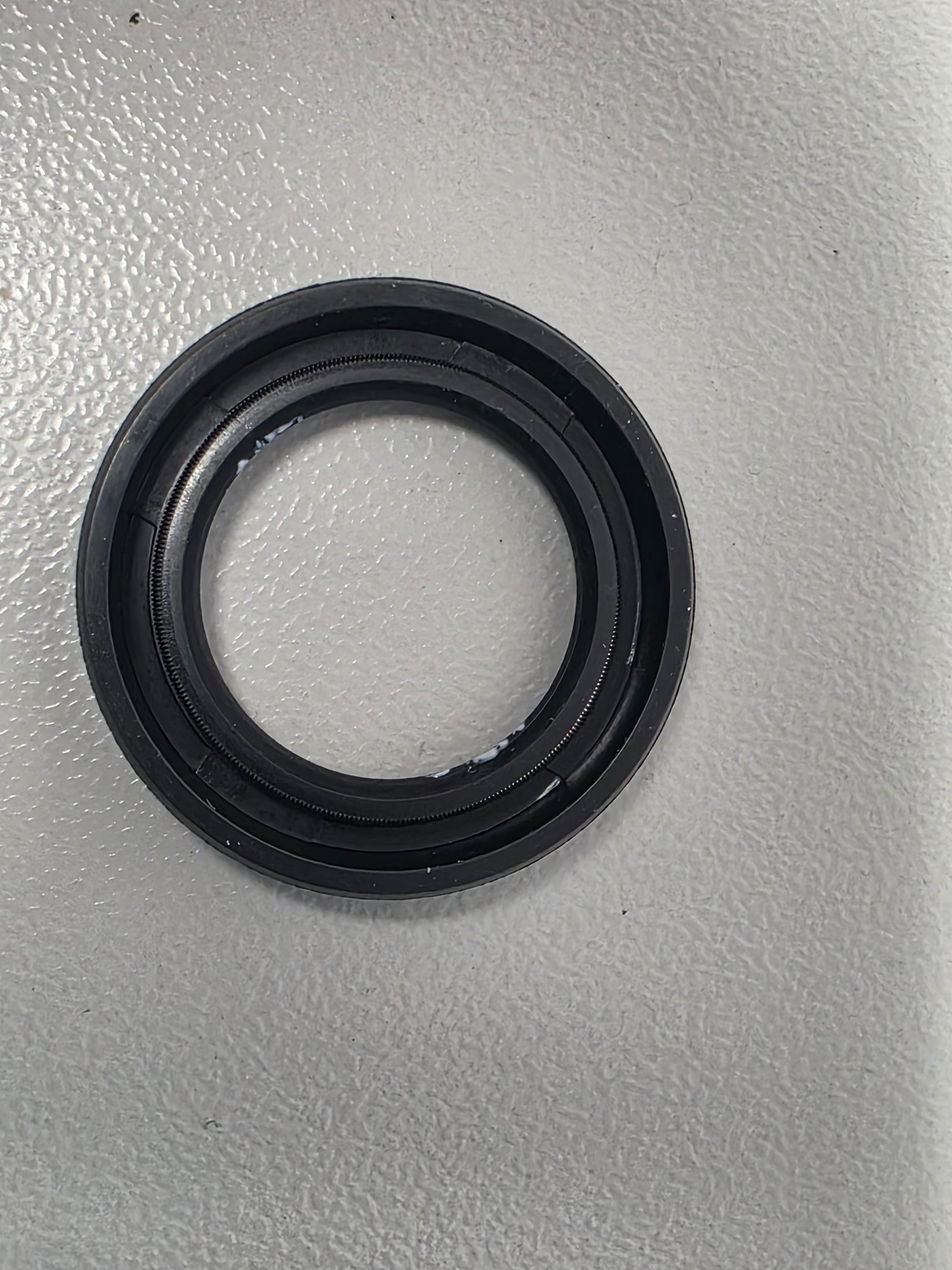

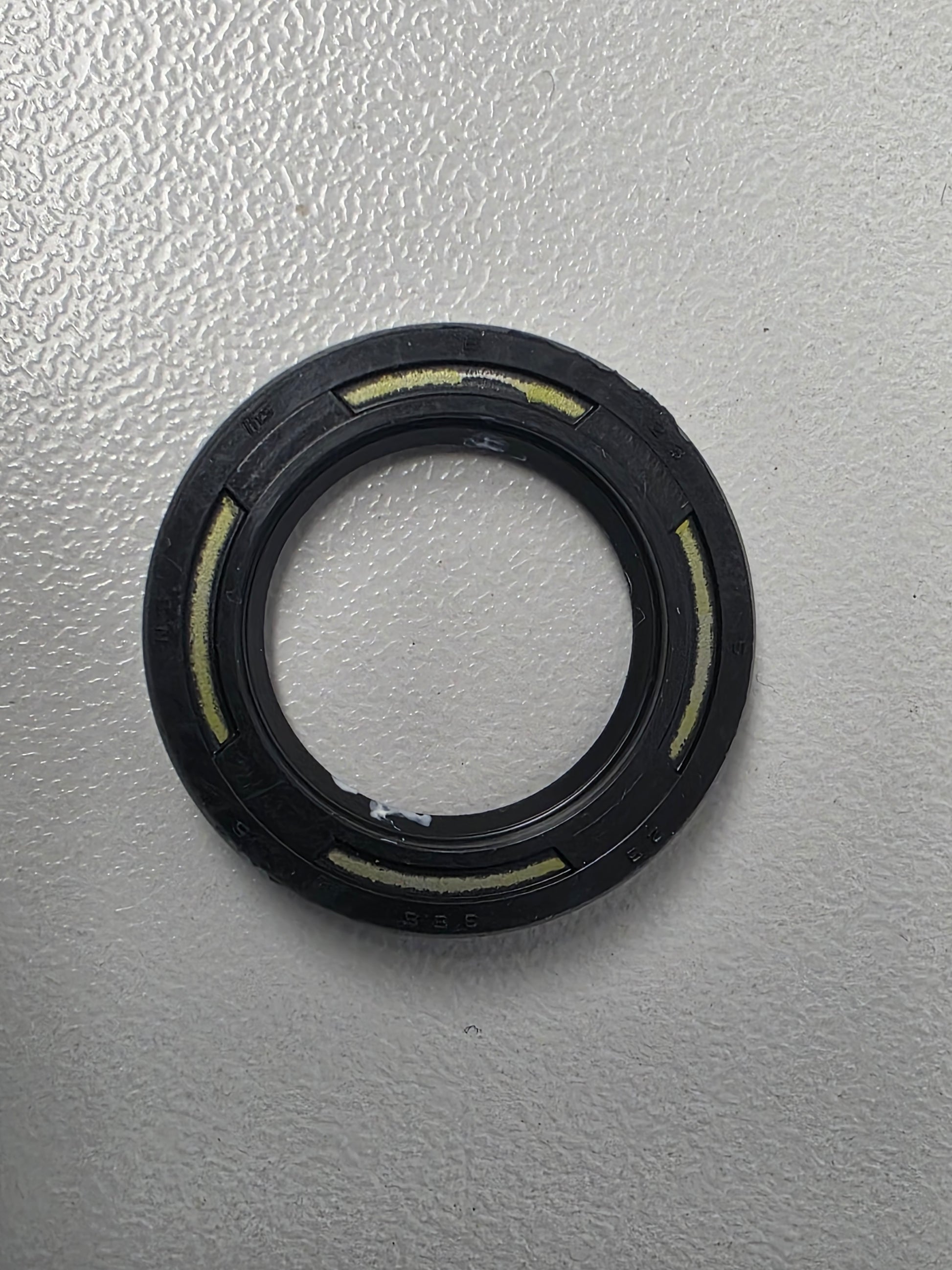

Genuine Yamaha Driveshaft Oil Seal 23mm x 35.5mm x 6mm - Part Number: 93101-25M57

A genuine Yamaha S-type oil seal fitted around the lower-unit driveshaft on selected 40HP to 60HP outboards.

The seal is positioned beneath the water-pump assembly and protects the gearcase from cooling-water intrusion while retaining the lower-unit lubricant.

⚙️ Key Features

  • Genuine Yamaha OEM driveshaft oil seal
  • Correct Yamaha part number 93101-25M57
  • Approximate dimensions: 23mm inside diameter x 35mm to 35.5mm outside diameter x 6mm width
  • Used on selected two-stroke and four-stroke lower units
  • GLM and Recmar replacement seals available

🚤 Compatibility

Commonly used on

  • Yamaha mid-range lower-unit driveshaft seal carriers

Typically suits

  • Engine models:
  • Yamaha C40 two-stroke
  • Yamaha 40HP and 40V two-stroke
  • Yamaha C50 and 50HP two-stroke
  • Yamaha F40A, F40D and F40H four-stroke
  • Yamaha F50A, F50D, F50F and F50H four-stroke
  • Yamaha T50 high-thrust four-stroke
  • Yamaha F60A, F60B, F60C and F60F four-stroke
  • Yamaha T60 high-thrust four-stroke
  • HP Range: 40HP - 60HP
  • Engine Type: Yamaha two-stroke and four-stroke outboard
  • Year Range: Approximately 1996 - 2019, dependent on gearcase

🔌 Function

The seal prevents cooling water from entering the gearcase around the driveshaft and stops gear lubricant from leaking into the water-pump cavity.

⚠️ Common Signs of Failure

  • Milky or emulsified lower-unit lubricant
  • Oil collecting beneath the water-pump base
  • Gearcase will not hold pressure or vacuum
  • Seal lip is cut, hardened or distorted
  • Driveshaft has a wear groove at the sealing surface

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 93101-25M57 current Yamaha OEM service reference
  • 93101-22M00 related earlier driveshaft-seal reference

OEM / Related Numbers

  • 93101-25M57
  • 93101-25M57-00
  • 9310125M5700
  • 93101-22M00

Aftermarket / Verified Equivalents

  • GLM: 85224
  • Recmar: REC93101-25M57
  • Direct replacement seal: 23mm x 35.5mm x 6mm

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
