93210-10M74 Yamaha O-Ring | Genuine OEM Yamaha Outboard Part

93210-10M74 Yamaha O-Ring | Genuine OEM Yamaha Outboard Part

$4.55 AUD
$4.55 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

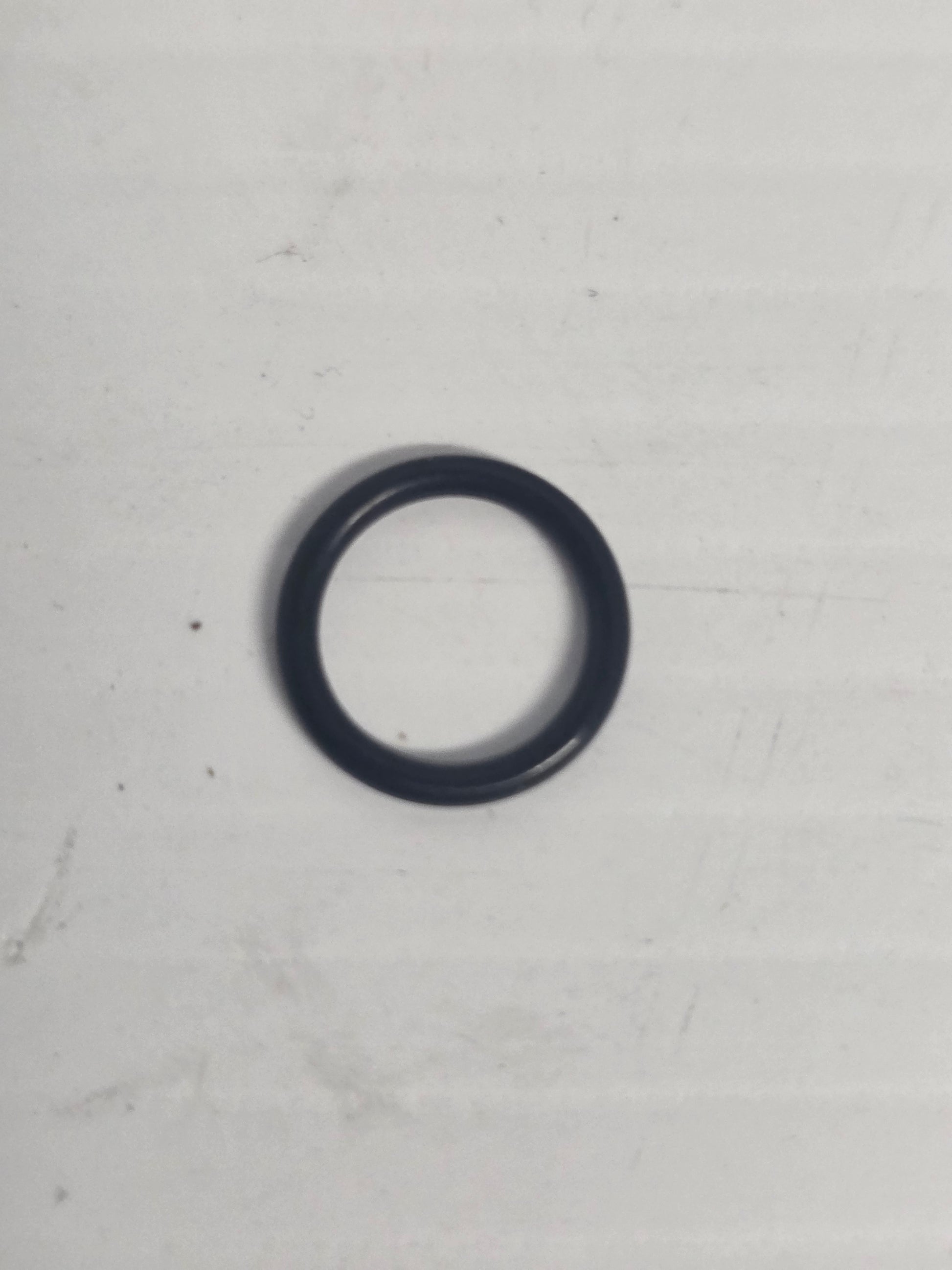

Genuine Yamaha Power Trim Manual Release Valve O-Ring - Part Number: 93210-10M74

A genuine Yamaha hydraulic O-ring used within selected power trim and tilt manual-release valve assemblies.

The O-ring seals the manual-release adaptor, valve seat or bypass passage so the hydraulic system can retain pressure when the release screw is closed.

⚙️ Key Features

  • Genuine Yamaha OEM hydraulic O-ring
  • Correct Yamaha part number 93210-10M74
  • Used around the manual-release valve and adaptor
  • Fuel- and hydraulic-fluid-resistant rubber construction
  • Compatible with numerous Yamaha trim and tilt systems

🚤 Compatibility

Commonly used on

  • Yamaha manual-release and hydraulic bypass-valve assemblies

Typically suits

  • Engine models:
  • Yamaha 40HP, 50HP, 60HP and 70HP power-trim systems
  • Yamaha 75HP, 80HP, 85HP and 90HP
  • Yamaha 115HP and 130HP
  • Yamaha 150HP, 175HP and 200HP two-stroke
  • Yamaha Z150, Z175 and Z200 HPDI
  • Yamaha F115 and F150 four-stroke
  • Yamaha F200, F225 and F250 four-stroke
  • Yamaha 70TLR and 90ETL trim assemblies
  • Yamaha 150TXRC and related 64E-series hydraulic units
  • HP Range: Commonly 40HP - 250HP
  • Engine Type: Yamaha two-stroke, HPDI and four-stroke outboard power trim
  • Year Range: Approximately 1990 - 2024, dependent on valve-body design

🔌 Function

The O-ring seals the manual hydraulic bypass valve so trim pressure is retained during normal powered operation.

⚠️ Common Signs of Failure

  • Engine slowly lowers after being trimmed
  • Hydraulic oil leaks near the manual-release screw
  • Trim unit bypasses even when the screw is closed
  • O-ring becomes flattened, cut or swollen
  • Manual-release valve will not reseal after operation

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 93210-10M74 current Yamaha OEM service reference

OEM / Related Numbers

  • 93210-10M74
  • 93210-10M74-00
  • 9321010M7400
  • 6H1-43845-01 related manual-release screw
  • 6H1-43847-00 related manual-valve seat
  • 6H1-43854-00 related manual-release spring
  • 64E-4388J-00 related hydraulic plug

Aftermarket / Verified Equivalents

  • Direct replacement hydraulic O-ring: 93210-10M74
  • Included in selected aftermarket power trim valve-body seal kits

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
