947776 O-Ring | Genuine Volvo Penta Part

🔧 Product Description

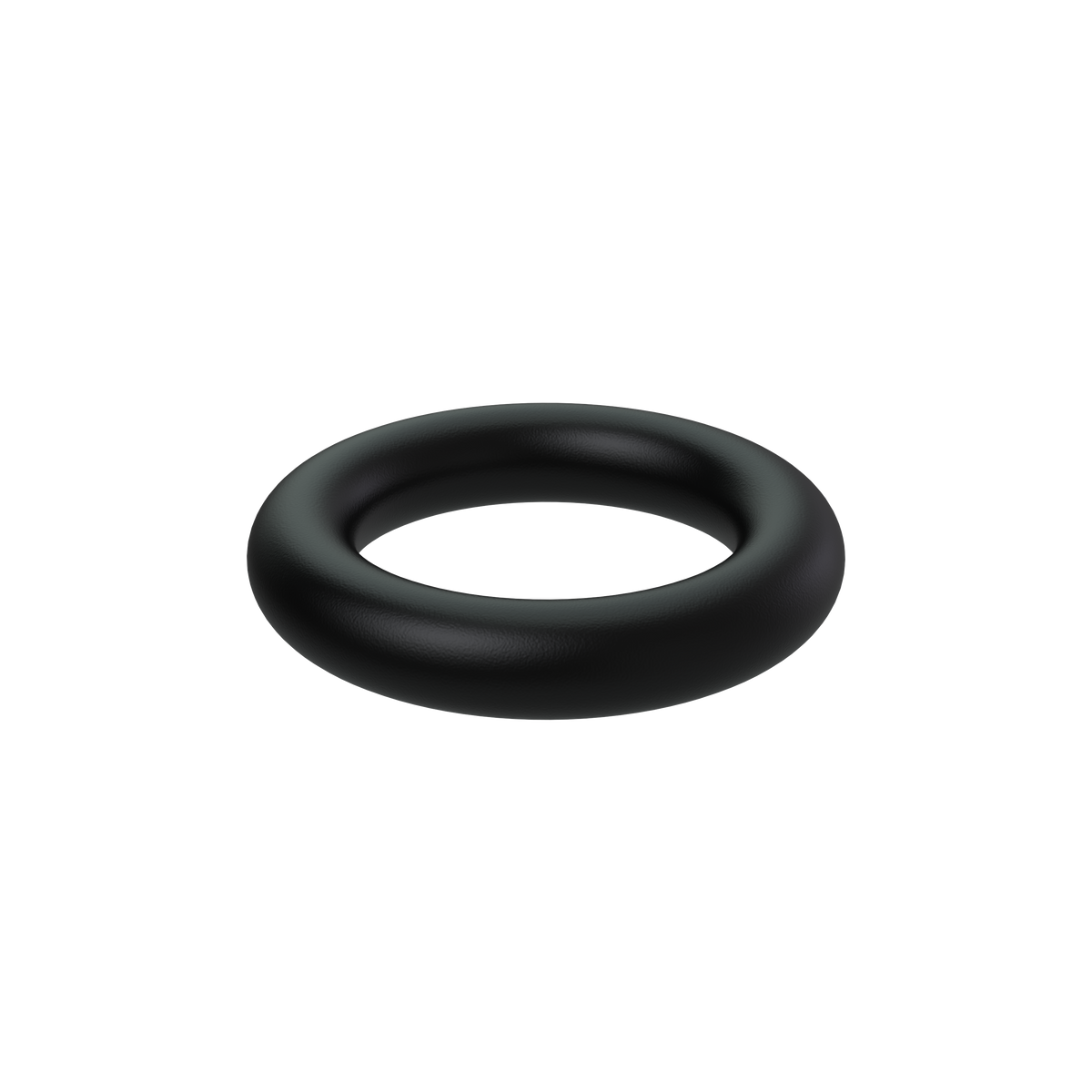

Genuine Volvo Penta o-ring weighing 0.002 kg and listed for 141 applications across the D, TD and TAD series and IPS installations. It is also supplied inside the repair kit for the lock valve, so check whether the kit already carries it before ordering loose.

🚤 Compatibility

• Engine Family: D, TD, TAD, IPS
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Also supplied in the repair kit for the lock valve
• 0.002 kg
• 141 applications across D, TD and TAD series engines and IPS installations

📋 Kit Contents

• Included in repair kit for lock valve., (925053)

🔌 Function

Seals a hydraulic joint in the lock valve, holding pressure so the circuit stays where it is set.

⚠️ Common Signs of Failure

• Hydraulic weep or a wet film around the valve
• Circuit creeping or drifting away from its set position
• Ring flattened, hardened or nicked on removal
• Fluid level falling with no obvious external leak
• Seal swollen or softened by the wrong fluid

🛠️ Service Notes

• If the lock valve is being overhauled, order the repair kit rather than the single ring
• Renew every seal in the valve at once — replacing one and leaving the rest usually means a second strip-down
• Check the bore and groove for scoring before refitting

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 925053 referenced in the part notes

Aftermarket / Verified Equivalents

• SLP: OR-776

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta TD120A, TD120AG, TD120AG PP, TD120AK
• Volvo Penta D100A, D100B
• Volvo Penta D120A, D120AK
• Volvo Penta D13C8-B MP, D13C4-B MP
• Volvo Penta TD100A, TD100AG
• Volvo Penta D70B
• Volvo Penta IPS40-A
• Volvo Penta TAD720VE
• Volvo Penta TAD721VE
• Volvo Penta TD70B
