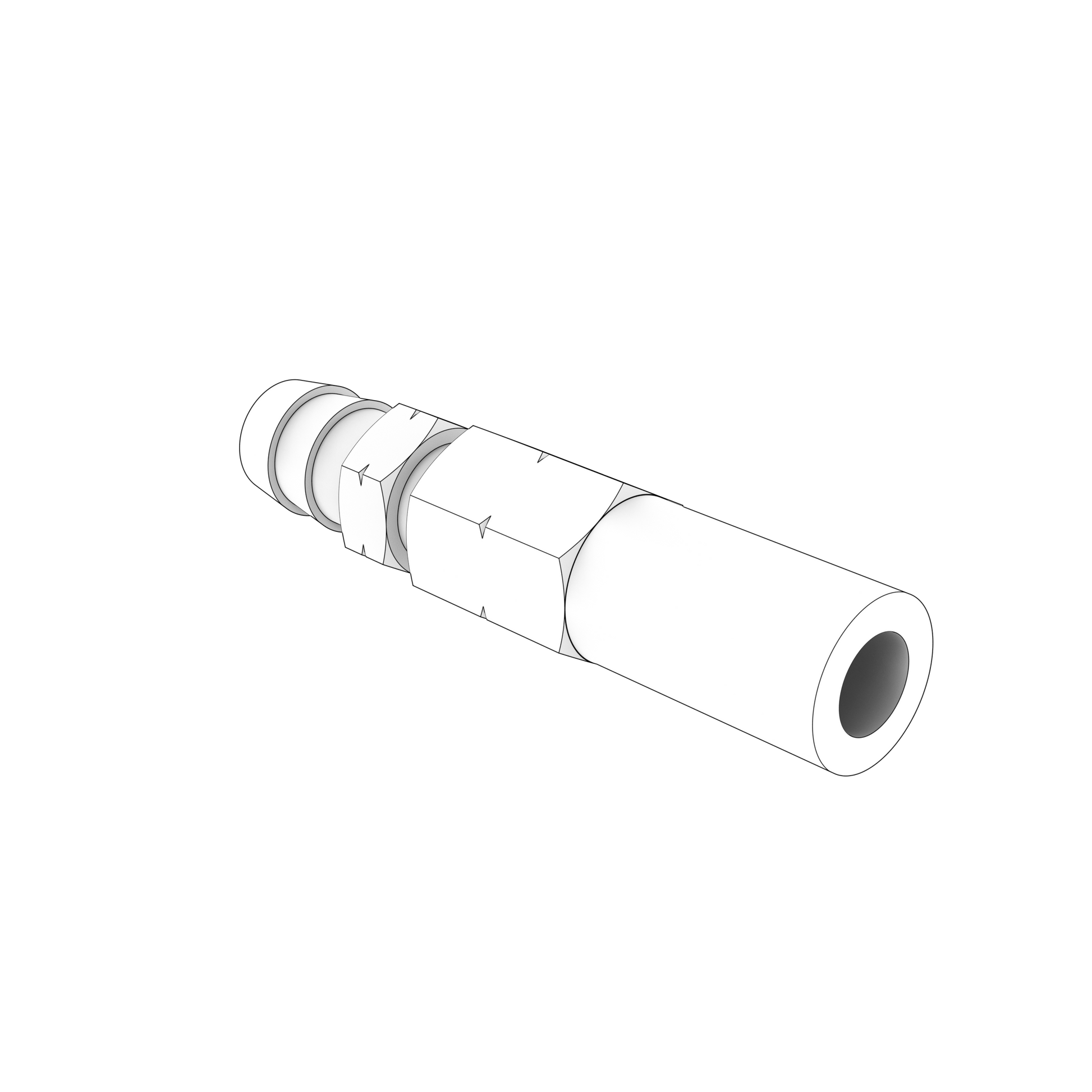

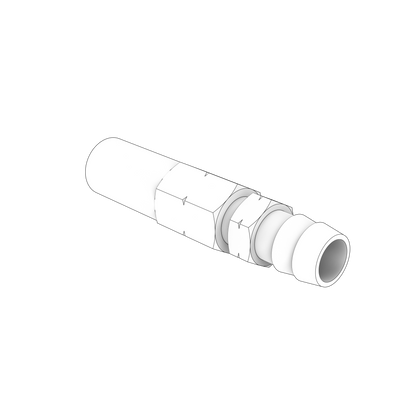

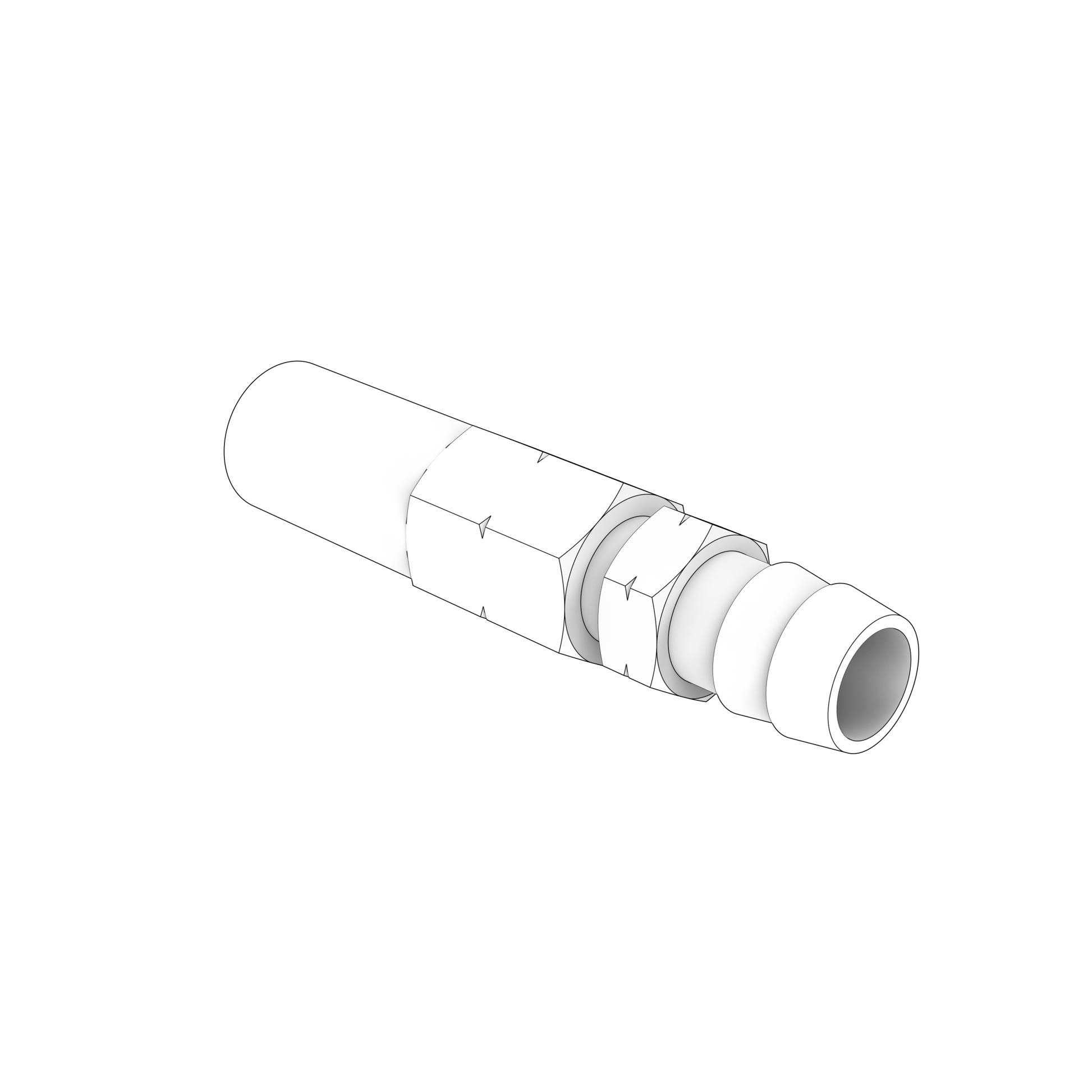

947893 Shut-Off Cock | Genuine Volvo Penta Part
947893 Shut-Off Cock | Genuine Volvo Penta Part
Couldn't load pickup availability
In stock — Australian warehouse
Typically reaches our store in 3–5 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description
Genuine Volvo Penta shut-off cock, weighing 0.052 kg and listed for 219 applications across the D, MD, TMD, TD, AD and TAMD engine families. It consolidates four earlier numbers - 3826916, 946121, 969458 and 966723 - so an older parts list may still send you to any of them; some of those numbers were catalogued at the time as a drain cock and as a nipple.
🚤 Compatibility
- Engine Family: D, MD, TMD, TD, AD, TAMD, AQAD, TWD, TID, AQD, DP, DPX, TAD, SP
- HP Range: 110-190 HP
Full model list at the end of this description.
⚙️ Key Features
- 0.052 kg
- 219 applications across six engine families
- Replaces 3826916, 946121, 969458 and 966723
- Superseded numbers were listed earlier as a drain cock and a nipple
- L=66mm (Volvo assembly listing)
- Also supersedes Volvo part number 942021
🔌 Function
Opens and closes a drain or bleed point by hand, letting fluid be drawn off or a line isolated without breaking a union.
⚠️ Common Signs of Failure
- Weeping or dripping from the spindle even with the cock closed
- Handle stiff, seized, or turning without shutting the flow off
- Body furred, corroded or scaled up so the bore no longer clears
- Damaged thread at the union, so it will not pull up tight
🛠️ Service Notes
- The late-type shut-off cock 947894 covers a different set of engines - check which number your parts list calls for rather than matching on appearance
- Renew the sealing washer at the union when the cock is refitted
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 947893 → Supersedes 3826916
OEM / Related Numbers
- 969458 earlier number superseded by this part
- 966723 earlier number superseded by this part
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
🔎 Full Model Compatibility
Typically suits:
- Volvo Penta 2003, 2003R, 2003R SOLAS, 740A, 2003TB, 2003TB SOLAS, 290A, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 2002, 2001R
- Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-160I-C, D3-190I-B, D3-190I-C, D3-130I-B, D3-160I-B
- Volvo Penta AD41P-B, AD41B, AD41D, AD41L-A, AD41P-A, AD41, AD41A, AD41BJ
- Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D
- Volvo Penta TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41M-A, TAMD41P-A, TAMD41P, TAMD41A
- Volvo Penta AD31, AD31B, AD31D-A, AD31L-A, AD31XD
- Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
- Volvo Penta TD61A, TD61ACE, TD61AG, TD61AP, TD61AW
- Volvo Penta TD71A, TD71ACE, TD71AG, TD71AP, TD71AW
- Volvo Penta D41, D41B, D41D, D41L-A
- Volvo Penta DP-A, DP-A1, DP-B, DP-B1
- Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
- Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
- Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
- Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
- Volvo Penta TMD41A, TMD41B, TMD41D, TMD41L-A
- Volvo Penta MD100A, MD100B, MD100B-CC
- Volvo Penta TAD1630G, TAD1630GE, TAD1630P
- Volvo Penta TAMD165A, TAMD165C, TAMD165P
- Volvo Penta TAMD60A, TAMD60B, TAMD60C
- Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
- Volvo Penta TID71A, TID71AG, TID71AP
- Volvo Penta TMD40A, TMD40B, TMD40C
- Volvo Penta TWD1210G, TWD1210P, TWD1210V
- Volvo Penta TWD1211V, TWD1211P, TWD1211G
- Volvo Penta TWD1630G, TWD1630P, TWD1630V
- Volvo Penta TWD610P, TWD610PB, TWD610V
- Volvo Penta TWD710P, TWD710PB, TWD710V
- Volvo Penta AQAD40B, AQAD40A
- Volvo Penta D100BHC, D100BRC
- Volvo Penta SP-A, SP-A1
- Volvo Penta TAD1631GE, TAD1631G
- Volvo Penta TAD730P, TAD730V
- Volvo Penta TAMD163A-A, TAMD163P-A
- Volvo Penta TAMD40A, TAMD40B
- Volvo Penta TAMD42WJ-A, TAMD42B
- Volvo Penta TAMD63L-A, TAMD63P-A
- Volvo Penta TAMD70E, TAMD70D
- Volvo Penta TAMD71B, TAMD71A
- Volvo Penta TAMD74P-A, TAMD74P-B
- Volvo Penta TD100AHC, TD100ARC
- Volvo Penta TD120AHC, TD120ARC
- Volvo Penta TD610M, TD610V
- Volvo Penta TD630ME, TD630VE
- Volvo Penta TD70CHC, TD70G
- Volvo Penta TD730ME, TD730VE
- Volvo Penta TWD1230ME, TWD1230VE
- Volvo Penta TWD630ME, TWD630VE
- Volvo Penta AQD40A
- Volvo Penta AQD70D
- Volvo Penta D2003AG
- Volvo Penta D70CHC
- Volvo Penta DPX
- Volvo Penta MD120A
- Volvo Penta MD31A
- Volvo Penta MD70C
- Volvo Penta TAD120AHC
- Volvo Penta TAMD120A
- Volvo Penta TAMD61A
- Volvo Penta TAMD62A
- Volvo Penta TAMD75P-A
- Volvo Penta TD121G-87
- Volvo Penta TD164KAE
- Volvo Penta TD31ACE
- Volvo Penta TD40A
- Volvo Penta TD60D-83
- Volvo Penta TID61AG
- Volvo Penta TMD100A
- Volvo Penta TMD70C
- Volvo Penta TWD1031VE
- Volvo Penta TWD1231VE
- Volvo Penta TWD1240VE
- Volvo Penta TWD1620G
- Volvo Penta TWD730ME
- Volvo Penta TWD731VE
