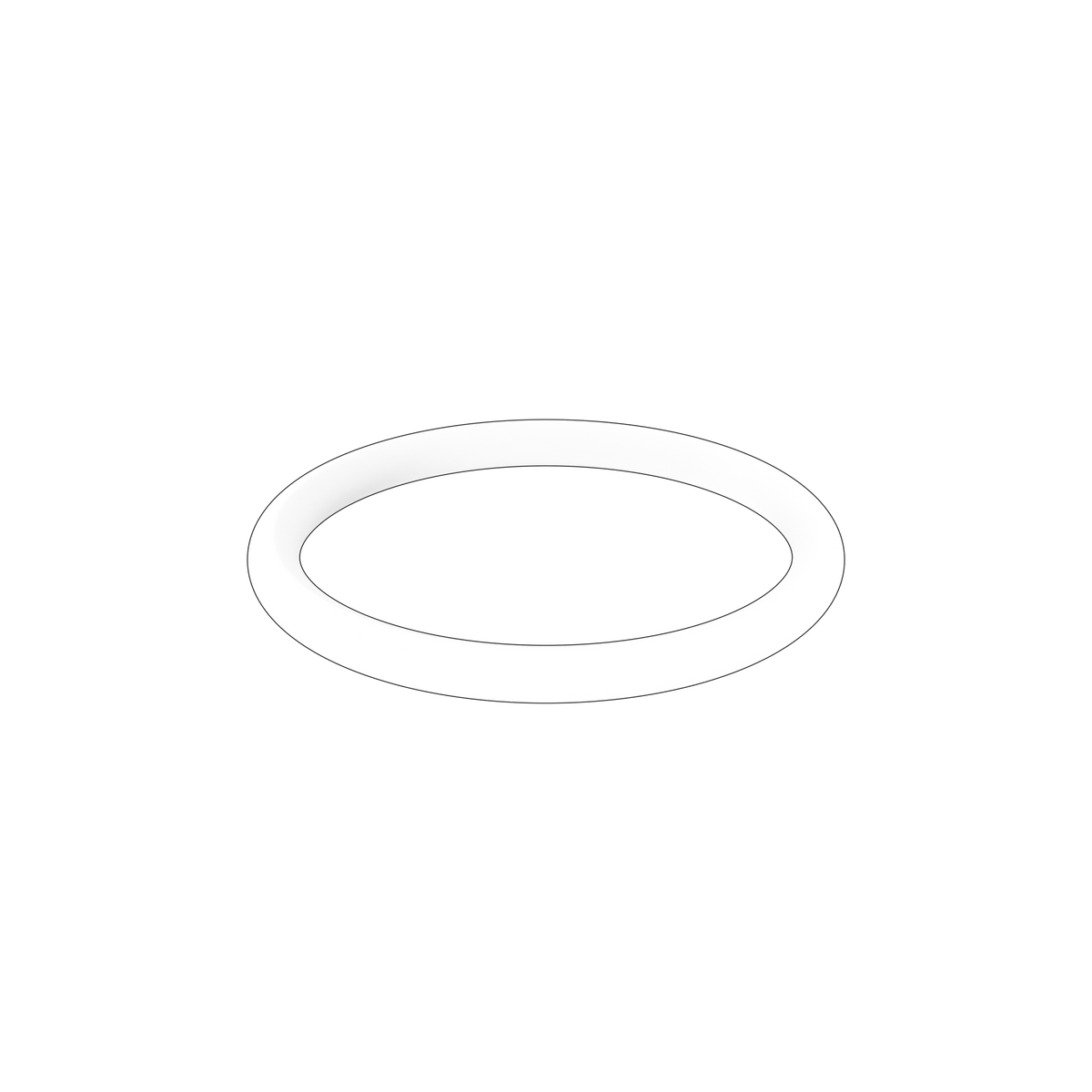

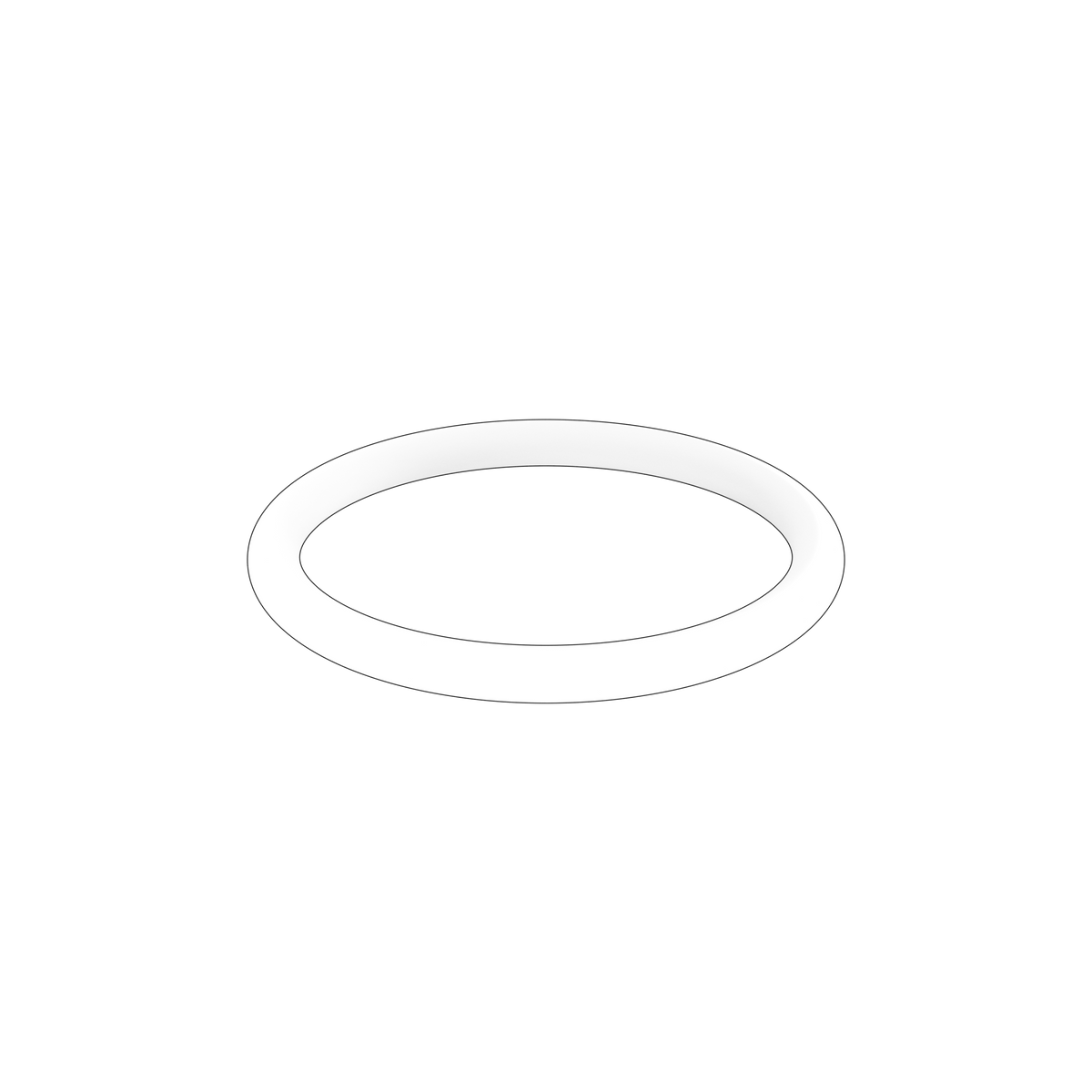

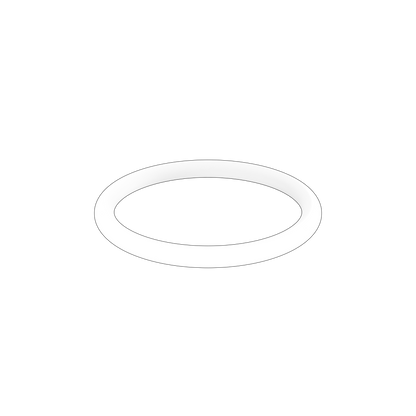

948700 O-Ring | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta o-ring, weighing 0.014 kg and listed for 160 applications across the V, D, THD, DH and MD engine families.

🚤 Compatibility

• Engine Family: V, D, THD, DH, MD
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• 0.014 kg
• 160 applications across five engine families

🔌 Function

Seals a static joint between two machined faces or into a groove, holding pressure once the assembly is pulled together.

⚠️ Common Signs of Failure

• Weeping or dripping from the joint the ring seals
• Ring gone hard, squared off or taken a permanent set
• Cracking or splitting on the ring surface
• Nipped or trapped ring, showing a witness mark where it was pinched on assembly

🛠️ Service Notes

• Always fit a new O-ring — never refit one that has been removed, as it has already taken a set in its groove
• Clean the groove and both sealing faces and check them for nicks, scoring and corrosion pitting; a damaged groove will leak however good the new seal is
• Smear the ring with a little clean lubricant compatible with the fluid it seals, then roll it into place by hand so it sits untwisted and fully in its groove
• Never lever an O-ring over a sharp edge or thread with a screwdriver; use a blunt plastic tool and protect any edge the ring has to pass
• Assemble the joint squarely and tighten to the figure and sequence given in the workshop manual for your engine — over-tightening extrudes the ring and causes the very leak you were curing

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• SLP: HSR-756

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C2-A MG, D13C1-A MG, D13C8-B MP
• Volvo Penta D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-TA
• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta THD102KB, THD102KD, THD102K-KB
• Volvo Penta D9A2A, D9A2C
• Volvo Penta MD2010, MD2010B
• Volvo Penta DH10A
