952969 Hose | Genuine Volvo Penta Part

🔧 Product Description

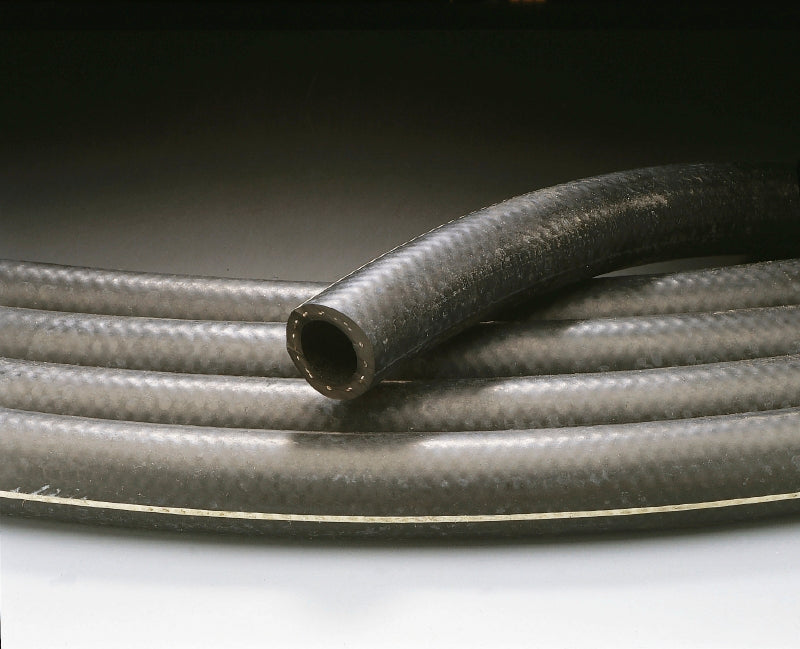

Genuine Volvo Penta rubber cooling hose with a 16 mm internal diameter and a 23.8 mm external diameter, weighing 0.018 kg and listed for 109 applications across D, TAMD, AD, TMD, DPH and TSK series engines and drives. Volvo Penta rubber hoses are made specifically for the engine's cooling system and are built to take both suction and pressure. This is the size the accessories listing names as the recommended hose between engine and water heater on a hot water outlet installation, with stainless steel clips 961665. It consolidates nine earlier numbers - 13569, 13570, 800051, 818900, 831836, 897257, 943368, 944217 and 945888 - which were catalogued variously as hoses and, in one case, as a water hose, which is why one short length now covers so many builds.

🚤 Compatibility

• Engine Family: D, TAMD, AD, TMD, DPH, TSK, MS, DPI, HS, KAMD, MD, KAD
• HP Range: 13-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 16 mm internal diameter, 23.8 mm external
• Recommended hose from engine to water heater on hot water outlet installations
• Recommended stainless steel clips 961665
• Designed to take both suction and pressure
• 0.018 kg
• Consolidates nine earlier part numbers
• 109 applications across six engine and drive series
• 15.9mm / L=100mm / L=120mm / L=145mm / L=1500mm / L=1550mm / L=155mm / L=180mm / L=190mm / L=1940mm / L=2500mm / L=250mm / L=290mm / L=3000mm / L=300mm / L=310mm / L=315mm / L=4000mm / L=400mm / L=450mm / L=50000mm / L=500mm / L=50mm / L=550mm / L=55mm / L=600mm / L=60mm / L=70mm / L=75mm / L=80mm / L=850mm / L=900mm / L=95mm (Volvo assembly listing)
• Quantity varies by assembly, most commonly one
• Designed to withstand both suction and pressure
• External diameter: 23.8 mm
• Internal diameter: 16 mm
• Fits: Engine cooling system
• Also supersedes Volvo part numbers 335359, 818896, 818897, 943053, 943879, 946411 and 947175

🔌 Function

Makes the flexible joint between two rigid pipe stubs in the cooling system, absorbing the relative movement between them.

⚠️ Common Signs of Failure

• Seepage or a damp trail at the clip
• Cracking or crazing of the outer wall when bent
• The hose has taken a permanent set and no longer springs back
• Swelling or softening where it has been in contact with oil or fuel
• Ends splayed or split from repeated clamping

🛠️ Service Notes

• Order by bore across this group: 952968 is 12.7 mm, 952970 is 19 mm and 952972 is 25.4 mm
• Fit new clips rather than reusing the originals - 961665 is the clip listed for this size
• Recommended stainless steel hose clip for this size is 961665

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 952969 → Supersedes 13570

OEM / Related Numbers

• 13569 earlier number superseded by this part
• 800051 earlier number superseded by this part
• 818900 earlier number superseded by this part
• 945888 earlier number superseded by this part
• 944217 earlier number superseded by this part
• 943368 earlier number superseded by this part
• 13570 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-480A-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31D
• Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta AD41D, AD41L-A, AD41P-A
• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MP
• Volvo Penta D2-40, D2-40B, D2-40F
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta D41D, D41L-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta MD2010-C, MD2010-D
• Volvo Penta MD2020-C, MD2020-D
• Volvo Penta MD2030-C, MD2030-D
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TMD31D, TMD31L-A
• Volvo Penta TMD41D, TMD41L-A
• Volvo Penta DPH-E
• Volvo Penta DPI-A
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MS2B-A
• Volvo Penta TAMD22P-B
• Volvo Penta TSK DPI-A
