• 952970 Hose | Genuine Volvo Penta Part
1 1

952970 Hose | Genuine Volvo Penta Part

952970 Hose | Genuine Volvo Penta Part

$50.85 AUD
$50.85 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

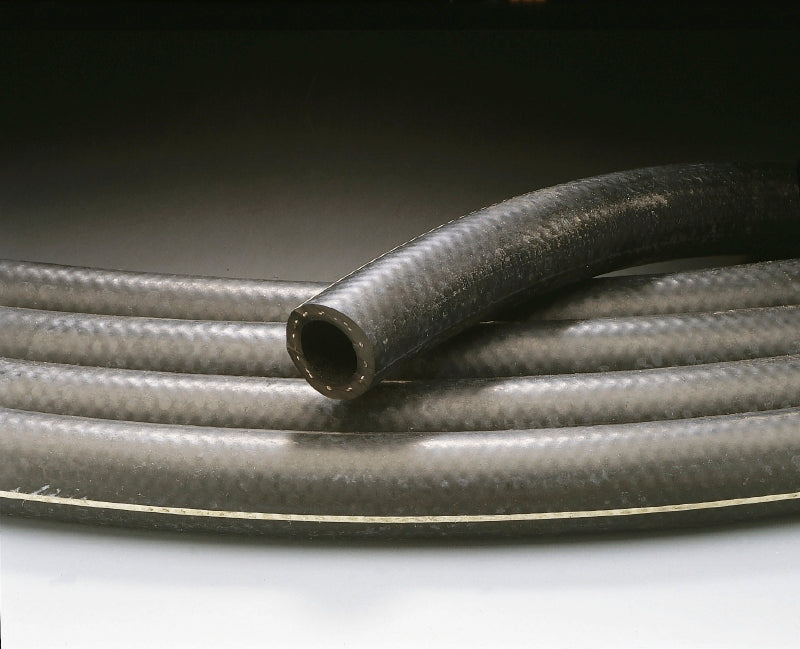

Genuine Volvo Penta rubber cooling hose with a 19 mm internal diameter and a 27 mm external diameter, supplied as an 800 mm length. It weighs 0.363 kg, is listed for 246 applications across TAD, TD, AQ, D, TWD and TID series engines - the widest fitment of the four hoses here - and supersedes 13720. Volvo Penta rubber hoses are made specifically for the engine's cooling system and are built to take both suction and pressure. The long 800 mm cut is meant to be trimmed to the run rather than fitted as it comes, and the recommended stainless steel clip for this size is 961666.

🚤 Compatibility

  • Engine Family: TAD, TD, AQ, D, TWD, TID, TMD, BB, MS, DP, SP, TAMD, MD
  • HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

  • 19 mm internal diameter, 27 mm external
  • 800 mm supplied length
  • Recommended stainless steel clip 961666
  • Designed to take both suction and pressure
  • 0.363 kg
  • Supersedes 13720
  • 246 applications across six engine series
  • L=250mm / L=380mm / L=440mm / L=500mm / L=800mm (Volvo assembly listing)
  • Designed to withstand both suction and pressure
  • External diameter: 27 mm
  • Internal diameter: 19 mm
  • Fits: Engine cooling system

🔌 Function

Carries flow between two rigid connections over a longer, flexible run, absorbing engine movement along the way.

⚠️ Common Signs of Failure

  • Weeping at either end fitting
  • Hardened, glazed rubber that cracks when flexed
  • Soft or ballooned sections part way along the run
  • Chafing or a worn flat where the hose has rubbed against a bracket
  • Collapse or kinking on the suction side

🛠️ Service Notes

  • Cut to length with a sharp blade and square to the axis - an angled cut will not seal under a clip
  • Support the run with clips so it cannot chafe; at 800 mm there is enough free length to find something to rub on
  • Recommended stainless steel hose clip for this size is 961666

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 952970 → Supersedes 13720

OEM / Related Numbers

  • 13720 earlier number superseded by this part

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

  • Volvo Penta 2003, 2003R, 740B, 500A, 501A, 501B, 570A, 572A, 430A, 430B, 431A, 431B, 432A, 434A, 2003TB, 231LB, 271LB, 275A, 280B, 285A, 290DP, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 570, 500B, 500, 2002, 571A, 430
  • Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
  • Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
  • Volvo Penta TD61A, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TD61AW
  • Volvo Penta TD71A, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TD71AW
  • Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-A, DP-A2
  • Volvo Penta AQ225D, AQ225E, AQ225B, AQ225C, AQ225F
  • Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-B TA, D7C-TA
  • Volvo Penta TAD1030P, TAD1030G, TAD1030GE, TAD1030V, TAD1030VE
  • Volvo Penta TD120C, TD120A, TD120G, TD120GG PP, TD120GG
  • Volvo Penta TID71A, TID71AG, TID71AGP, TID71AP, TID71APB
  • Volvo Penta AQ200D, AQ200C, AQ200B, AQ200F
  • Volvo Penta AQ271A, AQ271C, AQ271B, AQ271D
  • Volvo Penta BB225A, BB225AV, BB225B, BB225C
  • Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
  • Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
  • Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
  • Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
  • Volvo Penta MD22, MD22A, MD22L, MD22P
  • Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
  • Volvo Penta TWD1210G, TWD1210P, TWD1210PB, TWD1210V
  • Volvo Penta TWD1630G, TWD1630P, TWD1630PP, TWD1630V
  • Volvo Penta TWD610G, TWD610P, TWD610PB, TWD610V
  • Volvo Penta TWD710G, TWD710P, TWD710PB, TWD710V
  • Volvo Penta BB260AV, BB260B, BB260C
  • Volvo Penta D5A-B TA, D5A-T, D5A-TA
  • Volvo Penta SP-C, SP-A2, SP-C1
  • Volvo Penta TAD1630GE, TAD1630P, TAD1630PB
  • Volvo Penta TAD730G, TAD730P, TAD730V
  • Volvo Penta TD100A, TD100AG, TD100G
  • Volvo Penta TD121G-87, TD121GP, TD121GPB
  • Volvo Penta TD610G, TD610M, TD610V
  • Volvo Penta TMD22A, TMD22B, TMD22P-C
  • Volvo Penta TWD1211V, TWD1211P, TWD1211G
  • Volvo Penta AQ231A, AQ231B
  • Volvo Penta AQ255A, AQ255B
  • Volvo Penta AQ260A, AQ260B
  • Volvo Penta AQ311A, AQ311B
  • Volvo Penta D100A, D100B
  • Volvo Penta TAD1031G, TAD1031GE
  • Volvo Penta TAD1230G, TAD1230V
  • Volvo Penta TAD1631GE, TAD1631G
  • Volvo Penta TD630ME, TD630VE
  • Volvo Penta TD70G, TD70B
  • Volvo Penta TD730ME, TD730VE
  • Volvo Penta TID61AG, TID61AGP
  • Volvo Penta TWD1230ME, TWD1230VE
  • Volvo Penta TWD630ME, TWD630VE
  • Volvo Penta TWD740GE, TWD740VE
  • Volvo Penta AQ175A
  • Volvo Penta AQ205A
  • Volvo Penta AQ211A
  • Volvo Penta AQ290A
  • Volvo Penta BB231A
  • Volvo Penta BB261A
  • Volvo Penta D120A
  • Volvo Penta D2003AG
  • Volvo Penta D70B
  • Volvo Penta MS2B-A
  • Volvo Penta MS4B
  • Volvo Penta TAD1032GE
  • Volvo Penta TAD1231GE
  • Volvo Penta TAD1232GE
  • Volvo Penta TAD740GE
  • Volvo Penta TAD741GE
  • Volvo Penta TAMD22P-B
  • Volvo Penta TD1010G
  • Volvo Penta TD1030VE
  • Volvo Penta TD1210G
  • Volvo Penta TD640VE
  • Volvo Penta TD710G
  • Volvo Penta TID120FG
  • Volvo Penta TWD1010G
  • Volvo Penta TWD1030ME
  • Volvo Penta TWD1031VE
  • Volvo Penta TWD1231VE
  • Volvo Penta TWD1620G
  • Volvo Penta TWD730ME
  • Volvo Penta TWD731VE
