954322 Fitting Nut | Genuine Volvo Penta Part

🔧 Product Description

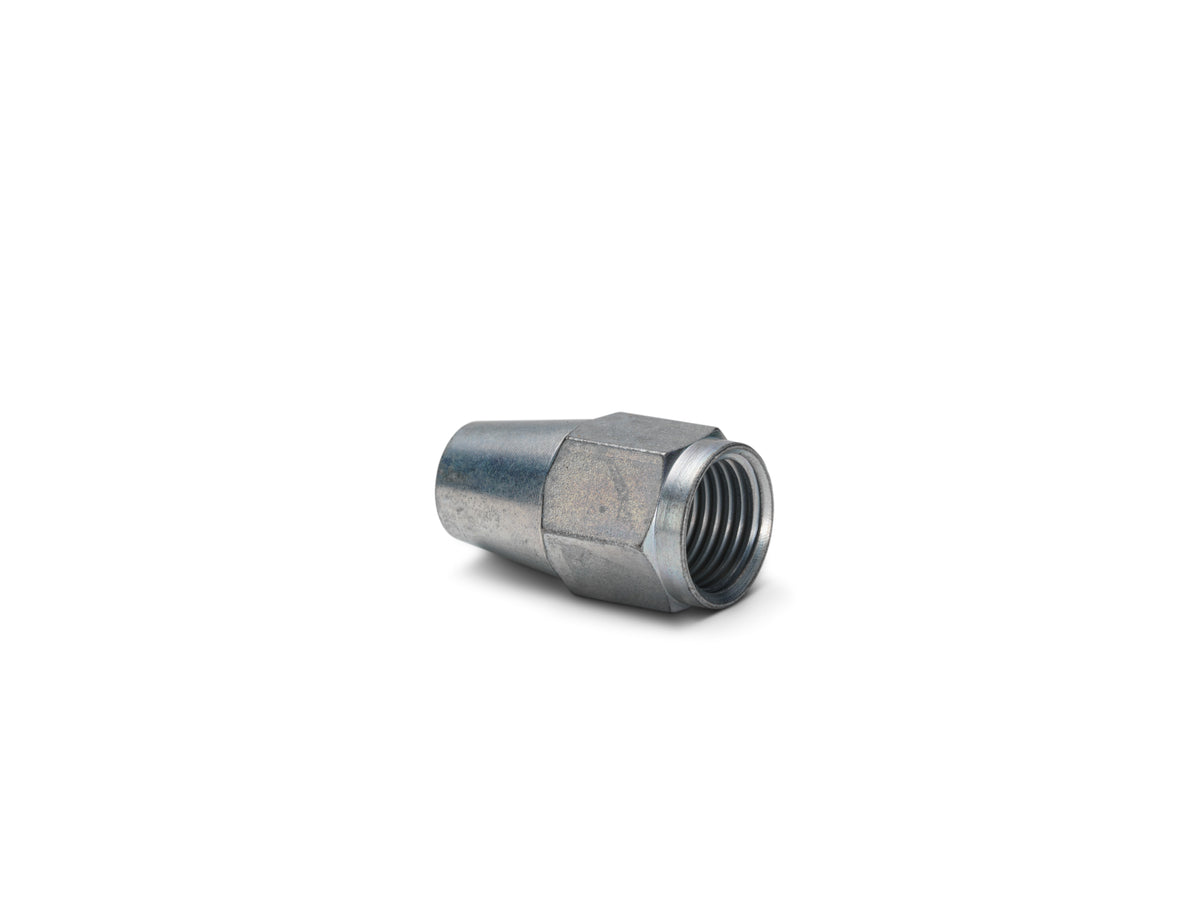

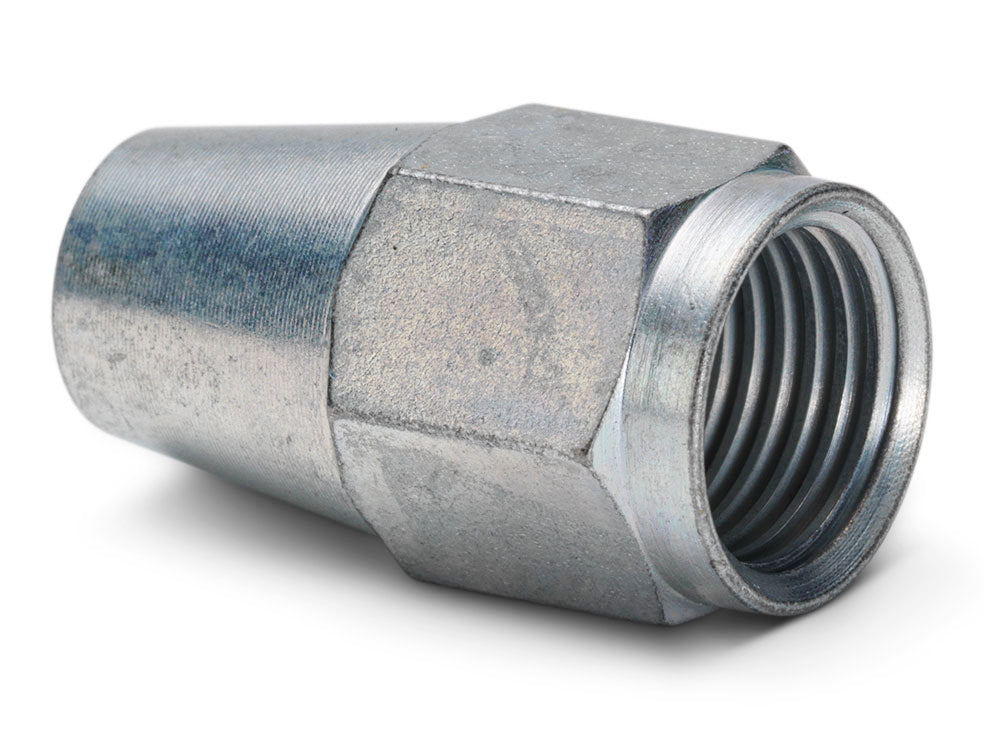

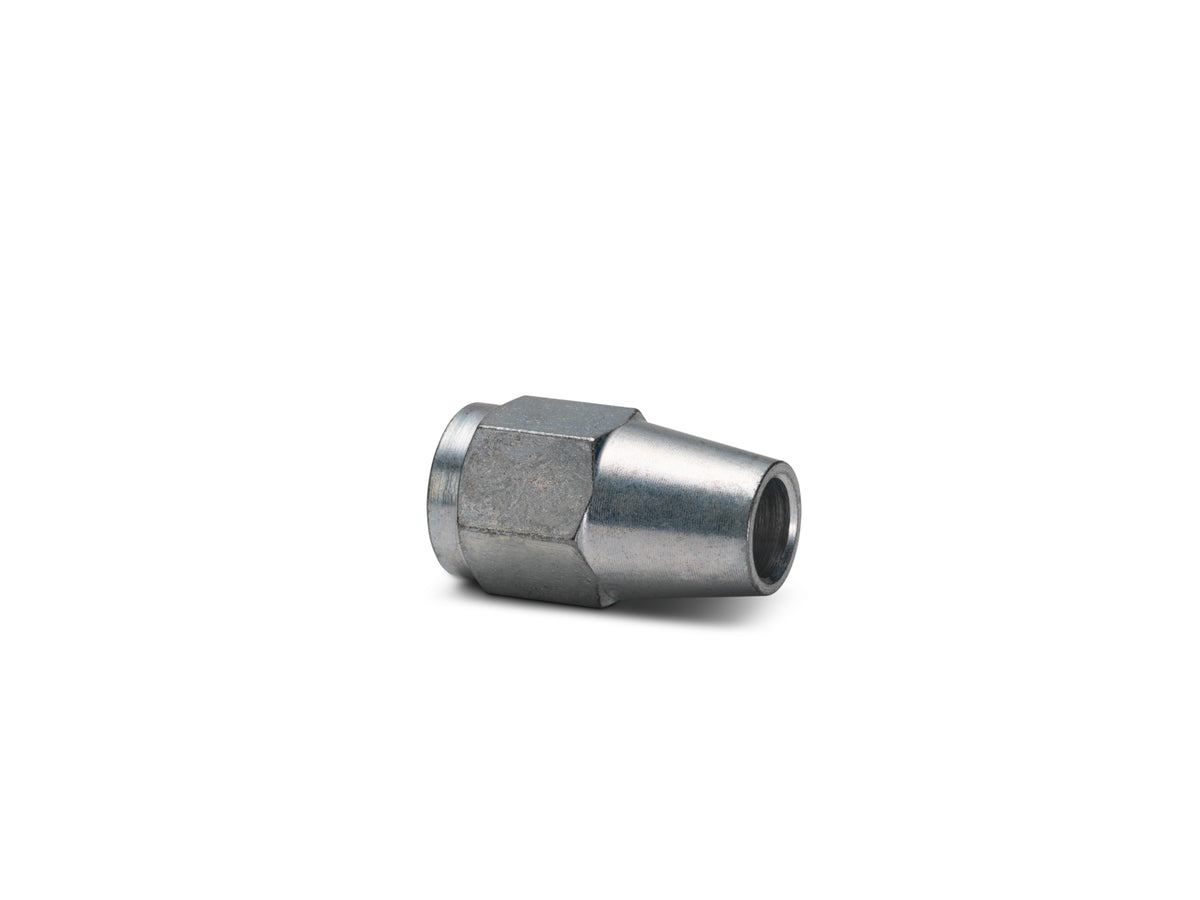

Genuine Volvo Penta 5/16 inch union nut, weighing 0.018 kg and covering 289 applications across the D, MD, TMD, MB, AQ and AD series. It consolidates 180173, 807060 and 809992, one of which was catalogued earlier under oil pipe. The fuel line fittings group exists because Volvo Penta supplies its fuel filters and water separators without connectors or union nuts, so the fittings for the pipe size in use have to be ordered alongside the filter. Size is the ordering detail here: 954323 is the same union nut in 3/8 inch.

🚤 Compatibility

• Engine Family: D, MD, TMD, MB, AQ, AD, AQAD, BB, TAMD, MS, B, DP, SP, HS, AQD, KAD, KAMD
• HP Range: 13-190 HP

Full model list at the end of this description.

⚙️ Key Features

• 5/16 inch
• Pairs with the 5/16 inch copper pipe 954305 and connector 190962
• 0.018 kg
• Consolidates 180173, 807060 and 809992
• 289 applications across six engine and drive series
• Quantity varies by assembly, most commonly one
• Size: 5/16 inch
• Fits: Fuel line connections for Volvo Penta fuel filters / water separators 877763, 877765, 877766, 877768, 877769, 877770, 877771, 889280 and 889281
• Also supersedes Volvo part number 190971

🔌 Function

Clamps the pipe end into the fitting body, compressing the ferrule to make a fuel-tight seal.

⚠️ Common Signs of Failure

• Persistent seep at the union that will not tighten out
• Thread damaged, crossed or stripped
• Flats rounded from being gripped with the wrong spanner
• Internal seat bruised or scored
• Corrosion seizing the nut to the fitting

🛠️ Service Notes

• Order by pipe size, not by appearance - 954323 is the 3/8 inch nut and looks very similar
• Fit a new ferrule at the same time and pull the joint up square
• Check for fuel leaks with the engine running and again once warm before closing up the engine space
• Part of the Volvo Penta fuel line fittings group. Volvo Penta supplies its fuel filters and water separators without connectors or union nuts, so the fittings for the pipe size in use are ordered alongside the filter.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 954322 → Supersedes 180173

OEM / Related Numbers

• 809992 earlier number superseded by this part
• 180173 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003R SOLAS, 100S, 110S, 120S-B, 740B, 500A, 501A, 501B, 570A, 572A, 740A, 430A, 430B, 431A, 431B, 432A, 434A, 2003TB, 2003TB SOLAS, 230A, 230B, 231LB, 250A, 250B, 251A, 275A, 280B, 285A, 290DP, 120SC, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 570, 500B, 2002, 571A, 430, 2001R
• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-160I-C, D3-190I-B, D3-190I-C, D3-130I-B, D3-160I-B
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta AD41P-B, AD41B, AD41D, AD41, AD41A, AD41BJ
• Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-A, DP-A2
• Volvo Penta AD31, AD31B, AD31D, AD31D-A, AD31XD
• Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
• Volvo Penta AQ131A, AQ131B, AQ131C, AQ131D
• Volvo Penta AQ271A, AQ271C, AQ271B, AQ271D
• Volvo Penta BB225A, BB225AV, BB225B, BB225C
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta TAMD31M, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta TAMD41B, TAMD41D, TAMD41M-A, TAMD41A
• Volvo Penta AQ151A, AQ151B, AQ151C
• Volvo Penta AQ170B, AQ170C, AQ170A
• Volvo Penta AQ225D, AQ225E, AQ225F
• Volvo Penta BB115A, BB115B, BB115C
• Volvo Penta BB170B, BB170C, BB170A
• Volvo Penta BB260AV, BB260B, BB260C
• Volvo Penta D41, D41B, D41D
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta MB20A, MB20B, MB20C
• Volvo Penta MD100A, MD100B, MD100B-CC
• Volvo Penta MD5A, MD5B, MD5C
• Volvo Penta MS2B-A, MS2B, MS2V
• Volvo Penta SP-C, SP-A2, SP-C1
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta TMD31A, TMD31B, TMD31D
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta TMD41A, TMD41B, TMD41D
• Volvo Penta AQ115A, AQ115B
• Volvo Penta AQ125B, AQ125A
• Volvo Penta AQ145B, AQ145A
• Volvo Penta AQ171A, AQ171C
• Volvo Penta AQ200D, AQ200F
• Volvo Penta AQ231A, AQ231B
• Volvo Penta AQ260A, AQ260B
• Volvo Penta AQ311A, AQ311B
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta AQD21A, AQD21B
• Volvo Penta MD11C, MD11D
• Volvo Penta MD17C, MD17D
• Volvo Penta MD21B, MD21A
• Volvo Penta MD6A, MD6B
• Volvo Penta MD7B, MD7A
• Volvo Penta MS3B, MS3C
• Volvo Penta MS4B, MS4A
• Volvo Penta TAMD120A, TAMD120B
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta AD30A
• Volvo Penta AD40B
• Volvo Penta AQ120B
• Volvo Penta AQ140A
• Volvo Penta AQ165A
• Volvo Penta AQ175A
• Volvo Penta AQ205A
• Volvo Penta AQ211A
• Volvo Penta AQ290A
• Volvo Penta AQAD30A
• Volvo Penta AQD2B
• Volvo Penta AQD40A
• Volvo Penta B20
• Volvo Penta BB140A
• Volvo Penta BB145A
• Volvo Penta BB165A
• Volvo Penta BB231A
• Volvo Penta BB261A
• Volvo Penta BB740A
• Volvo Penta D2002AG
• Volvo Penta D2003AG
• Volvo Penta HS1A
• Volvo Penta MB10A
• Volvo Penta MB2A
• Volvo Penta MD1B
• Volvo Penta MD120A
• Volvo Penta MD2B
• Volvo Penta MD3B
• Volvo Penta MD30A
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta MD67C
• Volvo Penta MS5B
• Volvo Penta TAMD22P-B
• Volvo Penta TAMD30A
• Volvo Penta TAMD42B
• Volvo Penta TMD100A
• Volvo Penta TMD120A
• Volvo Penta TMD30A
