95857F Searay 4In 1 - 5" Gauge | Genuine Used Part

🔧 Product Description

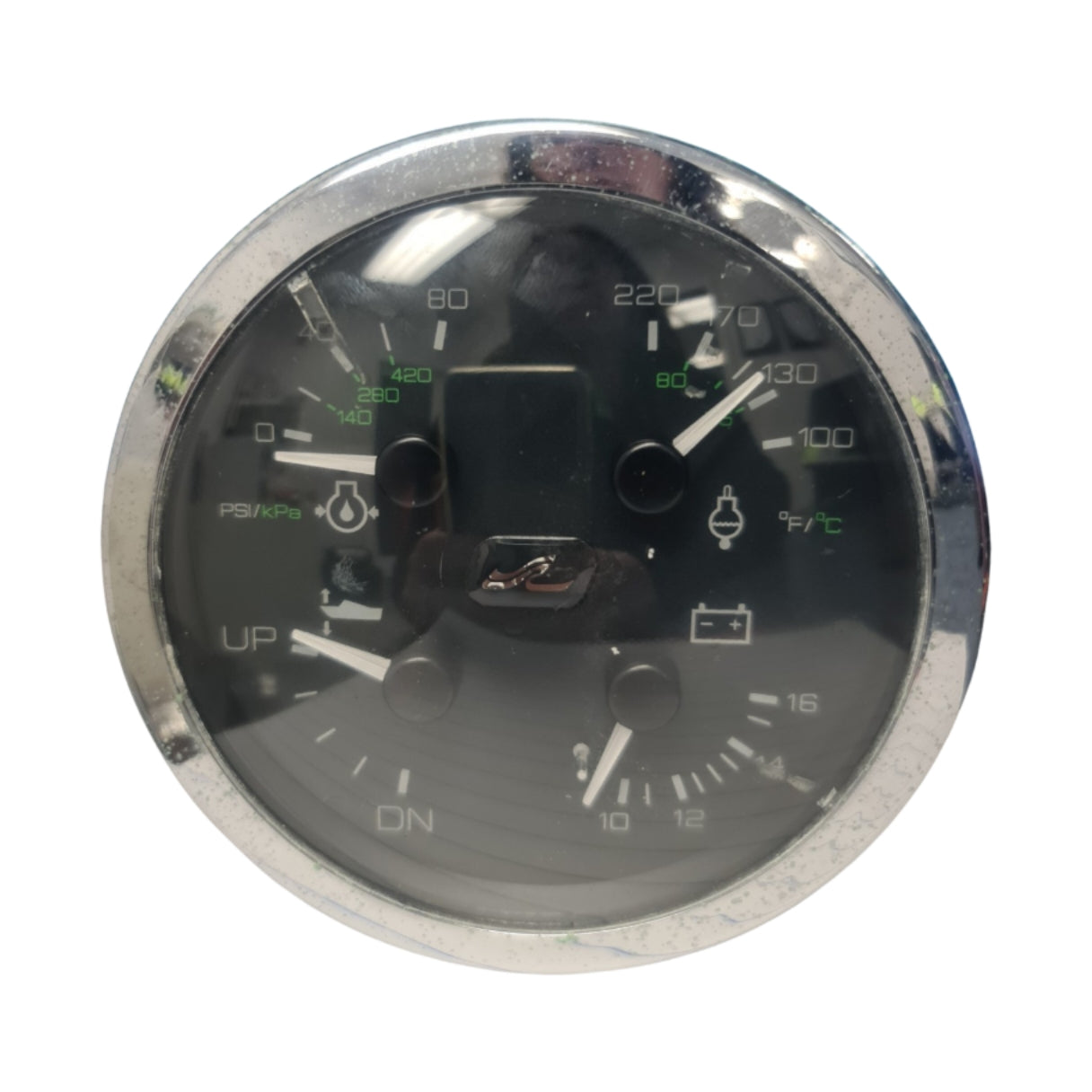

Genuine Sea Ray Pre-SmartCraft 5-Inch Four-in-One Gauge - Part Number: 95857F

A genuine used Sea Ray-branded four-function combination gauge for pre-SmartCraft analogue dashboards.

The large instrument combines oil pressure, coolant temperature, drive or outboard trim and system voltage into one 5-inch-class housing. The face uses four separate pointer movements with Sea Ray branding and a stainless or chrome-style bezel.

⚙️ Key Features

• Genuine Sea Ray four-in-one instrument
• Correct instrument reference 95857F
• Large 5-inch-class gauge
• Combines oil pressure, temperature, trim and volts
• Designed for pre-SmartCraft analogue sender systems

🚤 Compatibility

Commonly used on

• Sea Ray pre-SmartCraft dashboards
• Petrol inboard and sterndrive instrument panels
• Outboard panels using compatible trim and engine senders
• Single- and twin-engine installations where one gauge serves each engine side

Typically suits

• Sea Ray boats from approximately the late 1990s through early 2000s where 95857F is installed
• 12-volt analogue sender systems
• MerCruiser petrol engines with matching oil and temperature senders
• Mercury or MerCruiser trim sender systems
• Fitment Requirement: Exact rear connector and sender calibration must match

🔌 Function

The gauge provides four key engine and drive readings in one instrument: lubrication pressure, coolant temperature, charging voltage and trim position.

⚠️ Common Signs of Failure

• One or more pointer movements do not operate
• Incorrect readings caused by mismatched senders
• Trim indication remains at one end
• Gauge loses shared power or ground
• Lens fogging, lighting failure or connector corrosion

🔄 Supersession & Cross Reference

OEM Supersession Chain

• No confirmed direct drop-in supersession for 95857F
• Sea Ray 1767744 is a later related Teleflex 5-inch four-in-one gauge with oil, temperature, volts and starboard trim, but connector and scale compatibility must be checked
• 95857F original Sea Ray pre-SmartCraft reference

OEM / Related Numbers

• 95857F
• Sea Ray: 1767744 related later four-in-one instrument
• Oil Pressure Scale: approximately 0-80 PSI on the supplied gauge
• Coolant Temperature Scale: approximately 100-220°F on the supplied gauge
• Voltmeter Scale: approximately 10-16 volts
• Trim Scale: Up / Down
• Pre-SmartCraft analogue sender and harness system

Aftermarket / Verified Equivalents

• No verified direct aftermarket plug-in replacement
• Faria and Veethree four-function gauges are available, but many use fuel level rather than trim
• Separate oil, temperature, volt and trim gauges can provide a functional conversion
• Custom gauge rebuilding may retain the original Sea Ray face and connector

📦 Condition

• Genuine used part
• Removed from running engine or vessel where applicable
• In good working condition unless otherwise stated
