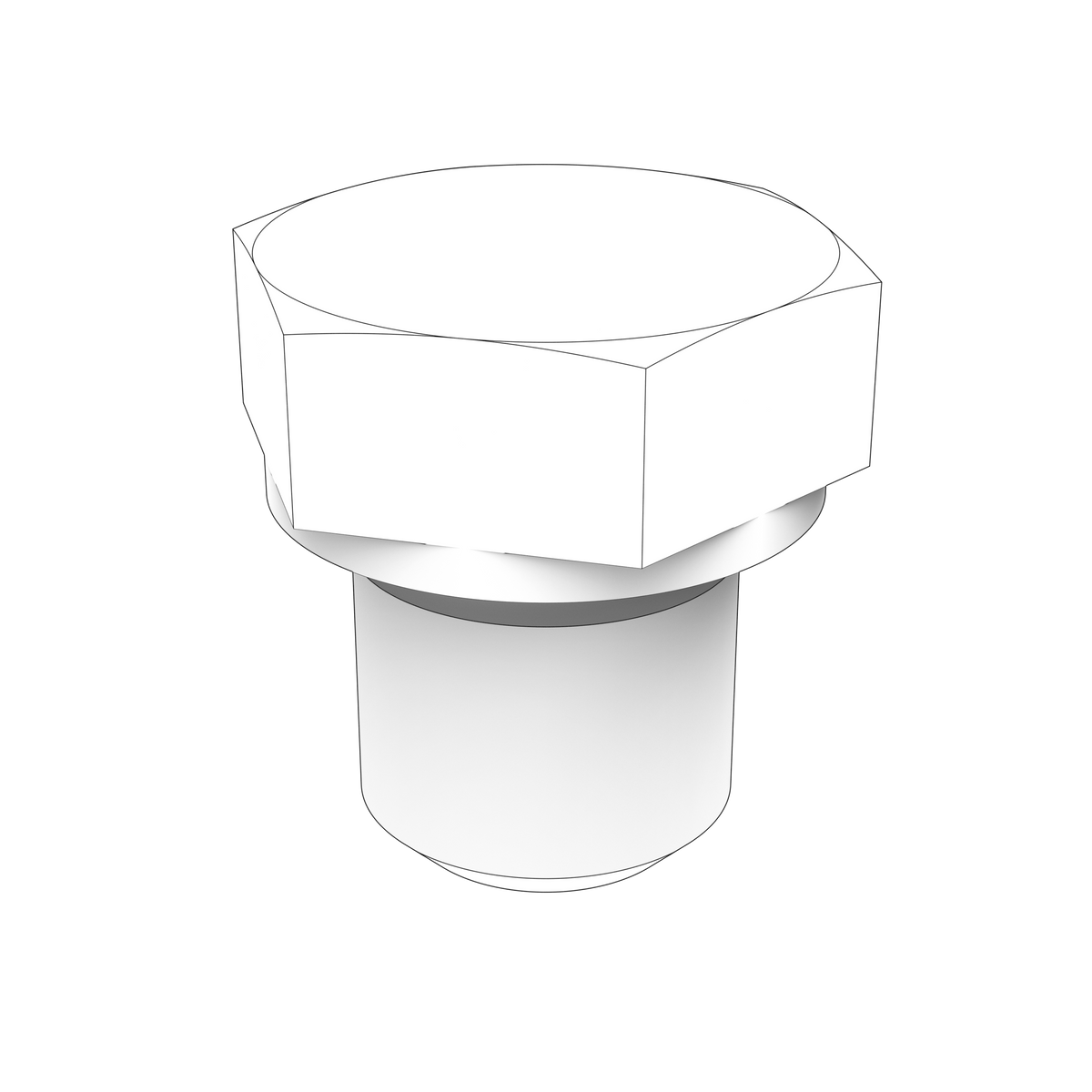

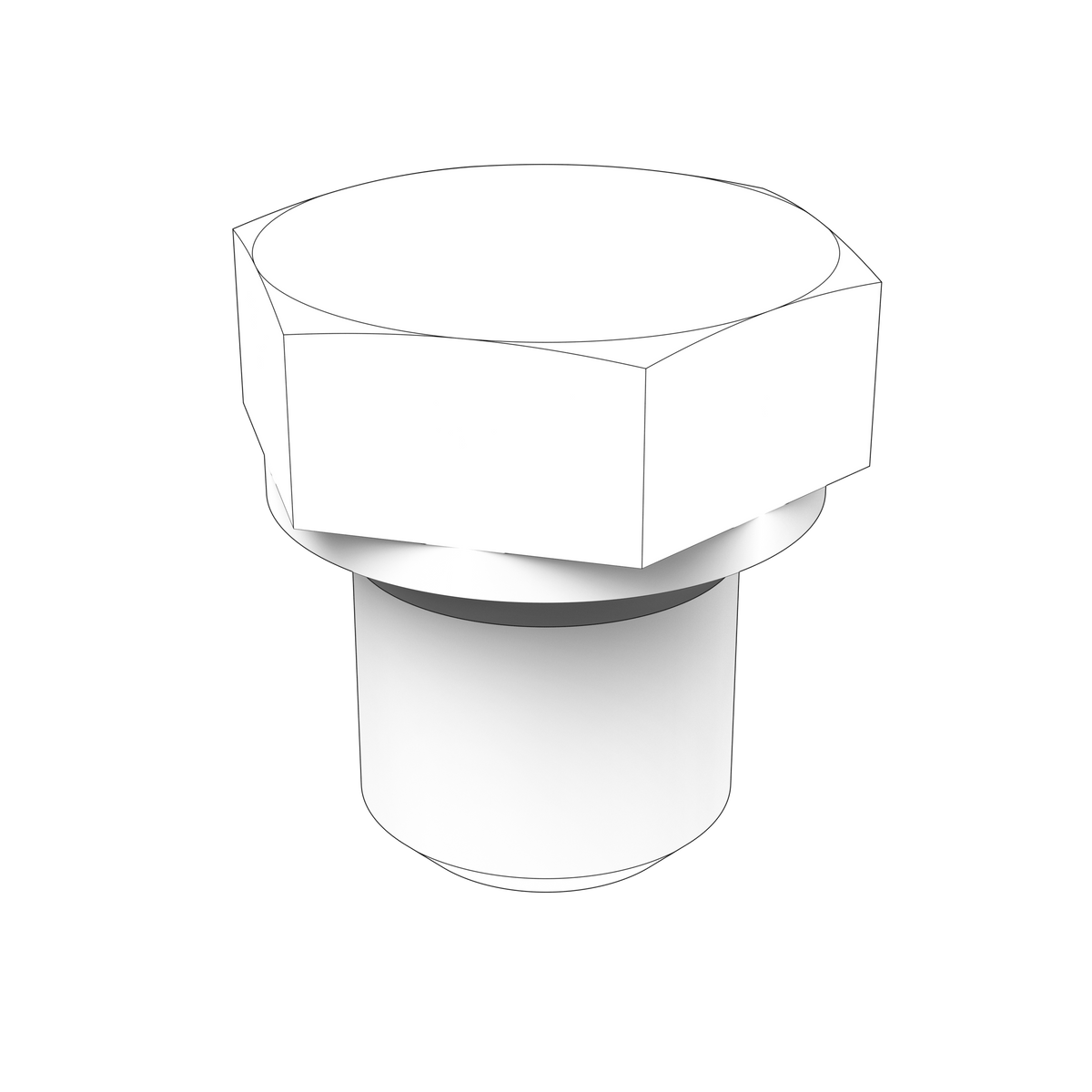

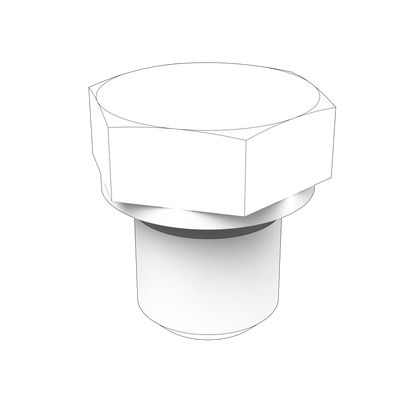

960629 Plug | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta plug with an M12 thread, 12 mm long, weighing 0.029 kg and listed for 48 applications including D, AD, TMD, TAMD, KAMD and KAD series engines. It supersedes 838743, 838744 and 22813350, one of which was catalogued earlier as a tube — so an old reference may not read like a plug at all. The thread size is the ordering guide here: 960631 is the M16 x 12 mm plug and 960633 is the M20.

🚤 Compatibility

• Engine Family: D, AD, TMD, TAMD, KAMD, KAD
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• M12 thread, 12 mm long
• 0.029 kg
• 48 listed applications
• Supersedes 838743, 838744 and 22813350
• One superseded number was catalogued earlier as a tube
• M12x12mm (Volvo assembly listing)

🔌 Function

Closes off a drilling or port in a casting, sealing the passage against pressure and keeping dirt out.

⚠️ Common Signs of Failure

• Seepage from the plug seat
• Hex or socket drive rounded
• Plug seized and shearing on removal
• Corrosion pitting on the sealing face
• Plug working loose in service

🛠️ Service Notes

• Order by the thread size — M12 x 12 mm here, against M16 x 12 mm for 960631 and M20 for 960633
• Renew the seal under the plug whenever the plug is disturbed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 960629 → Supersedes 838743

OEM / Related Numbers

• 838743 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-480A-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta AD41L-A, AD41P-A
• Volvo Penta D13C2-B MP, D13C7-B MP
• Volvo Penta D41L-A
• Volvo Penta KAD300-A
• Volvo Penta KAMD300-A
• Volvo Penta TMD41L-A
