961666 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

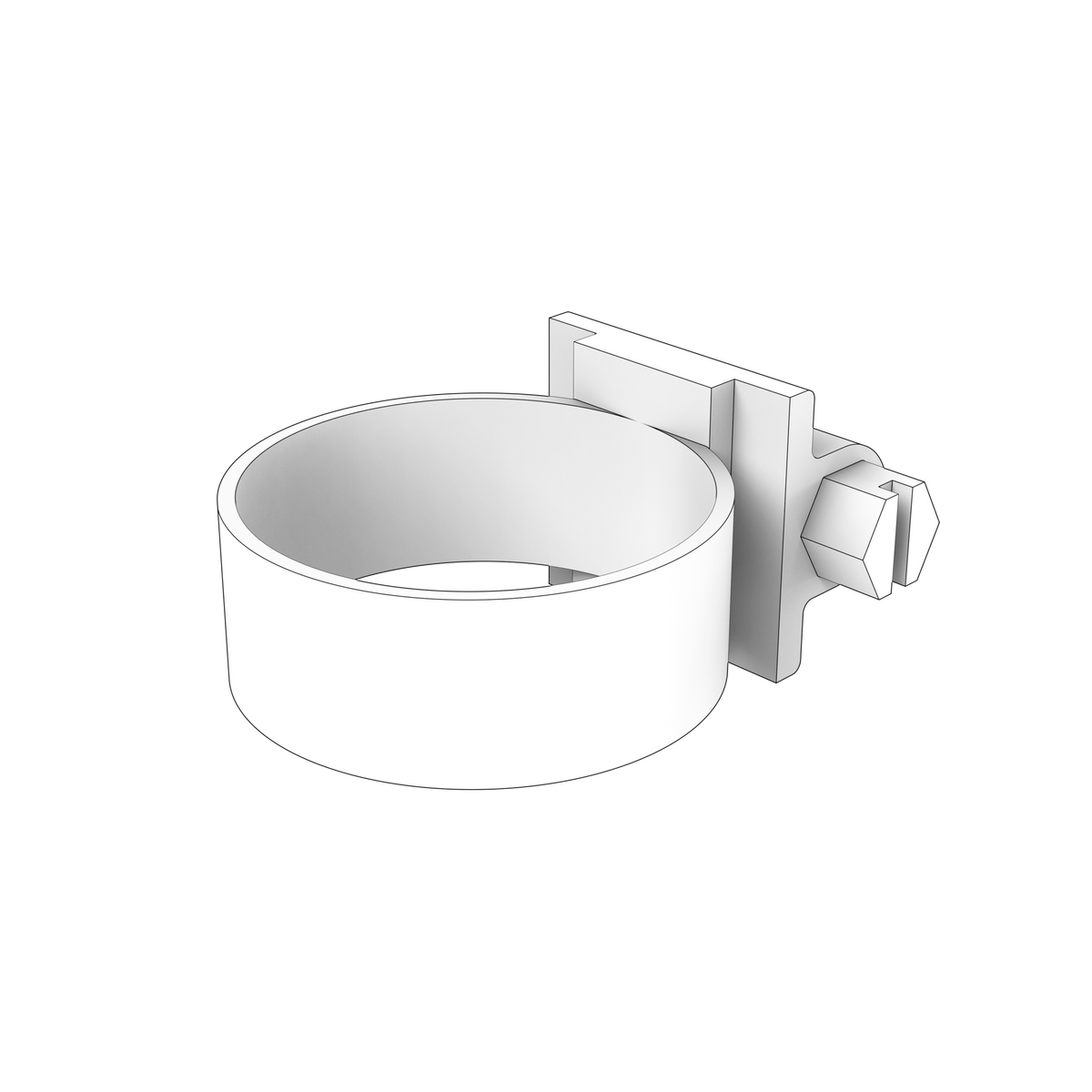

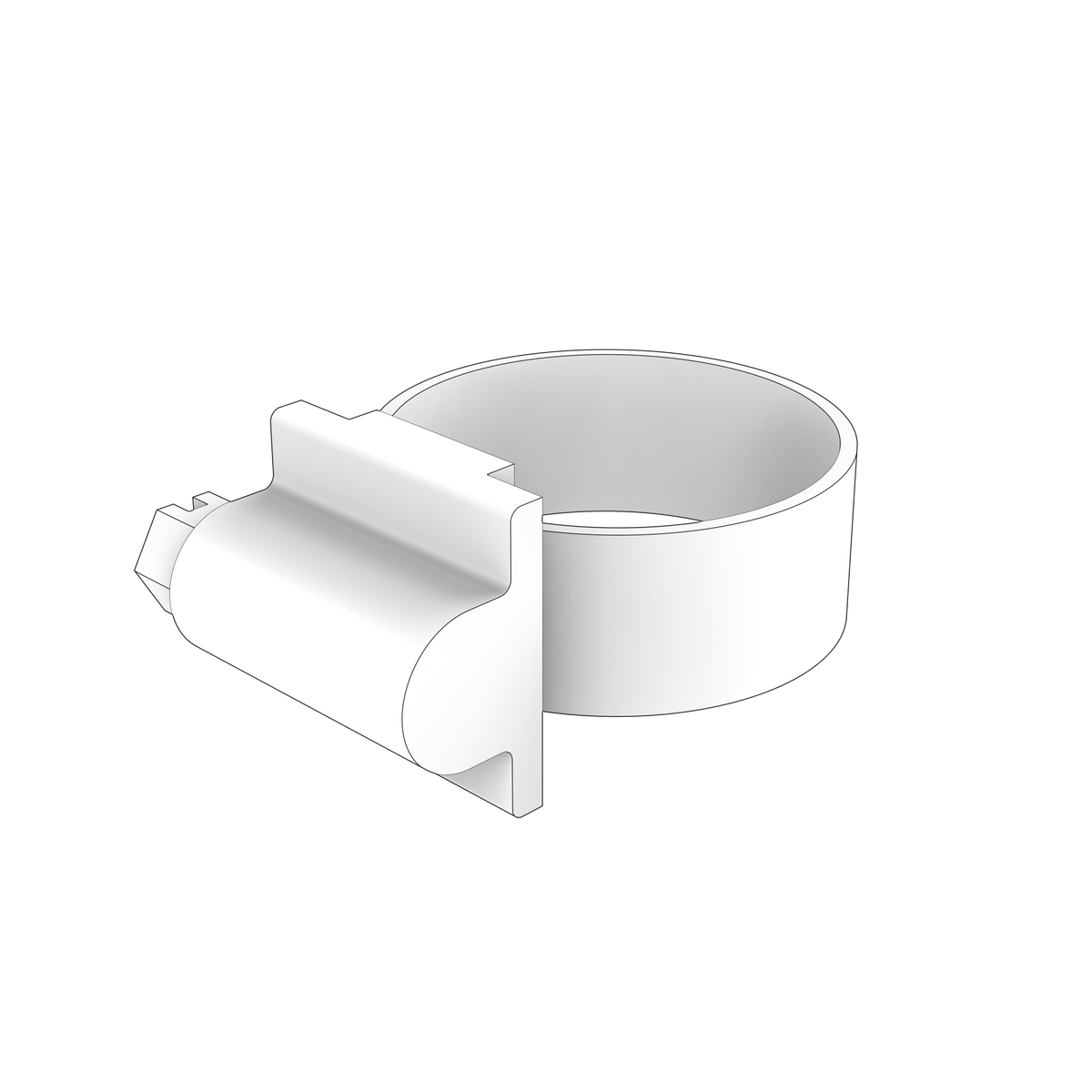

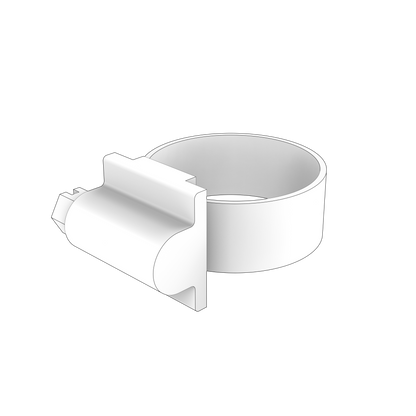

Genuine Volvo Penta stainless steel hose clip with a 29 mm internal diameter, listed as the recommended clip for cooling hose 952970 - the 19 mm bore, 27 mm outside diameter size. It weighs 0.018 kg, is listed for 214 applications including TAMD, D, TMD, HS, KAMD and MD series units and supersedes 841037 and 897898, both catalogued earlier as hose clamps.

🚤 Compatibility

• Engine Family: TAMD, D, TMD, HS, KAMD, MD, KAD
• HP Range: 13-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Recommended clip for cooling hose 952970
• Suits the 19 mm internal, 27 mm external diameter hose
• 29 mm internal diameter
• 0.018 kg
• 214 listed applications
• Supersedes 841037 and 897898
• 29mm (Volvo assembly listing)
• Fits: Rubber cooling hose 952970 (19 mm bore)

🔌 Function

Draws a stainless band tight around a hose end so the hose seals against the spigot beneath it.

⚠️ Common Signs of Failure

• Weeping or dripping from beneath the hose end
• Corroded band, screw seized in its housing
• Screw thread stripped so the clip will not tighten
• Band biting through the hose wall
• Clip slack after heat cycling

🛠️ Service Notes

• Match the hose number rather than choosing by eye - 961665 suits 952968 and 952969, and 961667 suits 952971
• Renew hose and clip together

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 961666 → Supersedes 841037

OEM / Related Numbers

• 897898 earlier number superseded by this part
• 841037 earlier number superseded by this part

Aftermarket / Verified Equivalents

• SLP: HCL-474

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-E, D6-280I-D, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-A, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280I-C, D6-310I-C, D6-280A-A, D6-280A-B, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B, D6-480A-G
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta MD22L, MD22P
• Volvo Penta TMD22B, TMD22P-C
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta TAMD22P-B
• Volvo Penta TAMD42WJ-A
