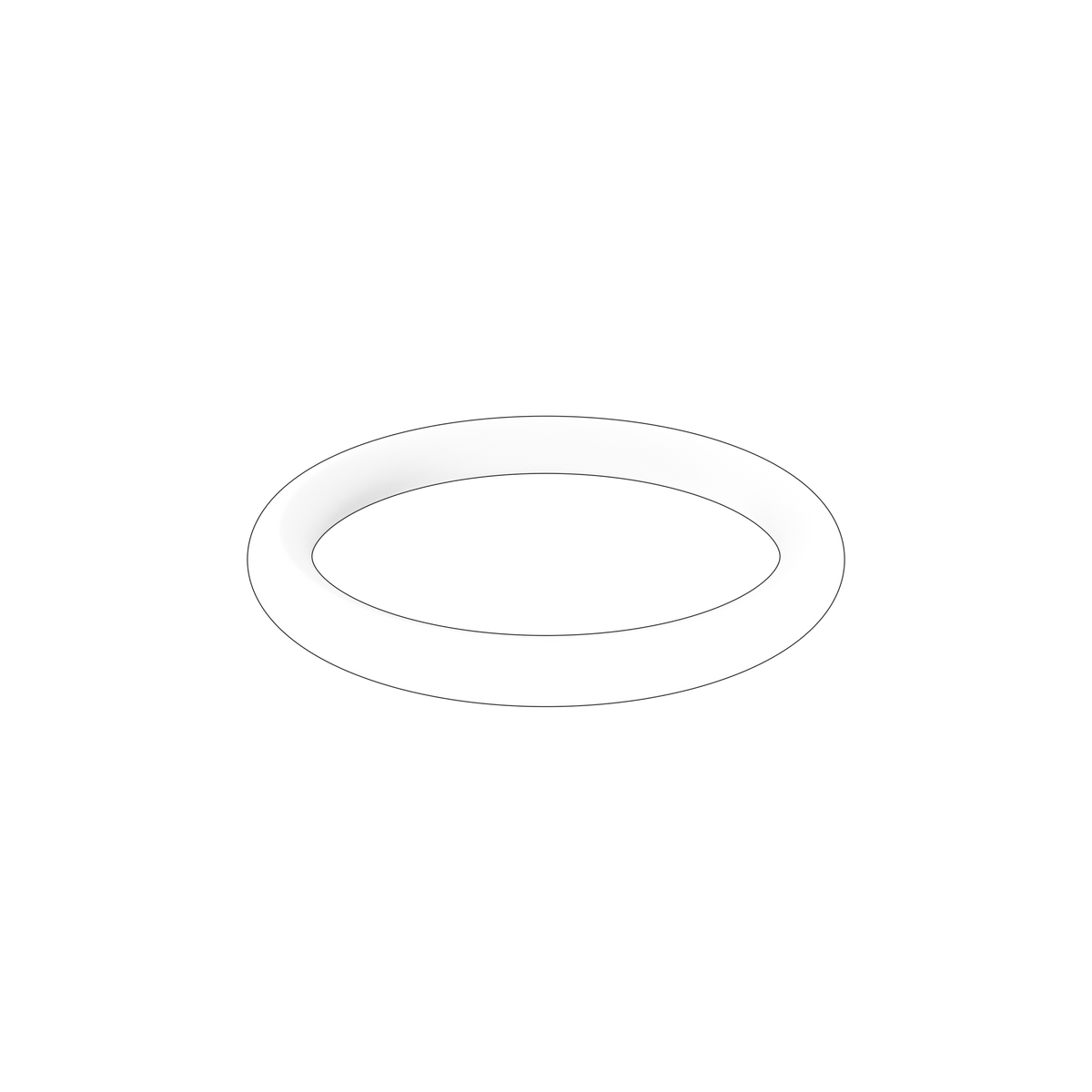

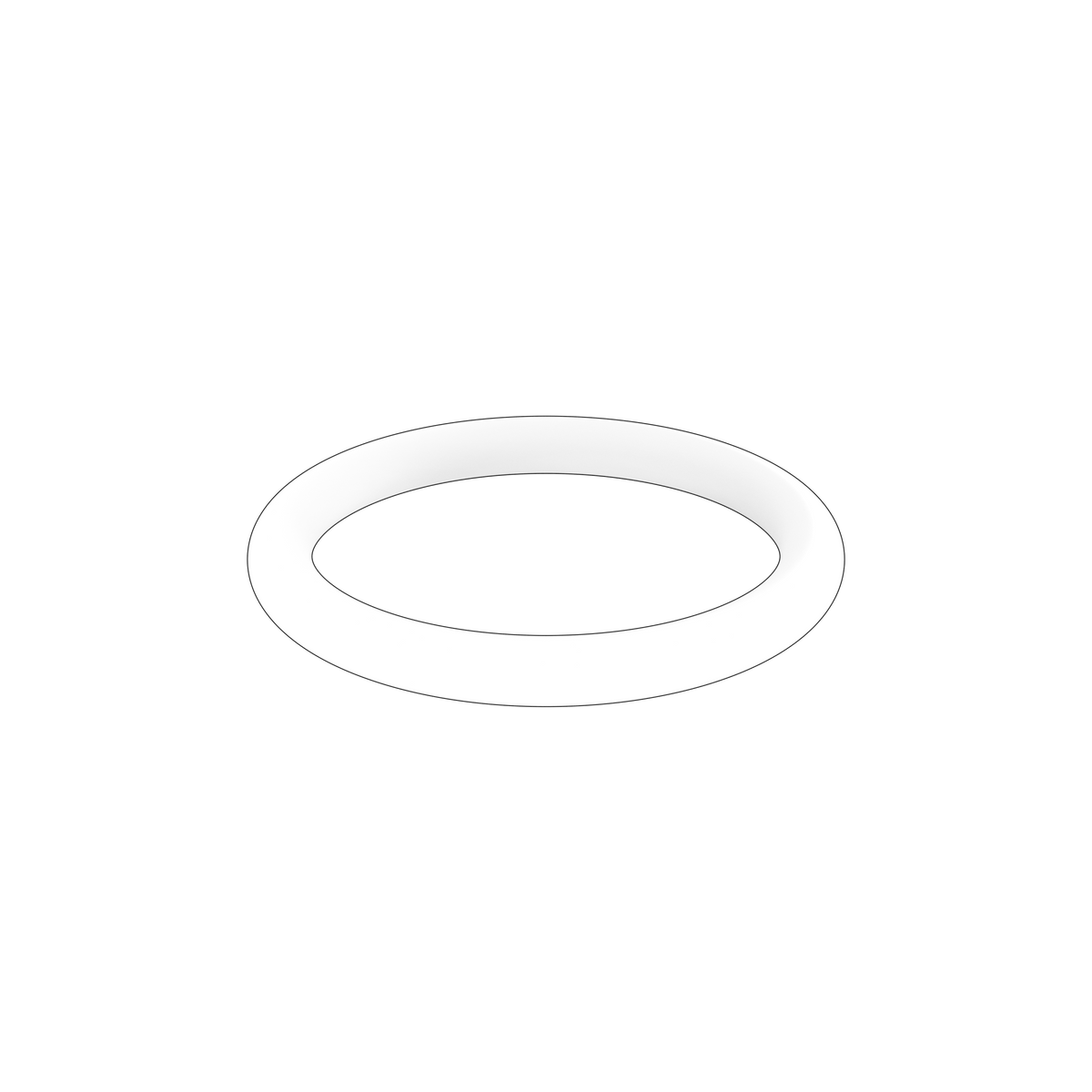

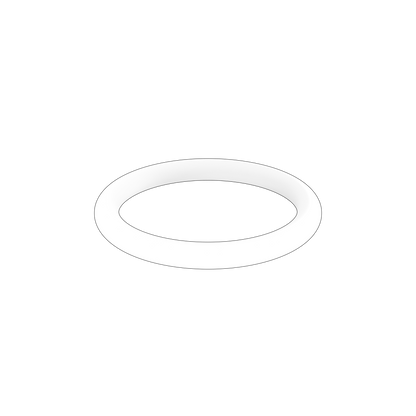

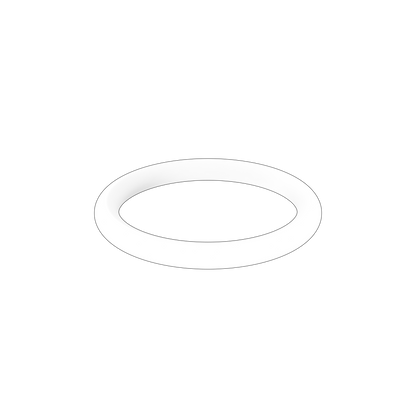

976039 O-Ring | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta o-ring of the late type, weighing 0.009 kg and listed for 63 applications across D, AD, TMD, TAMD, KAD and KAMD series engines. It supersedes part number 980936.

🚤 Compatibility

• Engine Family: D, AD, TMD, TAMD, KAD, KAMD, IPS
• HP Range: 300-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Late type
• 0.009 kg
• Supersedes 980936
• 63 applications across six engine series
• Also supersedes Volvo part numbers 1542255, 1542383, 1544125, 1544141, 859055, 860718 and 860790

🔌 Function

Seals a static joint between two components, keeping fluid or pressure on the correct side of the face.

⚠️ Common Signs of Failure

• Weeping or a damp film around the joint
• Ring squared off on the section rather than round when removed
• Rubber gone hard and brittle, or swollen and soft
• Slow loss of fluid or pressure with no other visible source

🛠️ Service Notes

• This is the late type ring; an engine still built to the earlier specification takes a different one, so confirm which is fitted before ordering
• An order raised against the old number 980936 will be filled with this ring

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 976039 → Supersedes 980936 → Supersedes 1542385

OEM / Related Numbers

• 980936 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G
• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP
• Volvo Penta D9A2J, D9A2G, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2A, D9A2C, D9A2E
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A3-A MP
• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S
• Volvo Penta TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P
• Volvo Penta AD31L-A, AD31P-A
• Volvo Penta AD41L-A, AD41P-A
• Volvo Penta D41L-A
• Volvo Penta IPS3-A
• Volvo Penta KAD300-A
• Volvo Penta KAMD300-A
• Volvo Penta TMD31L-A
• Volvo Penta TMD41L-A
