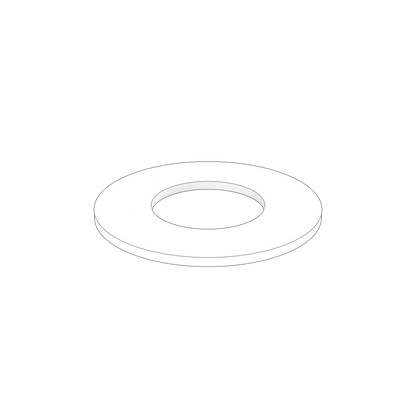

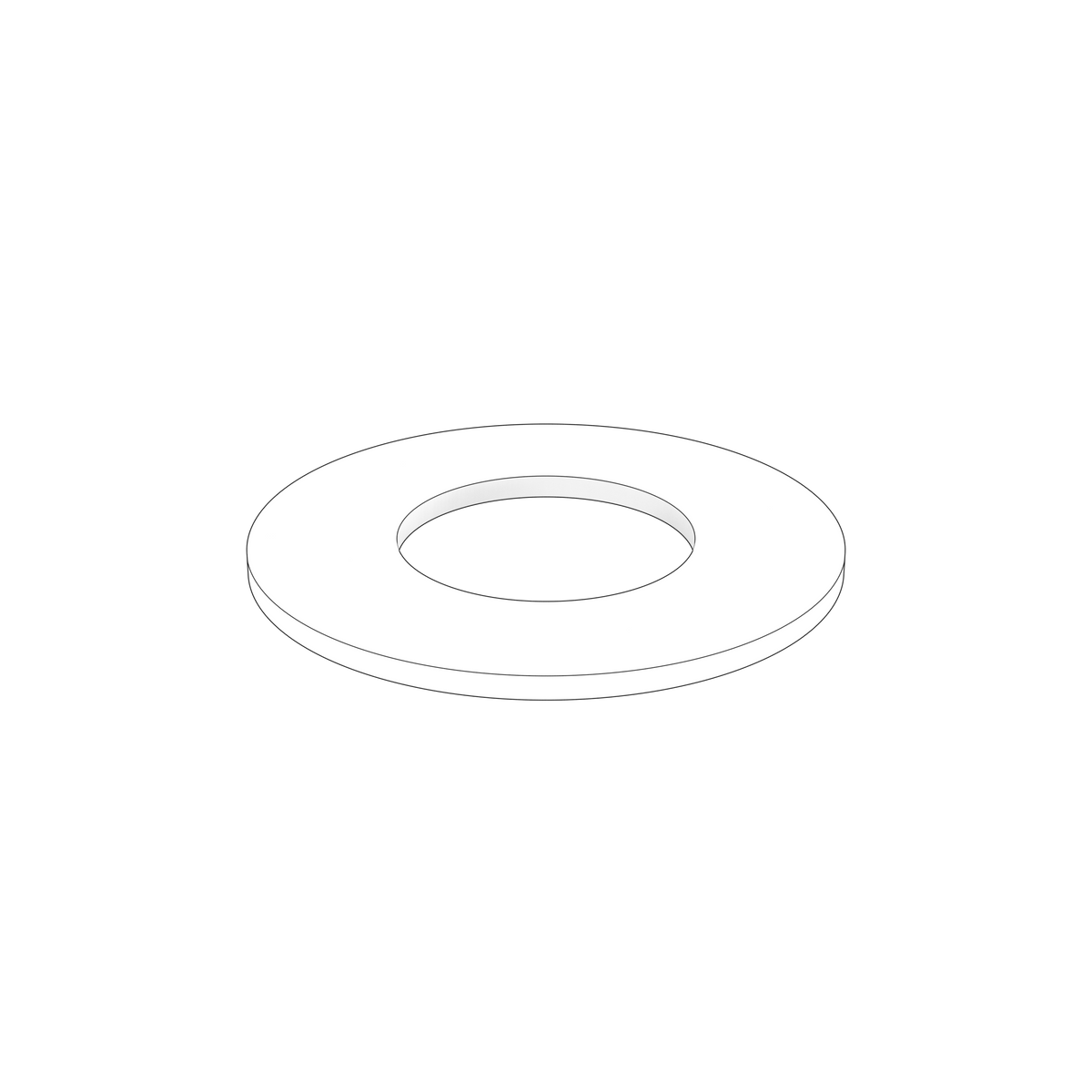

978917 Shim | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta shim 0.50 mm thick, listed for 54 applications across D, TMD, AD, IPS, HS and TAMD engines. A second 0.50 mm shim, 978915, is listed here against a narrower application set that does not include IPS, so check the engine family carefully — the thickness alone will not tell you which of the two you need.

🚤 Compatibility

• Engine Family: D, TMD, AD, IPS, HS, TAMD, KAD, KAMD
• HP Range: 260-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 0.50 mm thick
• Fits 54 applications across D, TMD, AD, IPS, HS and TAMD engines
• The only 0.50 mm shim here listed against IPS
• A second 0.50 mm shim, 978915, covers a different application set
• TH=0.50mm (Volvo assembly listing)
• Quantity varies by assembly, most commonly five

🔌 Function

Takes up a measured amount of endfloat or clearance in an assembly, so the stack can be set to specification by selecting a thickness.

⚠️ Common Signs of Failure

• Endfloat or clearance measuring outside specification on assembly
• Shim found dished, bruised or picked up on strip-down
• Bright fretting marks on the shim faces
• Whine, knock or rumble traced to a slack stack
• Shim cracked or broken into pieces

🛠️ Service Notes

• Two 0.50 mm shims are listed here — check the engine family, not the thickness, to pick between this one and 978915
• Order shims by measured thickness rather than by weight; the published weights in this thickness range do not follow the thickness

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta IPS-A, IPS-B, IPS-C, IPS-D, IPS-E, IPS-F
• Volvo Penta AD31D, AD31D-A, AD31XD
• Volvo Penta HS1A, HS1E, HS1E-A
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
• Volvo Penta IPS10-A, IPS10-B
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta KAD42B
• Volvo Penta KAMD42B
• Volvo Penta TAMD41B
• Volvo Penta TAMD42B
• Volvo Penta TMD31D
• Volvo Penta TMD41B
