🔧 Product Description

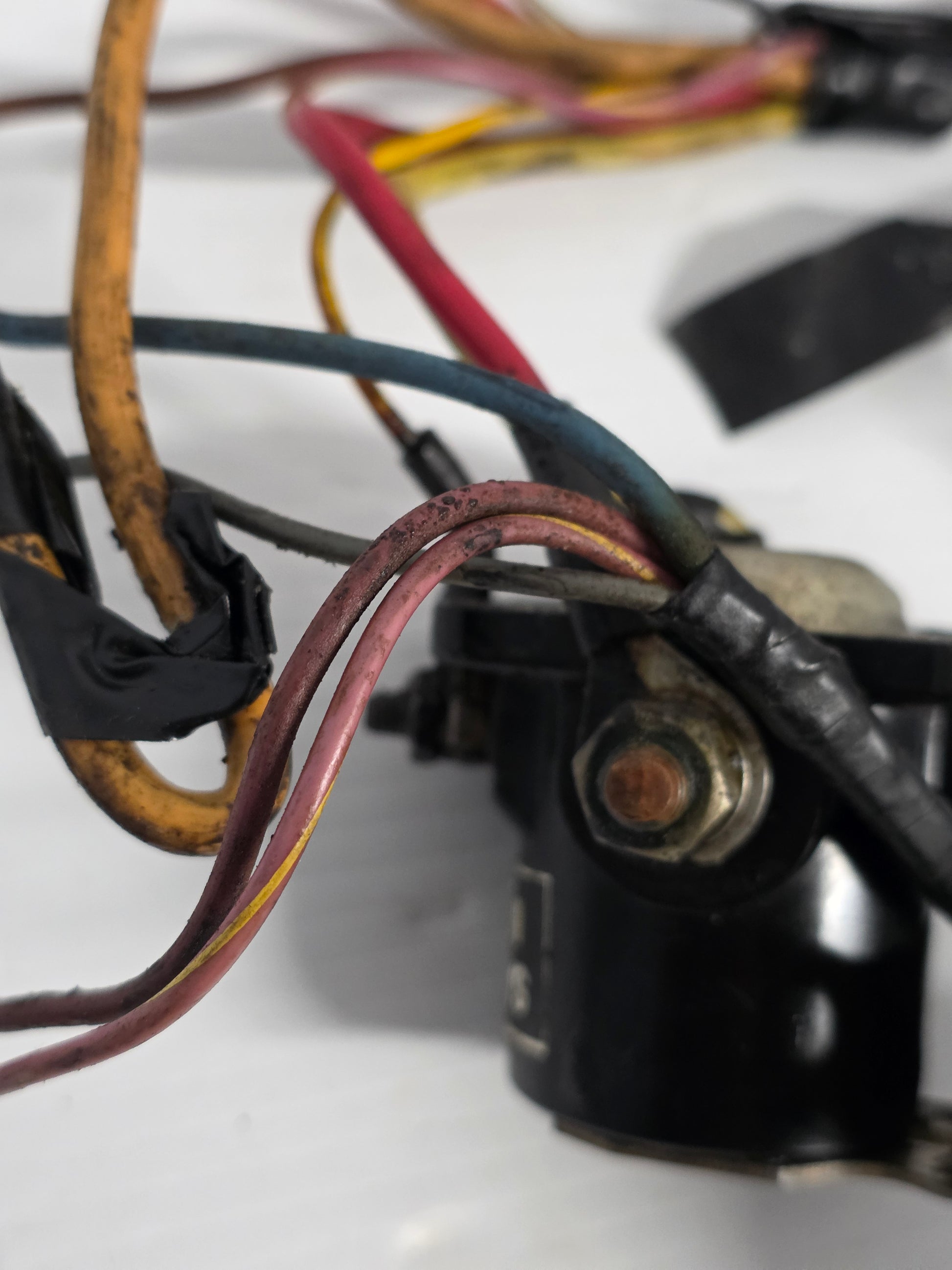

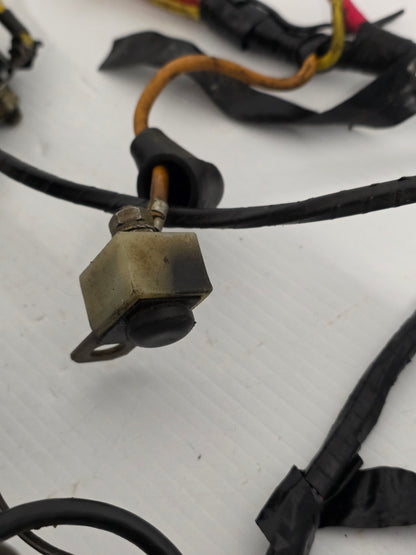

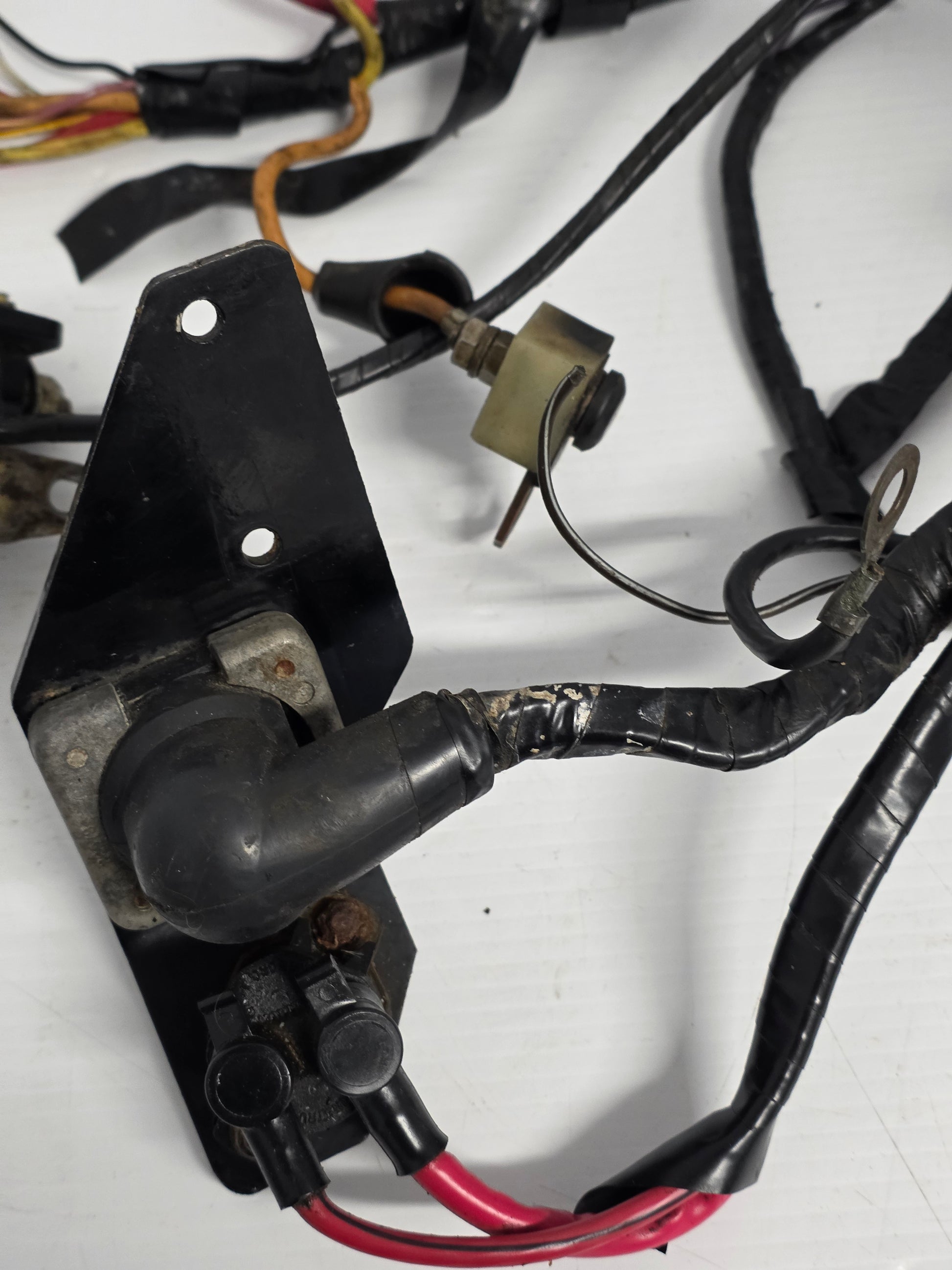

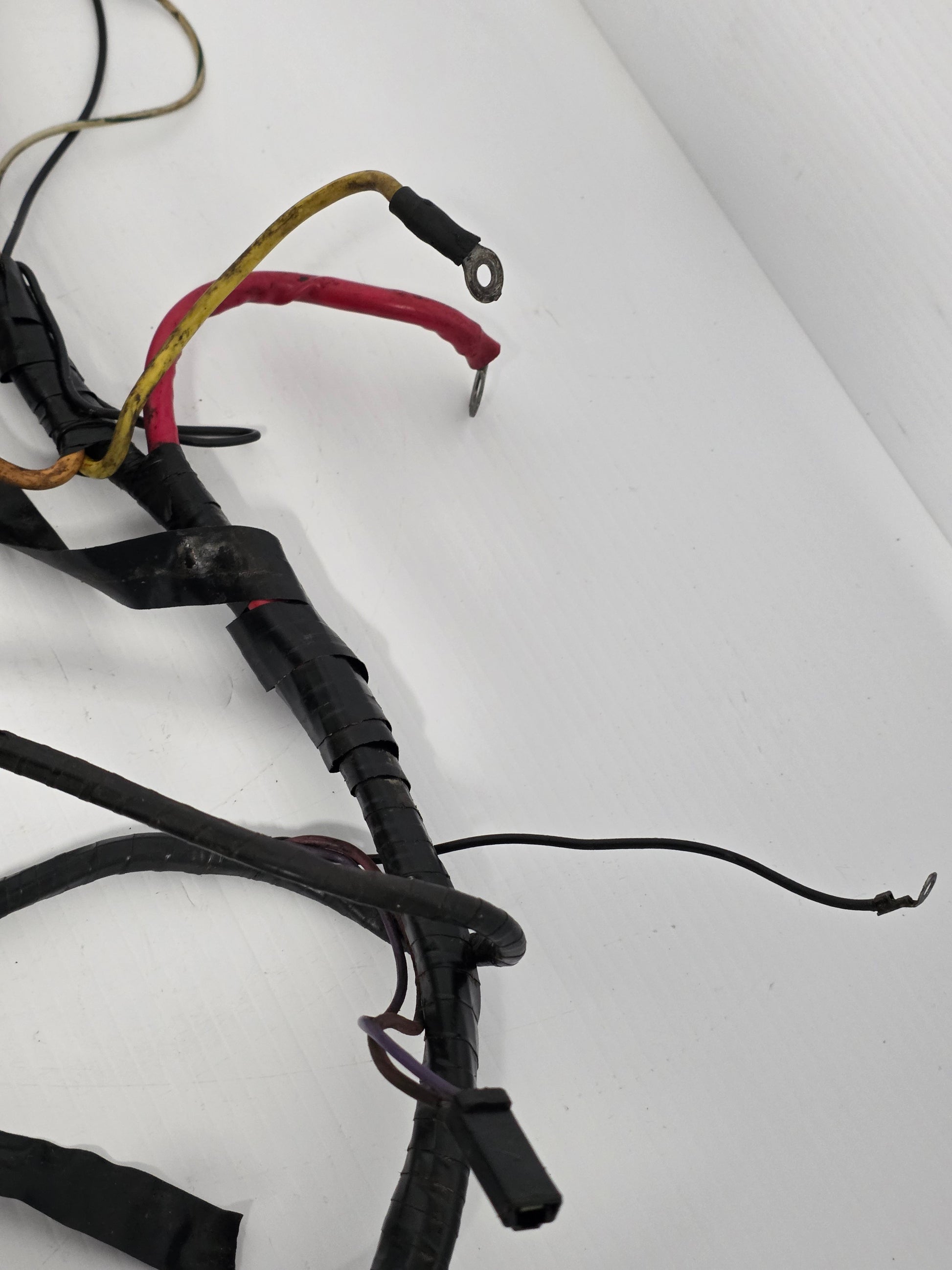

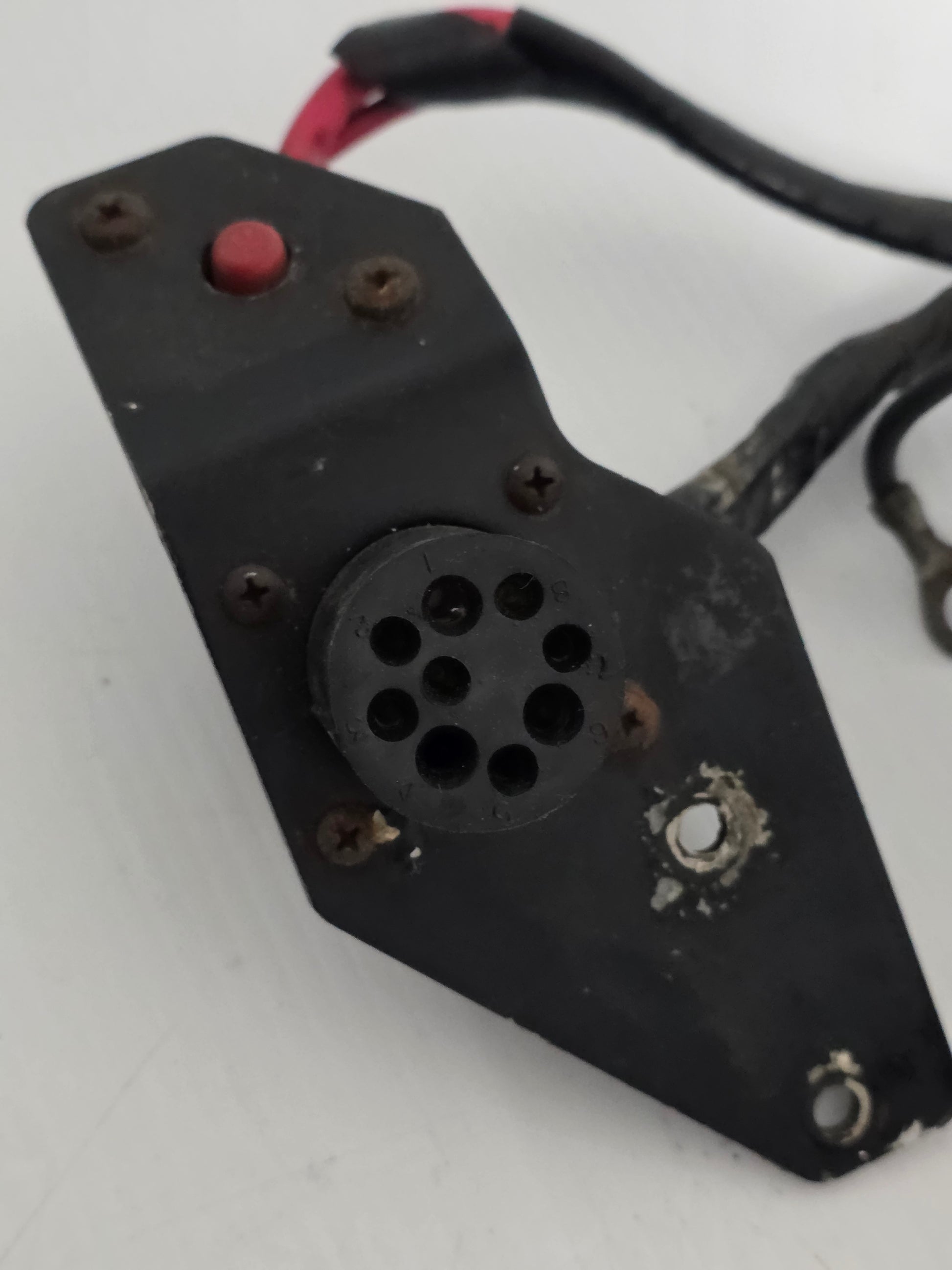

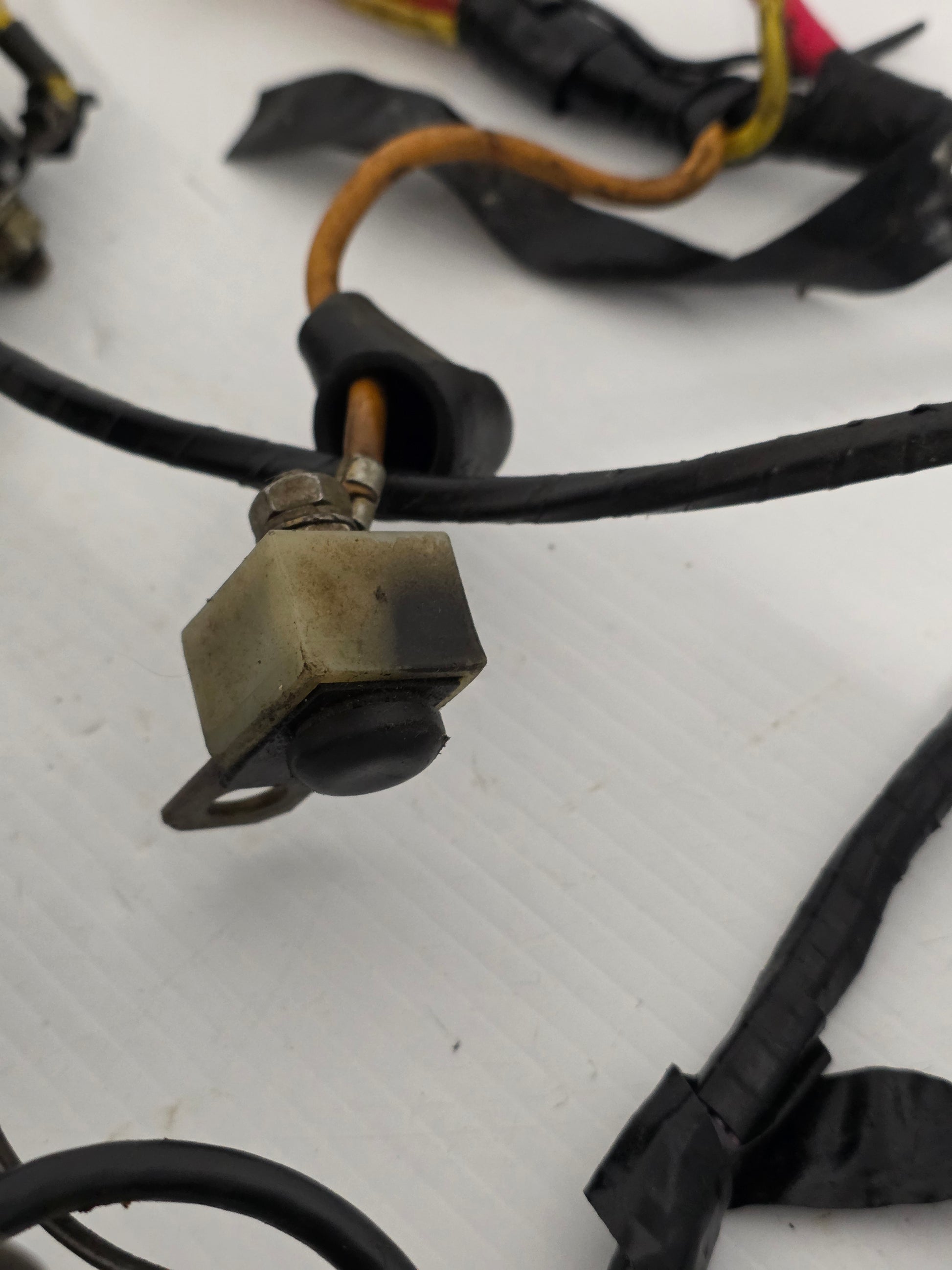

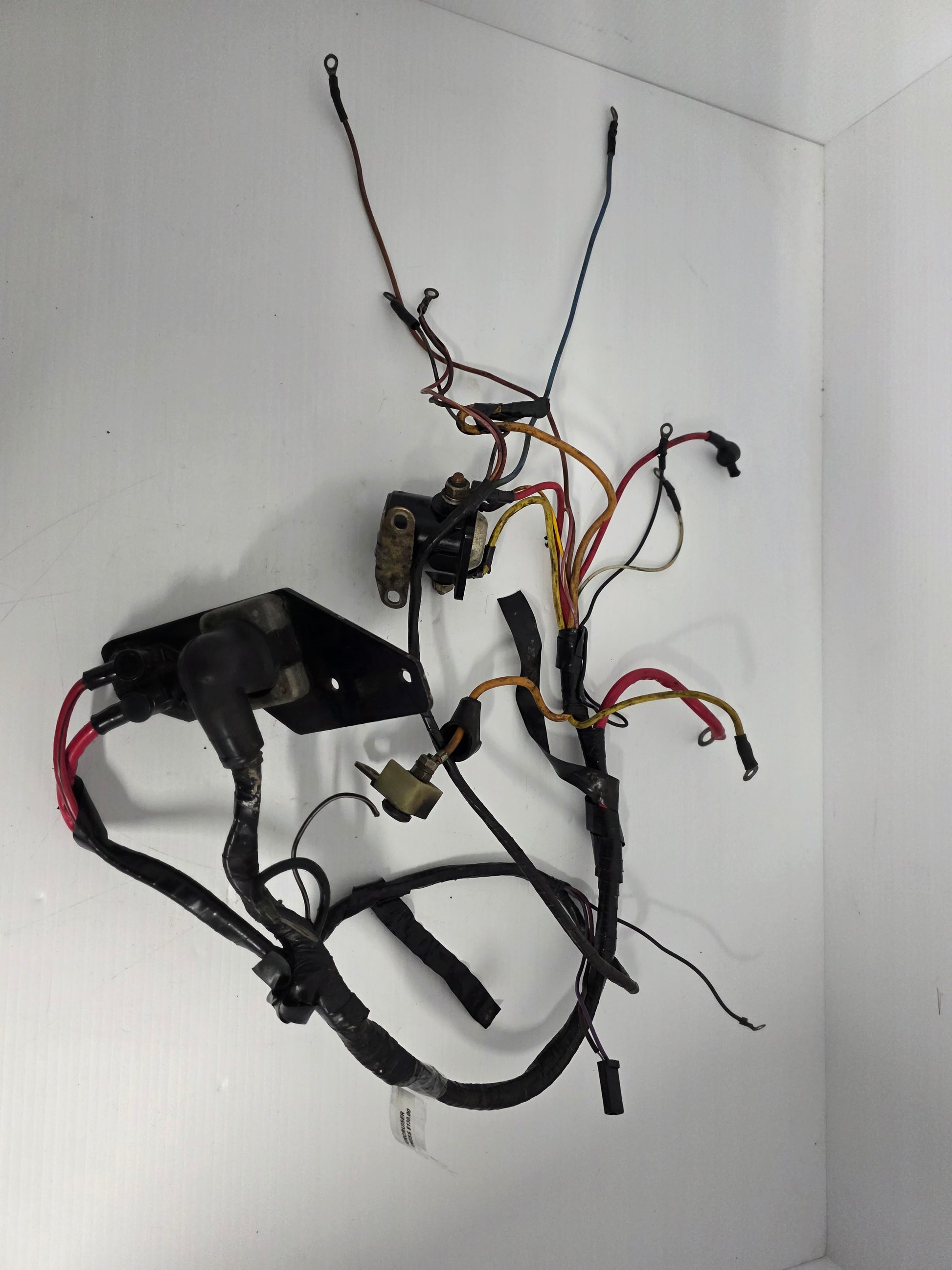

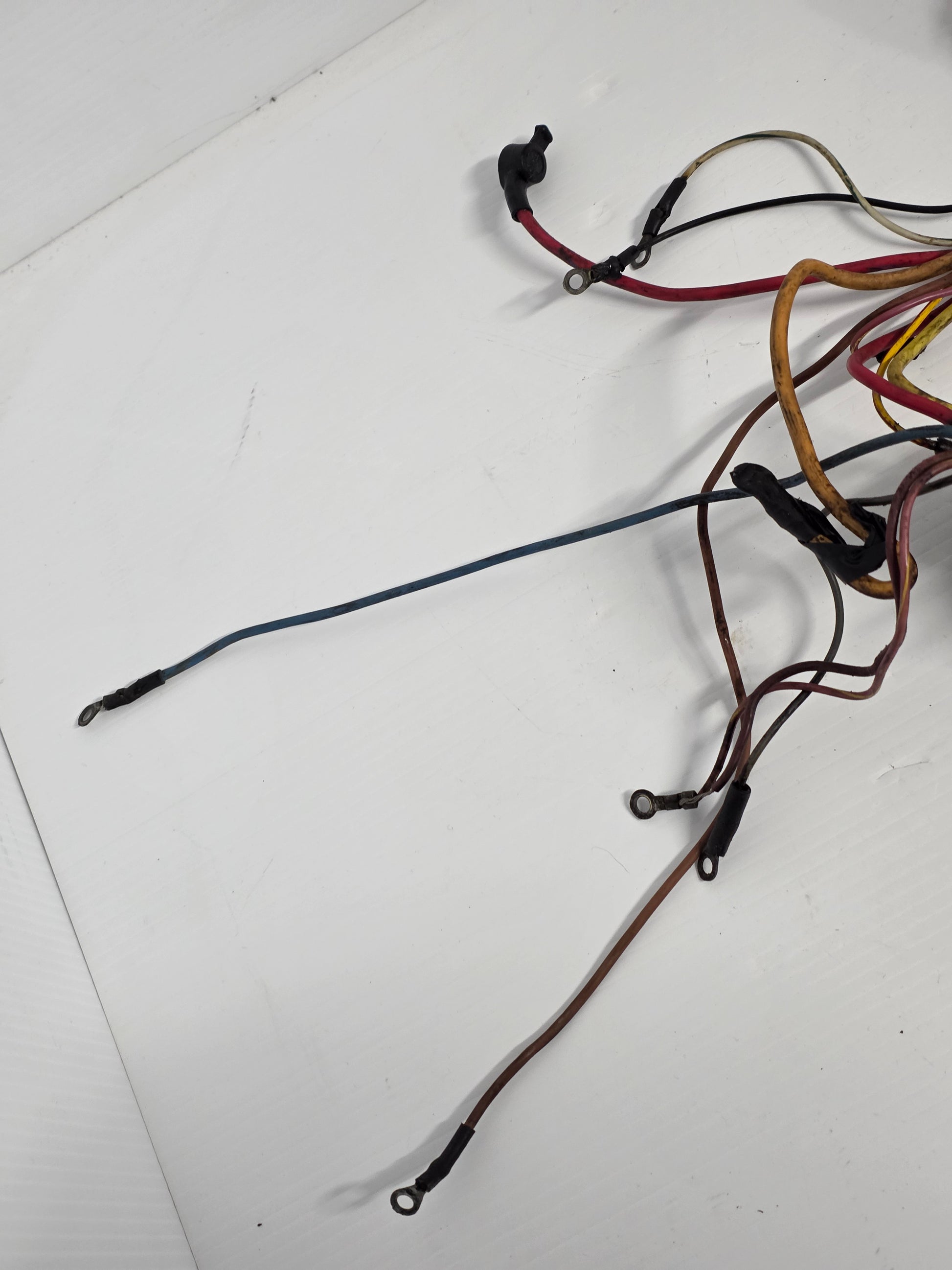

Genuine Mercury MerCruiser 3.7L Engine Wiring Harness - Part Number: 84-98269A9
A genuine used Mercury MerCruiser engine wiring loom for selected 3.7L / 224 CID inline four-cylinder petrol engines.
The harness connects the starter, alternator, ignition, sensors, instruments and boat-side control wiring. It belongs to the MerCruiser 470-family electrical system and must be matched to the engine serial range and fuse arrangement.
⚙️ Key Features
- Genuine Mercury MerCruiser engine wiring harness
- Correct later part number 84-98269A9
- Used on MerCruiser 3.7L / 224 CID engines
- Supports the factory charging, ignition and instrumentation circuits
- Related to several earlier 98269-series harness assemblies
🚤 Compatibility
Commonly used on
- MerCruiser 470-series petrol engines
- MerCruiser 3.7L and 3.7LX electrical systems
- Mercury 224 CID inline-four marine engines
Typically suits
- Engine models:
- MerCruiser 165
- MerCruiser 170
- MerCruiser 180
- MerCruiser 190
- MerCruiser 470
- MerCruiser 485
- MerCruiser 488
- MerCruiser 3.7L
- MerCruiser 3.7LX
- Serial-numbered applications using the corresponding 98269-series fuse and connector configuration
- HP Range: Approximately 165HP - 190HP
- Engine Type: Mercury 3.7L / 224 CID inline four-cylinder petrol marine engine
- Year Range: Approximately 1983 - 1989
🔌 Function
The harness distributes electrical power and control signals between the ignition system, charging circuit, starter, engine sensors, instruments and boat-side controls.
⚠️ Common Signs of Failure
- Engine cranks intermittently or not at all
- Ignition or charging system loses power
- Gauges and warning circuits behave erratically
- Main harness fuse or fuse holder overheats
- Brittle insulation, burnt plugs or corroded terminals
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 84-98269A9 later 98269-series harness reference
- 84-98269A5 earlier harness reference
- 84-98269A4 earlier harness reference
- 84-98269A3 earlier harness reference
- 84-98269A2 earlier harness reference
- 84-98269A1 earlier harness reference
OEM / Related Numbers
- 84-98269A9
- 98269A9
- 8498269A9
- 98269A5
- 98269A4
- 98269A3
- 98269A2
- 98269A1
- 98874A2 related / cross-referenced engine harness
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
Shipping & Delivery
Shipping & Delivery
Flat-rate shipping Australia-wide — $14.99 per order, no matter how many parts you add. Orders dispatch from our Kadina, South Australia store. Need it urgently or want to collect in person? Call us on 0412 532 984 before ordering.
Returns & Warranty
Returns & Warranty
14-day returns — if it's not right or you ordered the wrong part, tell us within 14 days of delivery and send it back in the condition you received it (return freight is at your cost; fitted parts can't be returned). Used parts are sale items, so a return may be limited to store credit. Full details in our Refunds & Returns policy.
What you get with this used part
What you get with this used part

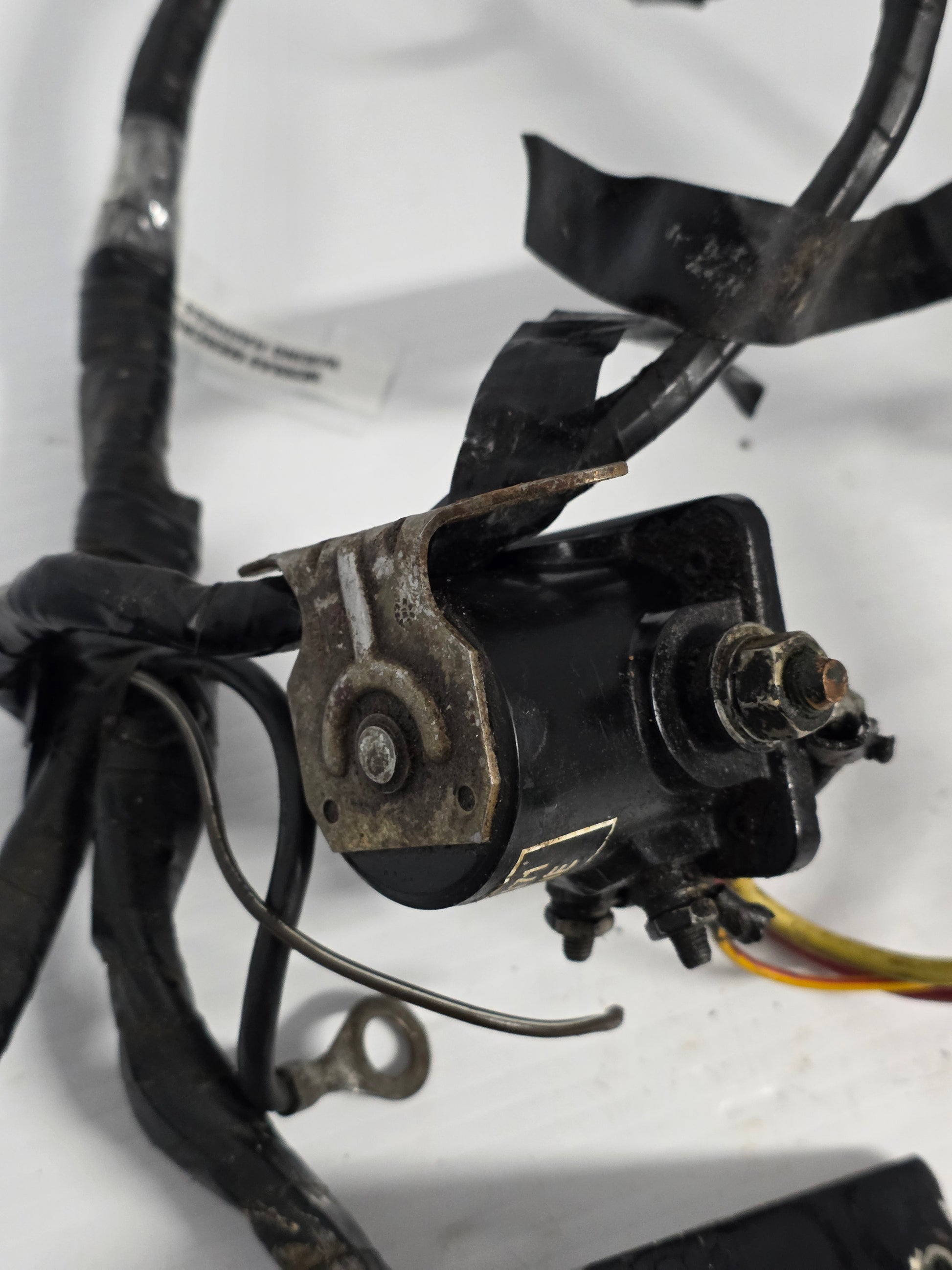

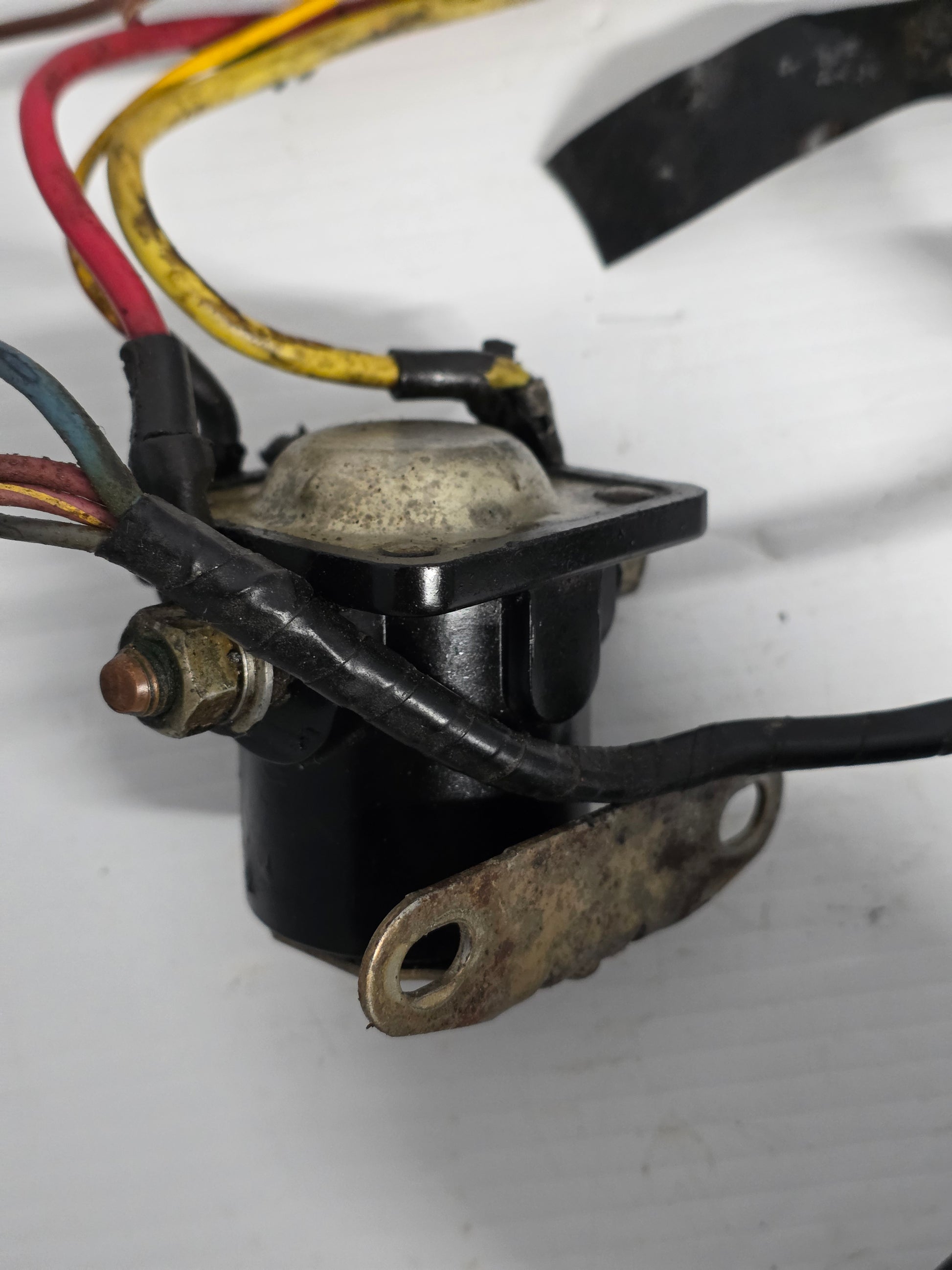

- A genuine part removed from an engine, drive or jet ski dismantled in our Kadina workshop, inspected before listing. The photos show the actual part on our shelf.
