984747 Flange Screw | Genuine Volvo Penta Part

🔧 Product Description

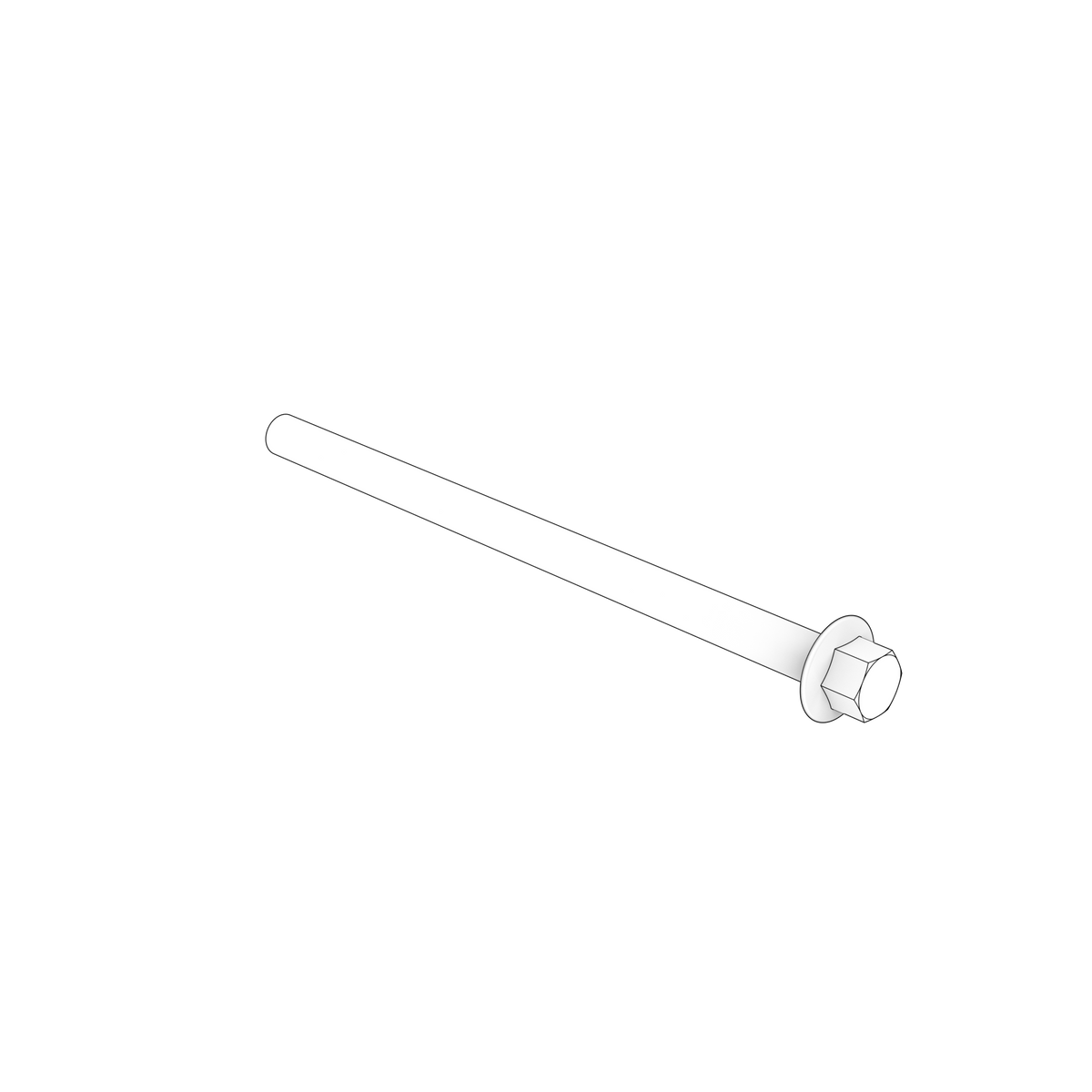

Genuine Volvo Penta flange screw, M8 thread and 130 mm long, weighing 0.054 kg and listed for 121 applications across the V, D and TWD ranges. It replaces part numbers 968999 and 3884908, the first of which was catalogued earlier as a hexagon screw.

🚤 Compatibility

• Engine Family: V, D, TWD
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• M8 thread, 130 mm long
• 0.054 kg
• Replaces 968999 and 3884908
• 121 applications across the V, D and TWD ranges
• M8x130mm (Volvo assembly listing)
• Quantity varies by assembly, most commonly two
• Also supersedes Volvo part number 471590

🔌 Function

Clamps a deep joint together, the long M8 shank passing through the stack with the flange bearing at the head.

⚠️ Common Signs of Failure

• Joint loosening or weeping under load
• Flange bent or cracked at the head
• Shank bent, necked or stretched
• Thread stripped or seized in the casting
• Corrosion along the exposed shank

🛠️ Service Notes

• Important - the old number 3884908 is replaced by two current screws, this one and 984675, which are very different lengths; ordering only one of the pair can leave the job short, so check which position each is needed for
• Order by the measured thread and length - the published weights across this family do not run in step with length

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 984747 → Supersedes 968999 → Supersedes 955310 → Supersedes 100244

OEM / Related Numbers

• 968999 earlier number superseded by this part
• 955310 earlier number superseded by this part
• 902297 earlier number superseded by this part
• 100244 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S
• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-480A-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta D13C2-B MP, D13C7-B MP
• Volvo Penta D8A2-A MP, D8A4-A MP
• Volvo Penta TWD1744GE
