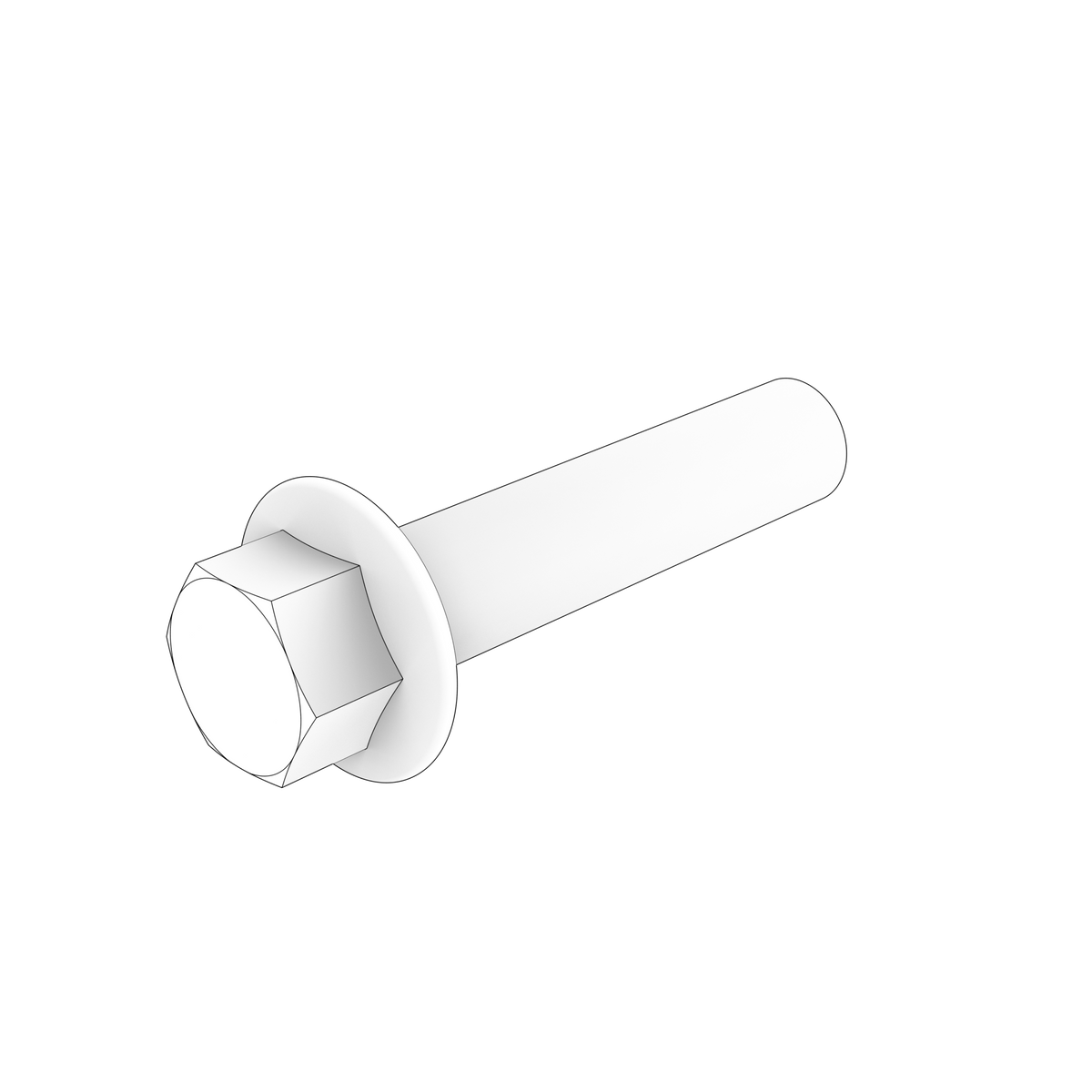

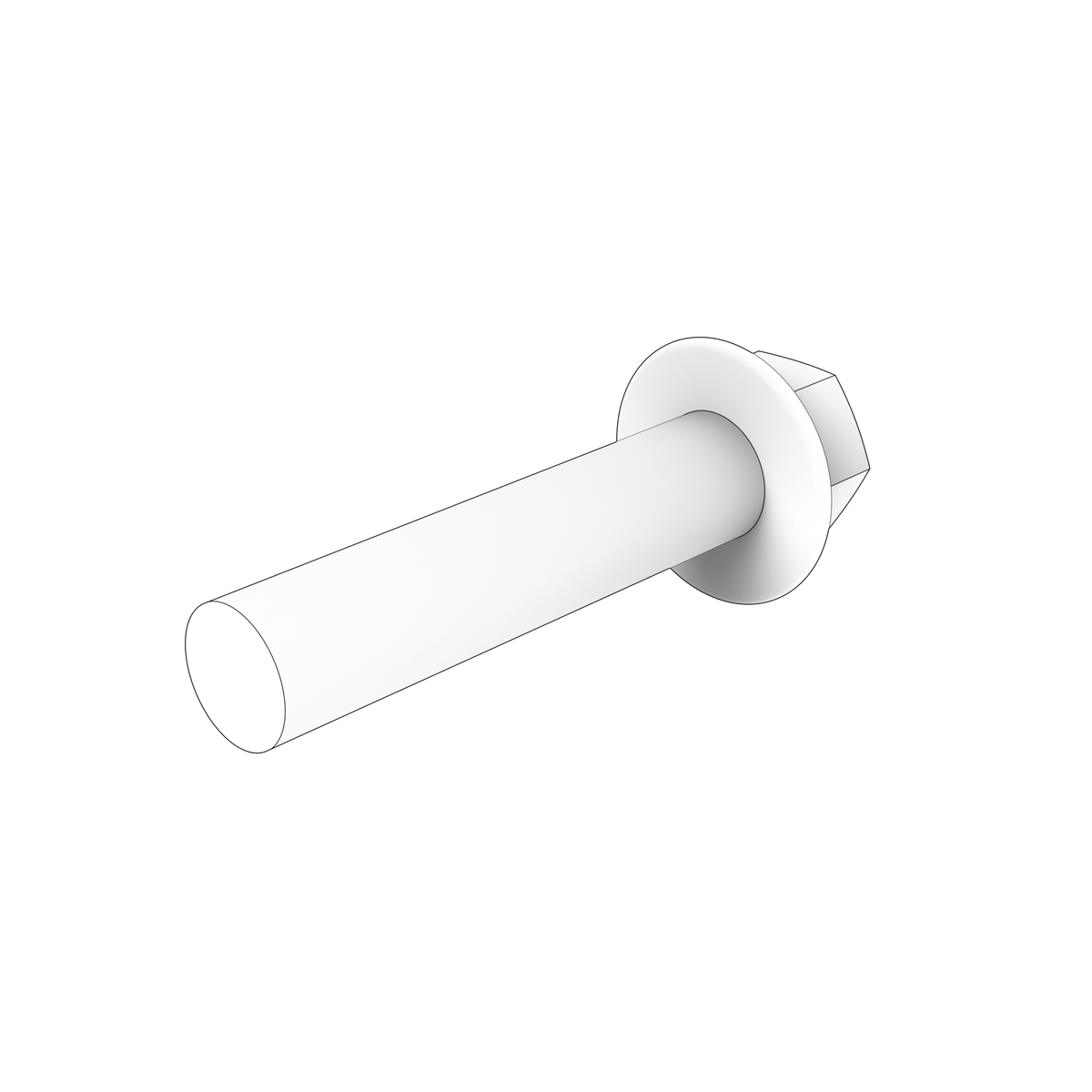

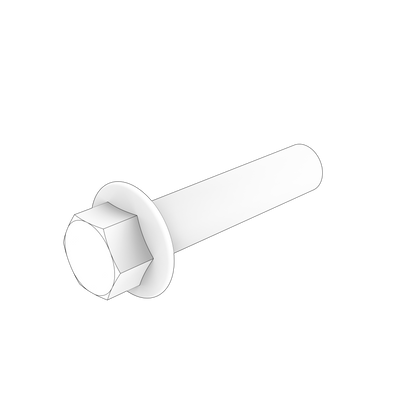

990862 Flange Screw | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta flange screw with an M10 x 45 mm thread, weighing 0.039 kg and listed for 70 applications across the V, TAD, D, DPH and DPI ranges. It replaces part numbers 21790519 and 965220 - and 21790519 is replaced by two current parts, this screw and flange nut 990939, so both are needed to make up what that one number used to supply.

🚤 Compatibility

• Engine Family: V, TAD, D, DPH, DPI
• HP Range: 150-480 HP

Full model list at the end of this description.

⚙️ Key Features

• M10 x 45 mm
• 0.039 kg
• 70 applications across five ranges
• Replaces 21790519 and 965220
• 21790519 now takes this screw and flange nut 990939 together
• L=50mm / M10x45mm (Volvo assembly listing)
• Quantity varies by assembly, most commonly one
• Also supersedes Volvo part numbers 3580296, 3589022 and 859777

🔌 Function

Clamps a joint with an integral flange under the head, spreading the load over the surface without a separate washer.

⚠️ Common Signs of Failure

• Joint loosening or weeping under load
• Flange face under the head scored
• Thread stretched, galled or stripped
• Head corroded so the socket will not seat

🛠️ Service Notes

• If you are ordering against old number 21790519, order flange nut 990939 as well - that number is now made up of two current parts and ordering this screw alone leaves the job short
• Measure the screw you are replacing: this one is M10 x 45 mm, while the other threaded screws in this run are M12

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 990862 → Supersedes 21790519

OEM / Related Numbers

• 965220 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-440A-G, D6-480A-G
• Volvo Penta D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta DPH-E
• Volvo Penta DPI-A
• Volvo Penta TAD1341-43GE-B
• Volvo Penta TAD1344-45GE-B
