991009 Shim | Genuine Volvo Penta Part

🔧 Product Description

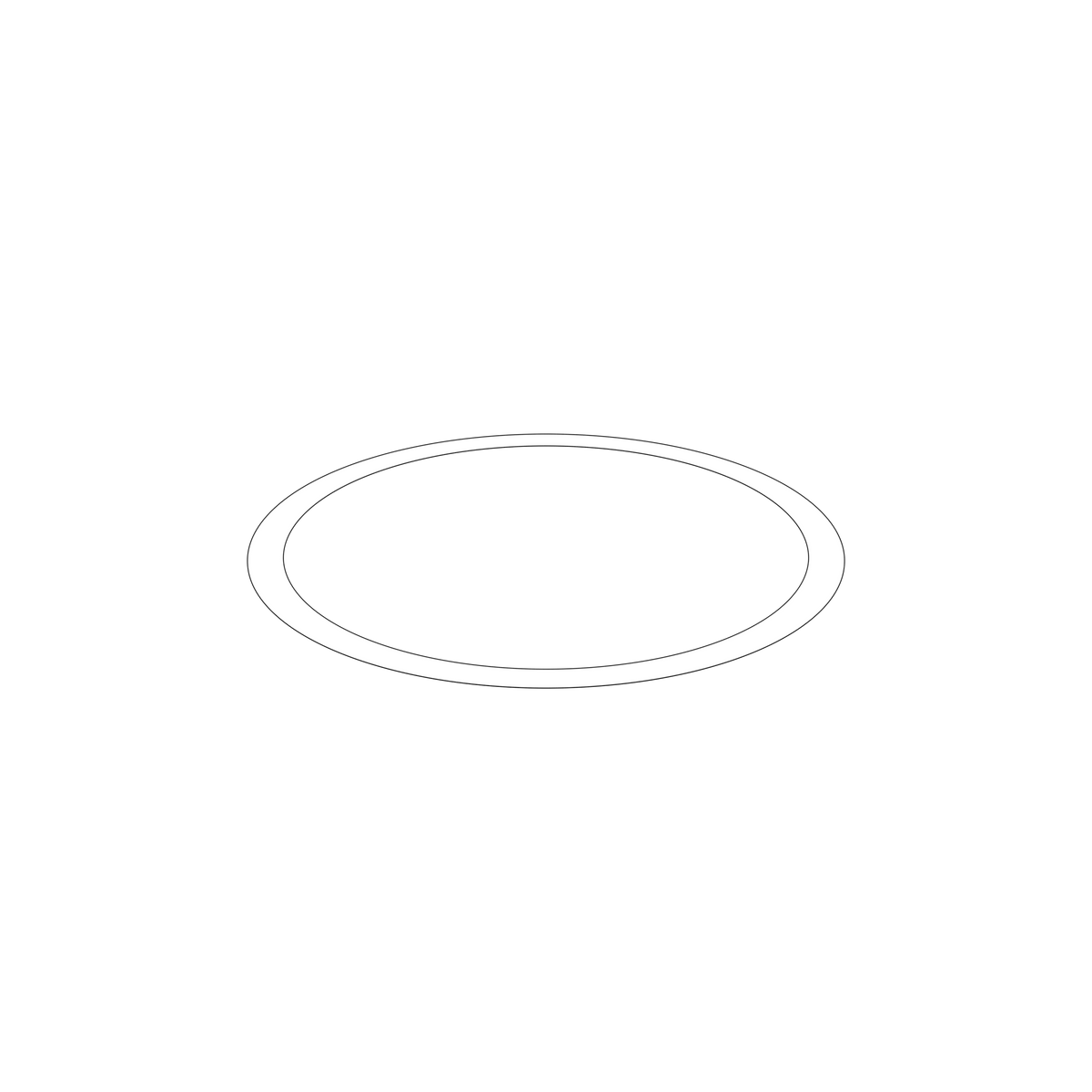

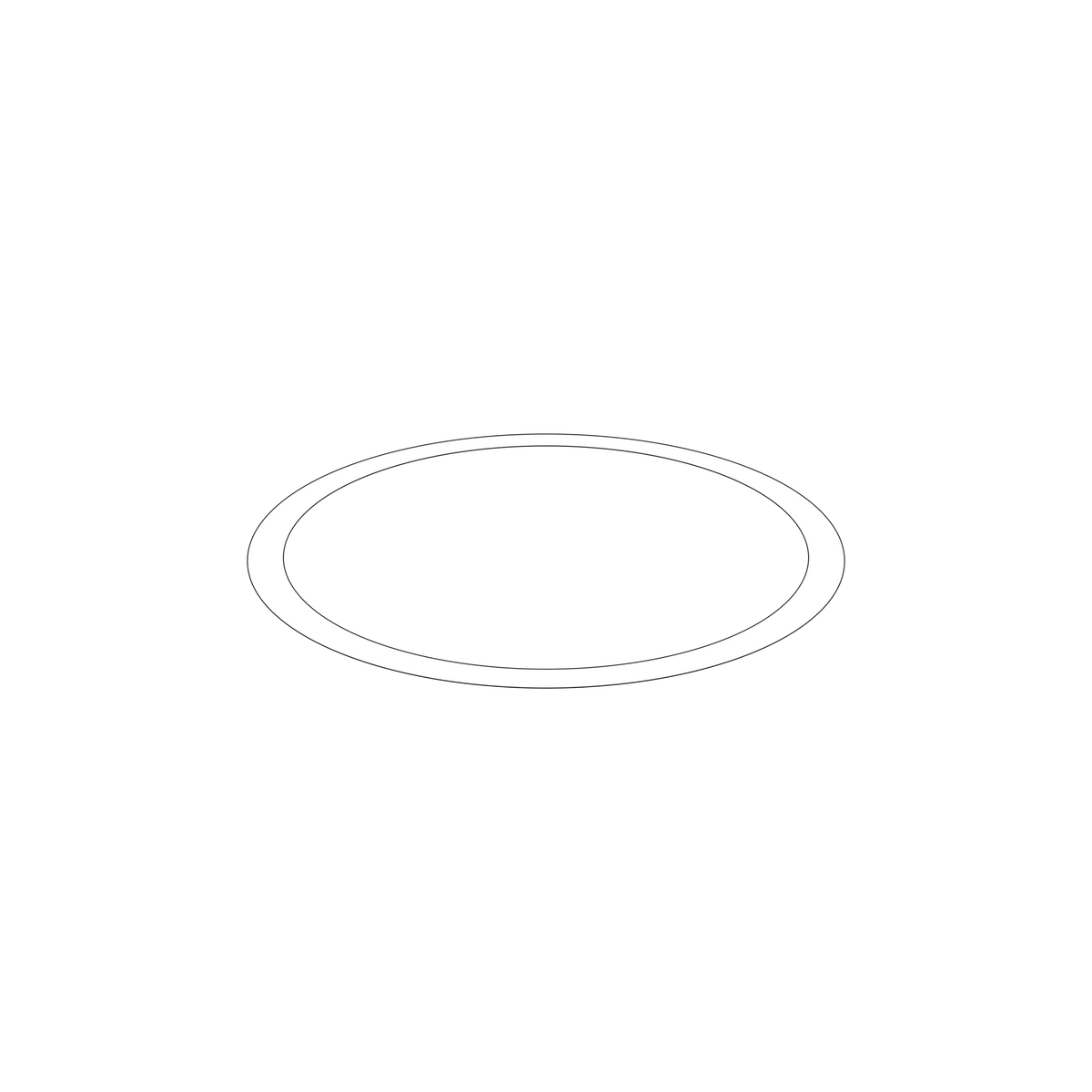

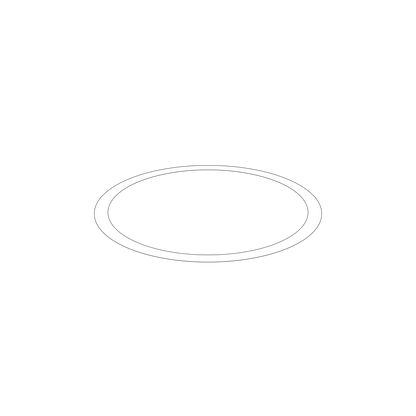

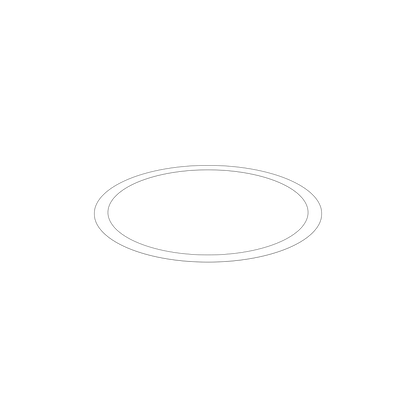

Genuine Volvo Penta shim, 0.15 mm thick, listed for 19 applications across the D and IPS series and weighing 0.007 kg. It belongs to a graded pair: 991010 is the 0.35 mm step and shares exactly the same 19-application fitment. Four separate shim families in this run use the same 0.10 / 0.15 / 0.35 mm steps, so the application count matters as much as the thickness — the 30-application family is 991097, 991098 and 991099, the 35-application family is 991100, 991101 and 991102, and the 18-application family is 993258, 993259 and 993260.

🚤 Compatibility

Typically suits:

• Volvo Penta D11C2-A MP
• Volvo Penta D13C2-B MP
• Volvo Penta D11C4-A MP
• Volvo Penta IPS30-E
• Volvo Penta D11B4-A MP
• Volvo Penta D11B2-A MP
• Volvo Penta D11A-C MP
• Volvo Penta D11A-D MP
• Volvo Penta D11A-E MP
• Volvo Penta IPS20-D
• Volvo Penta IPS2-C
• Volvo Penta D13C4-B MP
• Volvo Penta D13C5-B MP
• Volvo Penta D8A4-A MP
• Volvo Penta IPS2-A
• Volvo Penta IPS2-B
• Volvo Penta D13C7-B MP
• Volvo Penta IPS20-E
• Volvo Penta D13C8-B MP

• Engine Family: D, IPS

⚙️ Key Features

• 0.15 mm thick
• 0.007 kg
• 19 applications across the D and IPS series
• Graded pair with the 0.35 mm shim 991010
• Same thickness steps as three other shim families here — match the application count too

🔌 Function

Packs out an assembly stack by a measured amount so the clearance or preload falls inside specification.

⚠️ Common Signs of Failure

• Whine, rumble or growl from the assembly the shim sits in
• Noticeable end float or free play at the shaft
• Clearance or preload measuring outside specification on reassembly
• Shim found fretted, bright-polished or dished when stripped out
• Measured thickness down on the stamped size

🛠️ Service Notes

• Order by the stamped or measured thickness — published weights are not a reliable guide across a graded shim set
• Measure the old shim and the assembled clearance at the bench before ordering; the grade is decided by measurement, not by the number that came out

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
