A029U129 Aftermarket Cummins/Onan Seawater Pump 132-0356, 132-0414, 132-0413, 132-0350, Sherwood G1010 | Sawley's Select Marine Parts

🔧 Product Description

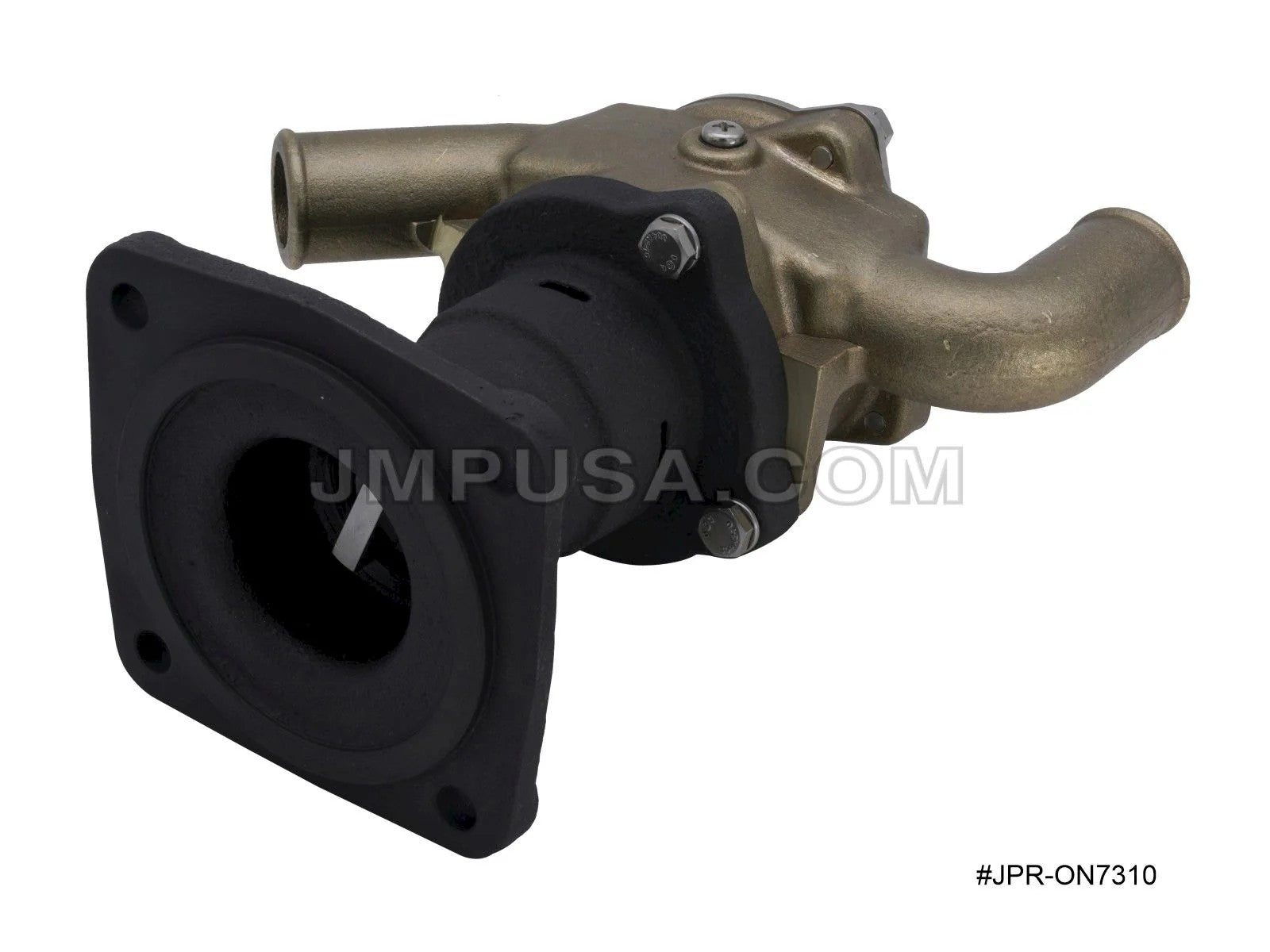

Aftermarket replacement G1010 Generator Seawater Pump - Part Number: JPR-ON7310

New aftermarket engine-cooling seawater pump for Cummins Onan generator engines using A029U129, Onan pump families using 132-0413, 132-0414, 132-0356, 132-0350 and related numbers. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Corrected aftermarket pump designation is JPR-ON7310; A029U129 is an Onan OEM reference.

⚙️ Key Features

• Direct aftermarket replacement for JPR-ON7310

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Engine-driven generator seawater pump

• Port configuration: Generator-engine hose ports

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

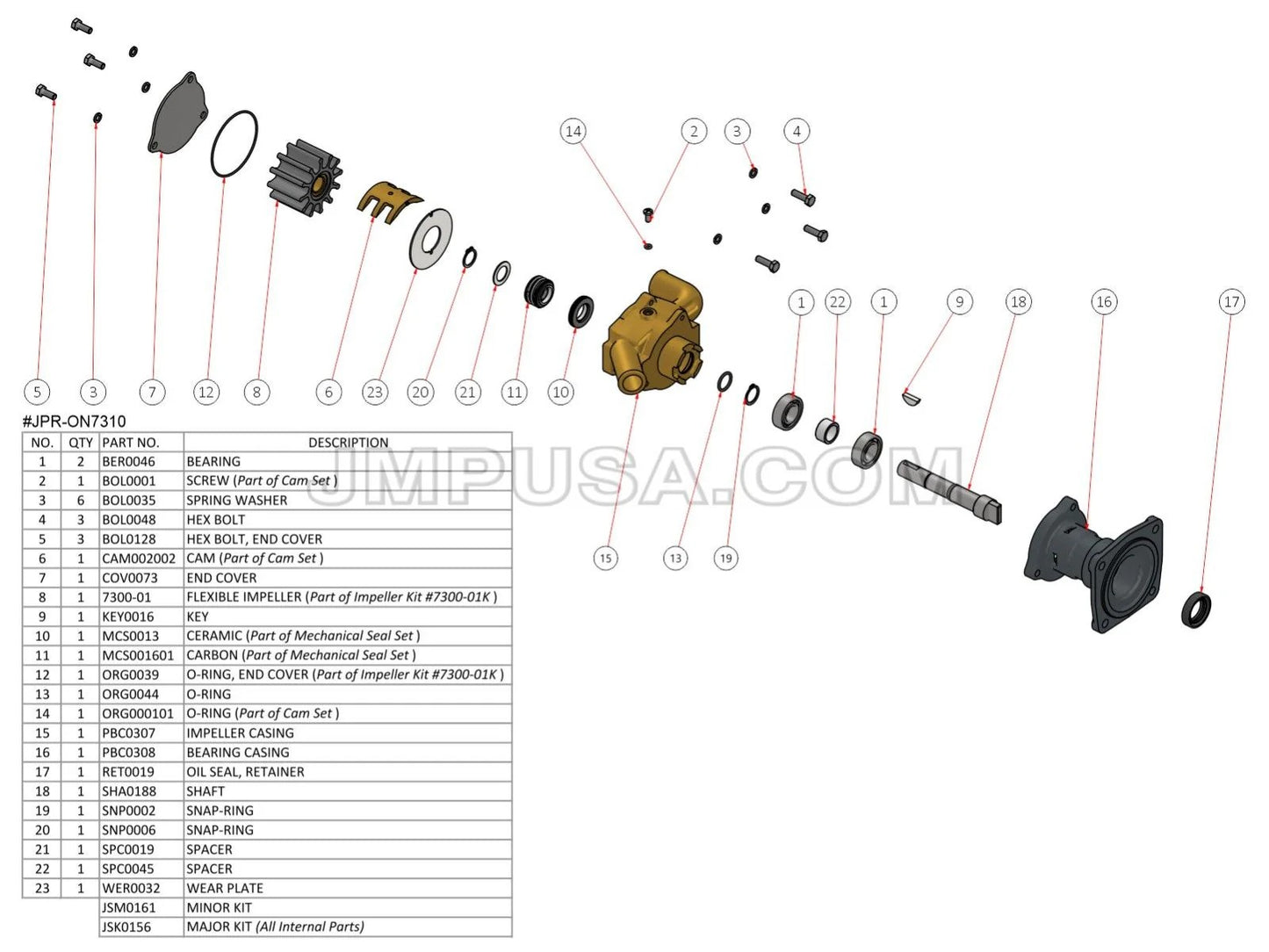

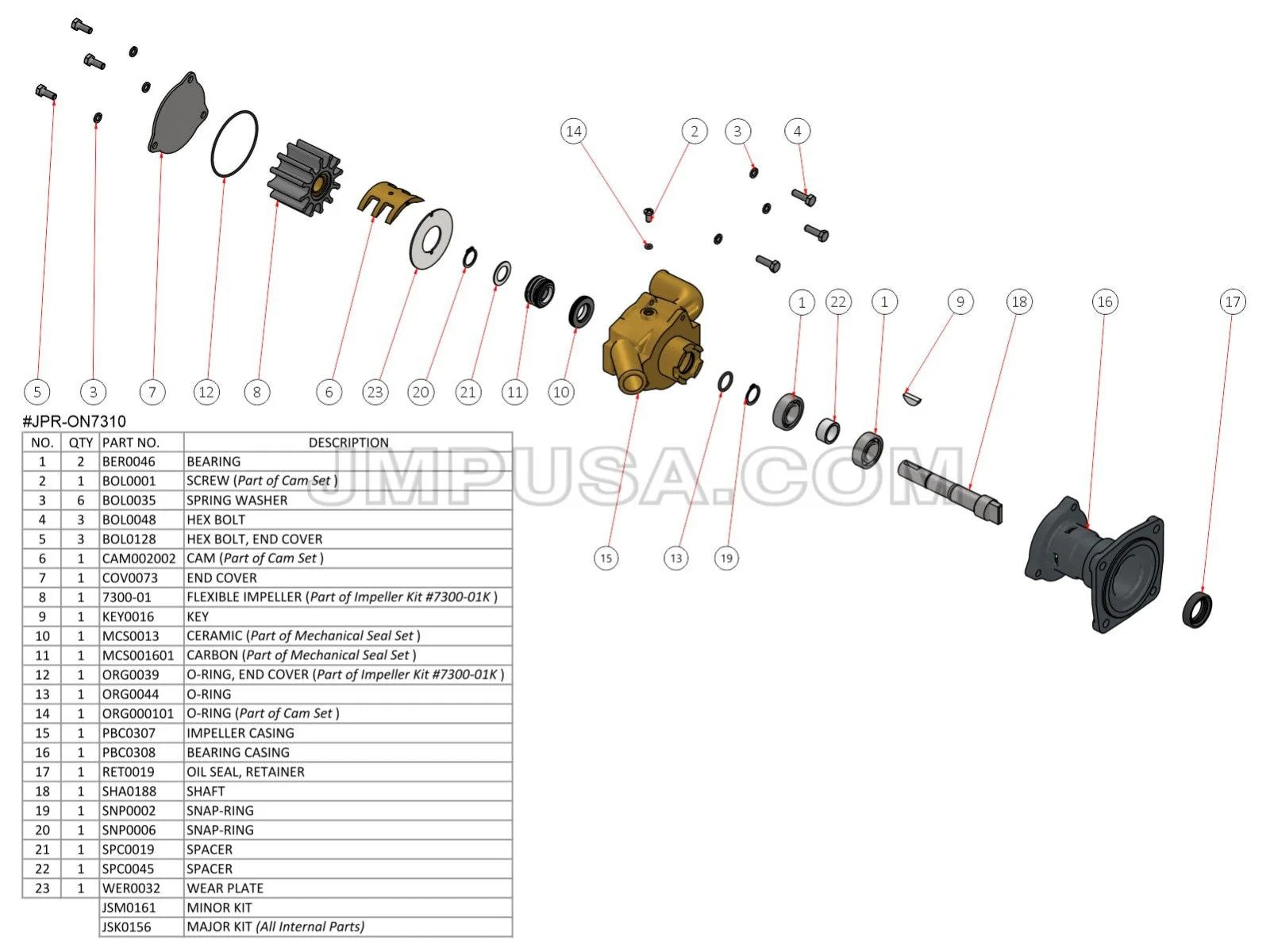

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-ON7310

• 1 × Installed impeller - Installed G1010-family flexible impeller

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Confirm mounting flange, pulley and hose direction

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-ON7310 → Replaces / cross-references A029U129

• JPR-ON7310 → Replaces / cross-references 132-0413

• JPR-ON7310 → Replaces / cross-references 132-0414

• JPR-ON7310 → Replaces / cross-references 132-0356

• JPR-ON7310 → Replaces / cross-references 132-0350

• JPR-ON7310 → Replaces / cross-references 132-0347

• JPR-ON7310 → Replaces / cross-references 132-0343

OEM / Related Numbers:

• A029U129

• 132-0413

• 132-0414

• 132-0356

• 132-0350

• 132-0347

• 132-0343

Aftermarket / Verified Equivalents:

• Sherwood: G1010

• JMP Marine: JPR-ON7310

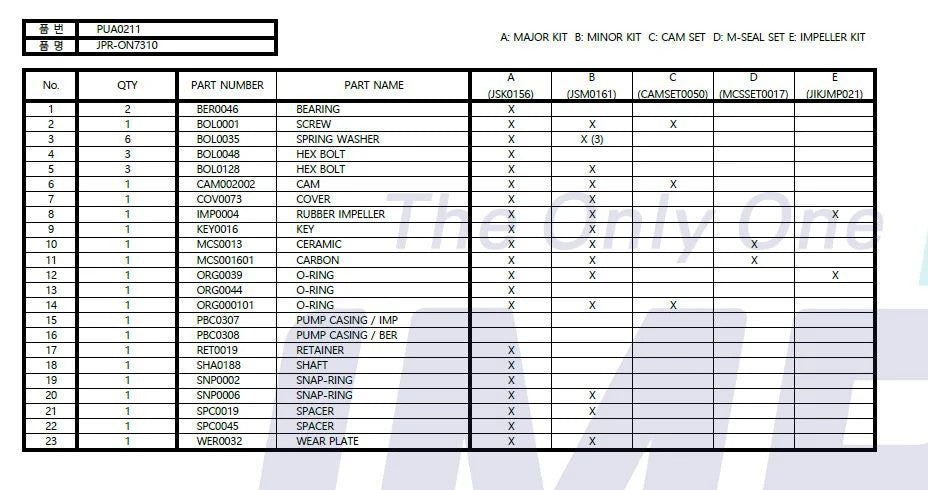

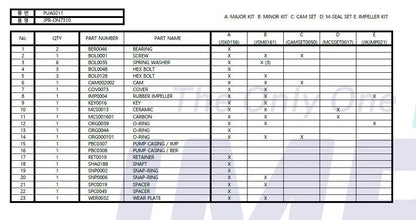

Service Parts / Kits:

• JMP service kits for JPR-ON7310

🚤 Compatibility

Commonly used on:

• JMP Marine / Cummins Onan marine engine-cooling systems

Typically suits:

• Engine models:

• Cummins Onan generator engines using A029U129

• Onan pump families using 132-0413, 132-0414, 132-0356, 132-0350 and related numbers

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

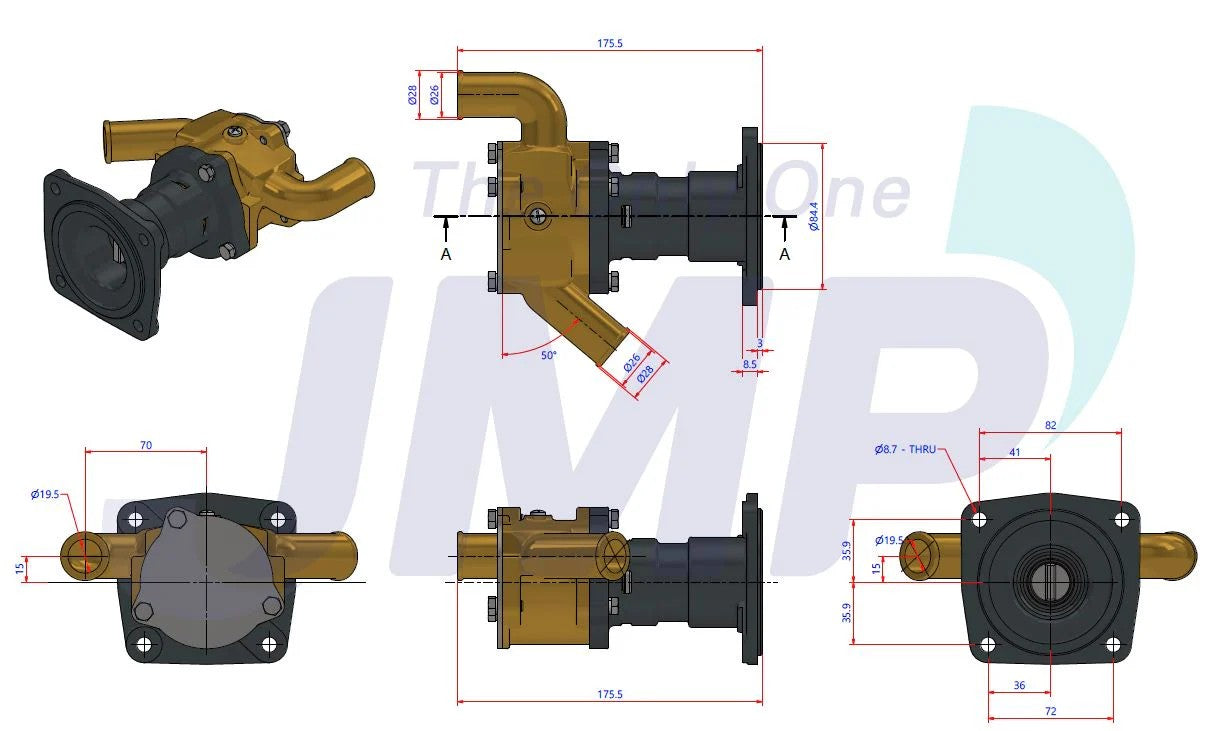

• Port / Drive Identification: Generator-engine hose ports; Engine-driven generator seawater pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
