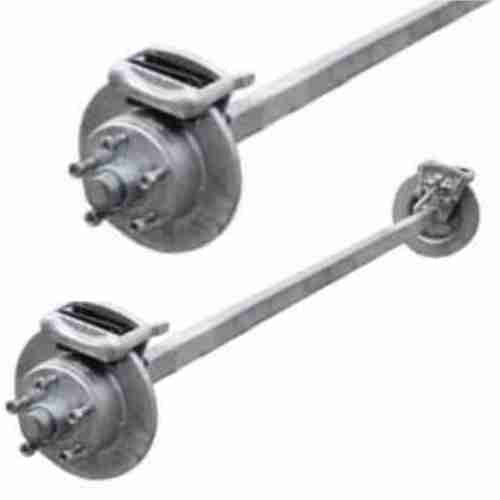

A1253 Mackay Axle 45 Square Overlay Lazy 2320mm (91") | Marine Trailer Part
A1253 Mackay Axle 45 Square Overlay Lazy 2320mm (91") | Marine Trailer Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description
Genuine Mackay Marine Trailer Products 45mm square overlay Trailer Axle – Overlay Lazy Axle – 2320mm – Part Number: A1253
A genuine Mackay 45mm square overlay marine-trailer axle with a nominal length of 2320mm (91"). This version is supplied as a overlay lazy axle and uses the Slimline bearing family where hubs or brake assemblies are fitted. This is the 2,320mm A1253 catalogue/application row.
⚙️ Key Features
- 45mm square overlay axle construction
- Unbraked/lazy hub configuration
- Overlay/drop geometry alters hub height relative to the main axle beam
- Galvanised or corrosion-protected marine-trailer finish
- Machined stub-axle journals suit the specified bearing family
- Designed for replacement or custom trailer running-gear assembly
📏 Specifications
- Nominal axle length: 2320mm (91")
- Axle beam: 45mm square overlay
- Configuration: overlay lazy axle
- Bearing family: Slimline
- Hub/stud pattern: 5-stud Ford pattern
- Confirm whether the quoted length is hub-face, shoulder or overall assembly length before replacement
- Spring centres, axle offset/drop and brake-mount orientation must match the trailer
📋 Supplied Components
- 1 × Complete axle assembly as described
🔄 Cross Reference & Related Parts
- Use only hubs, bearings, seals, brakes and dust caps matching the machined stub profile
- Comparable axles must match beam section, hub face, spring centres, drop/overlay, bearing profile and brake type
🚤 Compatibility & Application
- Mackay marine trailers and custom trailers requiring the exact axle geometry stated
- Measure hub face, spring centres, beam section, brake-mount position and chassis clearance before ordering
- Axle capacity is determined by the complete engineered assembly—not beam size alone
- Brake configuration must comply with current trailer ATM and road regulations
- After installation, set wheel-bearing preload, wheel-nut torque, brake adjustment and alignment to specification
🔌 Function
Carries the trailer load between the suspension and wheel hubs while maintaining wheel alignment; braked versions also provide the mounting and rotating components required to apply trailer braking.
⚠️ Common Signs of Failure
- Axle beam or stub is bent, cracked or heavily corroded
- Tyres wear unevenly or the trailer no longer tracks straight
- Bearing journals are scored, pitted or undersize
- Hub face or brake mounts have excessive runout
- Spring seats, welds or overlay sections are loose or damaged
📦 Condition
- Genuine Mackay Marine Trailer Products part
- Brand new
- Supplied in original or equivalent packaging
