A66091 Raymarine B744V 600W Depth, Speed & Temp Bronze Through Hull Retractable Transducer (includes E66023 Fairing Block) | Raymarine Electronics
A66091 Raymarine B744V 600W Depth, Speed & Temp Bronze Through Hull Retractable Transducer (includes E66023 Fairing Block) | Raymarine Electronics
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description
A66091 Raymarine B744V 600W Depth, Speed & Temp Bronze Through Hull Retractable Transducer (includes E66023 Fairing Block) - Part Number: A66091
Bronze, 600W, Dual Frequency (50/200 kHz) for CP370 Sonar
Model: B744V Transducer w/ E66023 Fairing Block

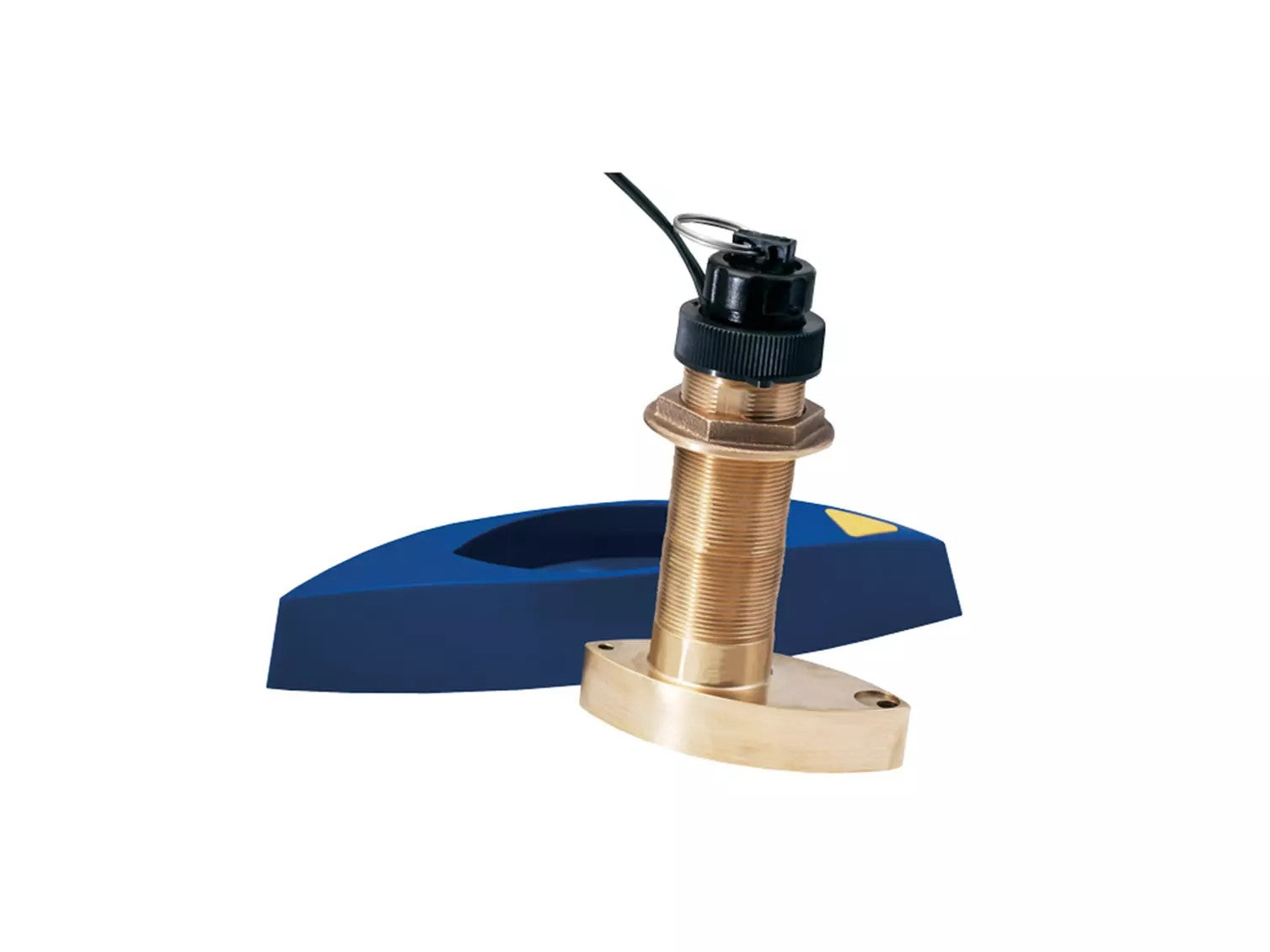

B744V Overview
Operating at both 50 kHz and 200 kHz, the B744V TRIDUCER Multisensor provides you with depth, speed, and temperature in one thru-hull housing. This unit is ideal for all 600-Watt fishfinders and requires only a single hole in the hull.
The B744V’s patented valve assembly prevents water from rushing into the hull when the insert is removed for cleaning or storage.
The innovative housing design allows the TRIDUCER Multisensor to be fully recessed into its custom High-Performance Fairing. The end result is a streamlined installation. At speeds above 30 knots (34 MPH), the B744V will produce clear images and solid bottom tracking!
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| General Specifications | |
|---|---|
| Mount | Through-Hull |
| Material | Bronze |
| Power (RMS) | 600W |
| Max Depth | 1,200 Ft. (L) / 700 Ft. (H) |
| Frequency | 50 / 200 kHz |
| Beam Width | 45° / 12° |
| Records | Depth / Speed / Temperature |
| Hull Material | Fiberglass / Wood |
| Cable Length | 33 Ft. / 10 M. |
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
