🔧 Product Description

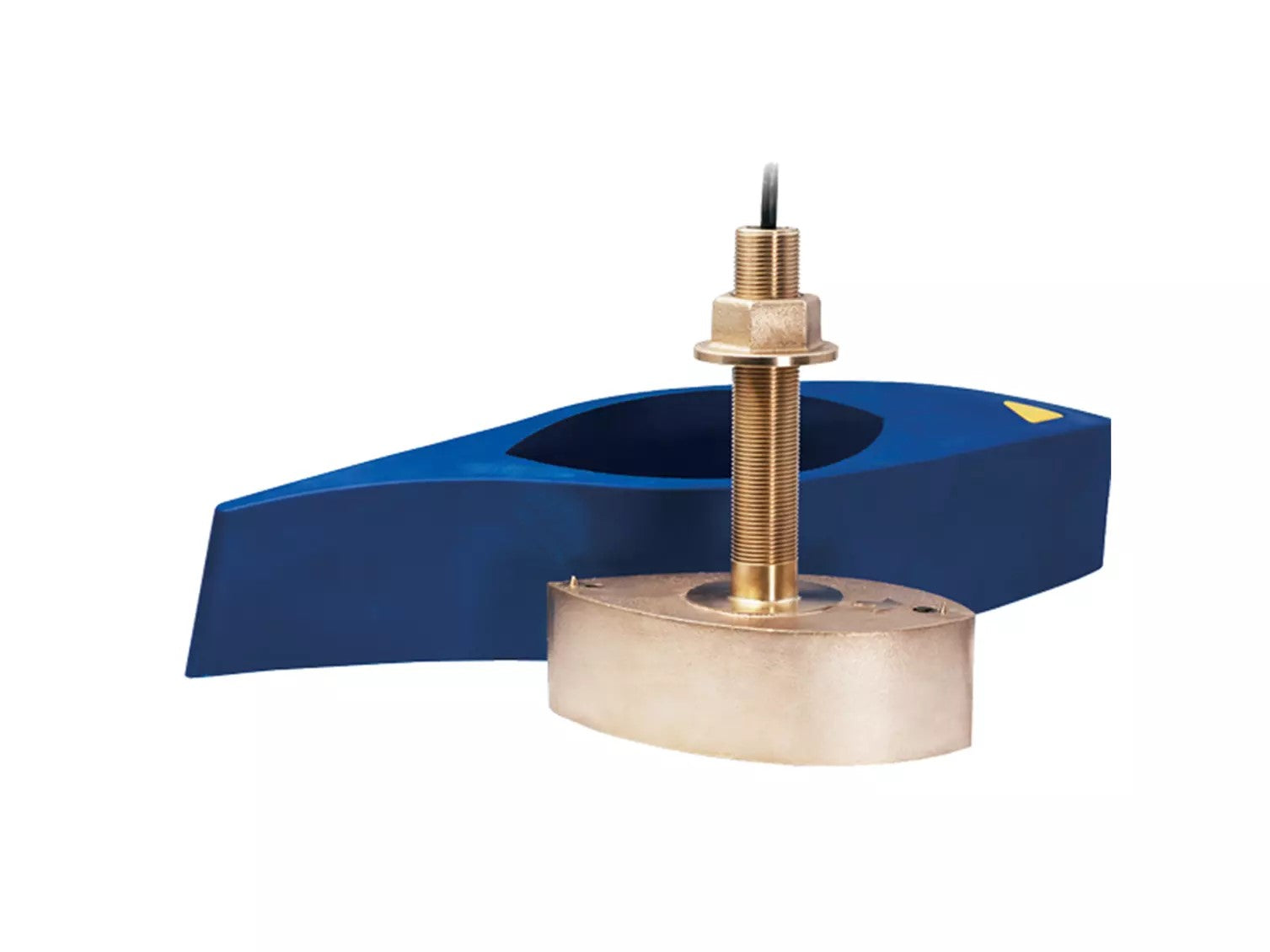

A80010 Raymarine B265LH D/T Through Hull Low-High Transducer - Part Number: A80010
Bronze, 1kW for Axiom Pro series and CHIRP Sonar modules
Model: B265LH Low-High Transducer
B265 Overview
With up to 103kHz of CHIRP range and 8 internal ceramics this transducer has the ability to provide great target separation in both shallow and deep water.
B265 comes in either a Low/High (LH) configuration or a Low/Medium (LM) configuration.
The medium element will provide better shallow water coverage under the vessel, while the high element will provide better shallow water resolution.
Use the low element for deep-water detection of bottom and fish as deep as 3,000 metres (10,000 feet.)
The B265 is fitted with an 11-pin CHIRP transducer connector that mates directly to Axiom Pro RVX, Axiom 2 Pro RVM, RVX-1000, RVM-1600, CP470, CP570 and legacy CHIRP sonar modules.
The included high performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| General Specifications | |
|---|---|
| Mount | Through-Hull |
| Material | Bronze |
| Power (RMS) | 1kW |
| Records | Depth / Temperature |
| Hull Material | Fiberglass / Wood |
| Cable Length | 33 Ft. / 10 M. |
| Deadrise Angles | 0 - 20° |
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
