A80038 Raymarine M265 In-Hull Transducer | Genuine Raymarine Electronics
A80038 Raymarine M265 In-Hull Transducer | Genuine Raymarine Electronics
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

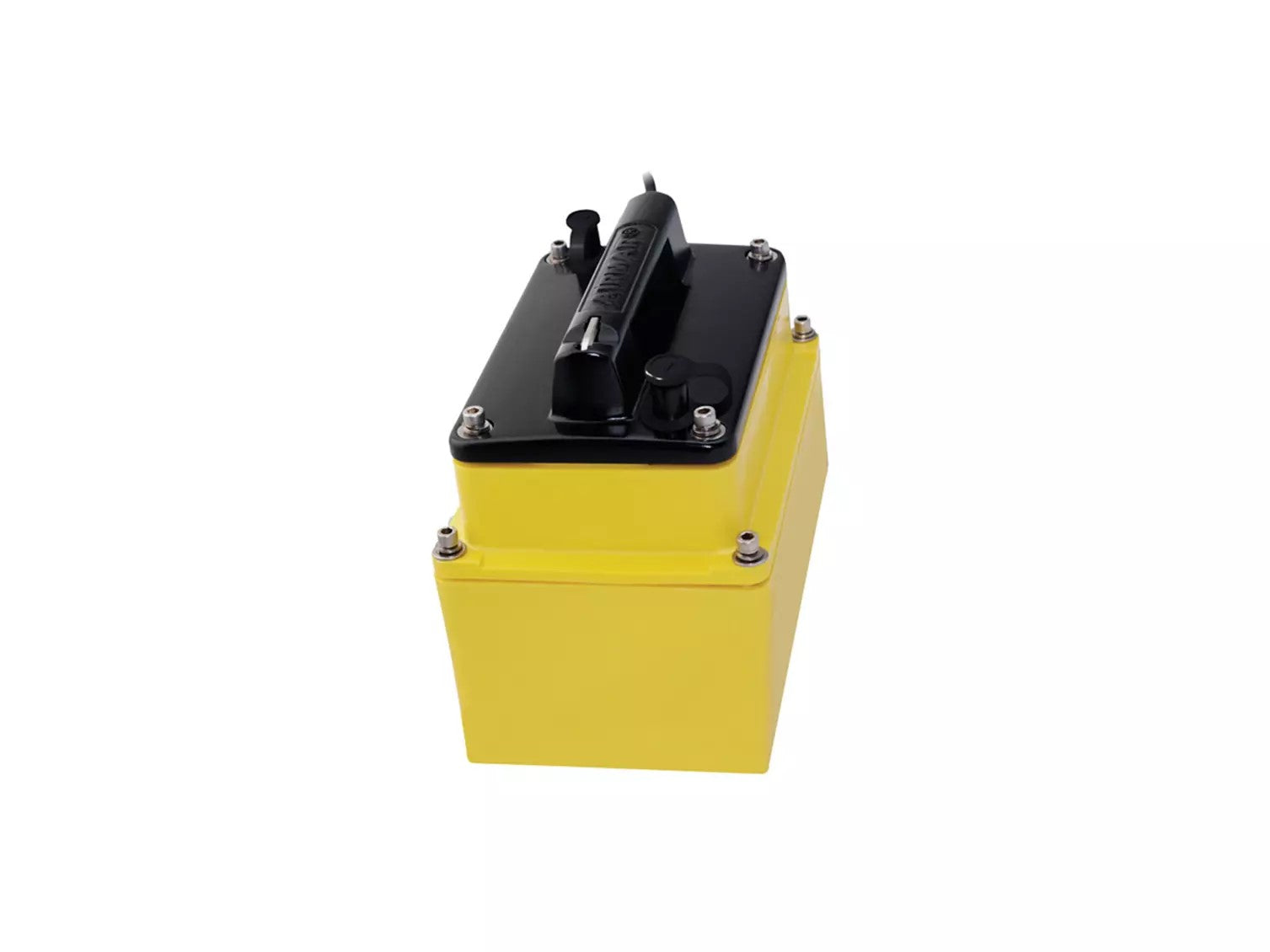

A80038 Raymarine M265 In-Hull Transducer - Part Number: A80038
Urethane, 1kW, for CHIRP sonar modules and Axiom Pro series
Model: M265LM Low-Medium Transducer
M265 Overview
The M265 is an outstanding in-hull option with 8 internal ceramics and up to 117kHz of total CHIRP range. The in-hull installation eliminates the need to drill any holes in the hull, while accommodating a large range of dead rise angles. The high frequency provides excellent shallow water resolution.
The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265 is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
The M265 is fitted with an 11-pin CHIRP transducer connector that mates directly to Axiom Pro RVX, Axiom 2 Pro RVM, RVX-1000, RVM-1600, CP470, CP570 and legacy CHIRP sonar modules.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| General Specifications | |
|---|---|
| Mount | In-Hull |
| Material | Urethane |
| Power (RMS) | 1kW |
| Records | Depth |
| Hull Material | Fiberglass |
| Cable Length | 33 Ft. / 10 M. |
| Deadrise Angles | 0 - 30° |
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
