🔧 Product Description

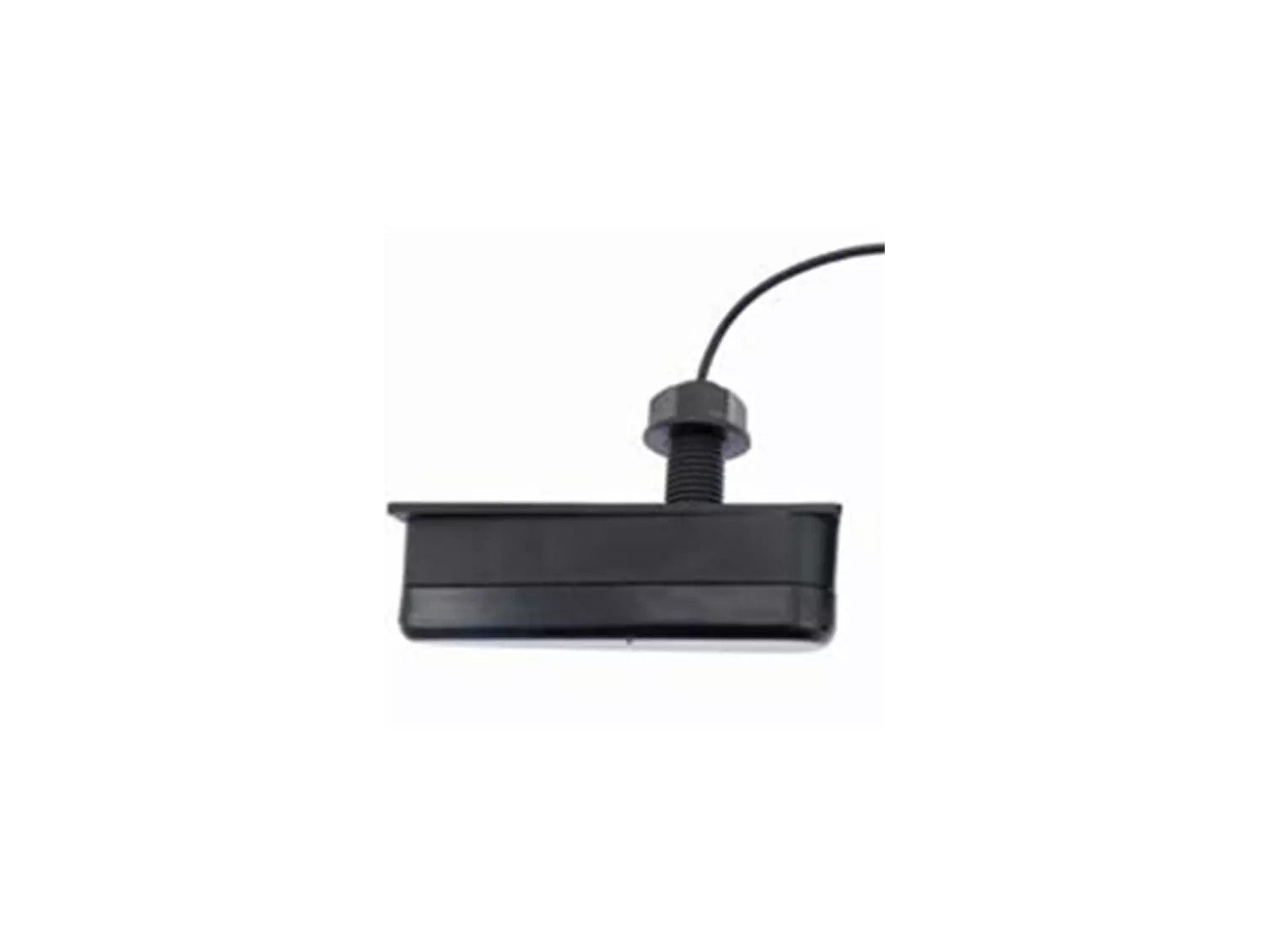

A80277 Raymarine CPT-110 Through Hull Transducer - Part Number: A80277
Urethane, CHIRP Fish finder / DownVision
CPT-110 Overview
The CPT-110 through hull CHIRP DownVision transducer provides accurate depth and temperature reading functions to compatible Raymarine CP100, a68 and a78 modules.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| General Specifications | |
|---|---|
| Material | Urethane |
| Max Depth | DV:600 / FF: 900 |
| Frequency | CHIRP Fish finder / DownVision |
| Beam Width | 25 / 60° |
| Records | Depth / Temperature |
| Hull Material | Fiberglass / Metal |
| Cable Length | 30 Ft. / 10 M. |
| Deadrise Angles | 0 - 25° |
| Sonar | |
| Beam coverage | Sonar - conical beam, DownVision - Wide (port / starboard) and thin (fore / aft) fan beam. |
| Channels | 2 x CHIRP (1 x traditional sonar and 1 x DownVision) |
| Depth range | 0.6 M (2 ft) to 183 m (600 ft). Depending on water conditions, the Sonar channel may be able to achieve increased depth range over the DownVision channel. |
| Environmental | |
| Waterproof rating | IPx6, IPx7 |
| Storage temperature | -20 °C to + 70 °C (23 °F to 158 °F) |
| Operating temperature range | 0 °C to + 40 °C (32 °F to 104 °F) |
| Conformance | |
| Standards | EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Physical | |
| Length | 210.8 mm (8.3 in) |
| Height | 131.8 mm (5.2 in) Max |
| Cable length | 10 m (32.8 ft) |
📦 What's in the box
- Thru-hull plastic transducer
- Dead rise block
- Plastic securing nut
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
