A80281 Raymarine CPT-200 Transom Mount Transducer | Genuine Raymarine Electronics
A80281 Raymarine CPT-200 Transom Mount Transducer | Genuine Raymarine Electronics
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

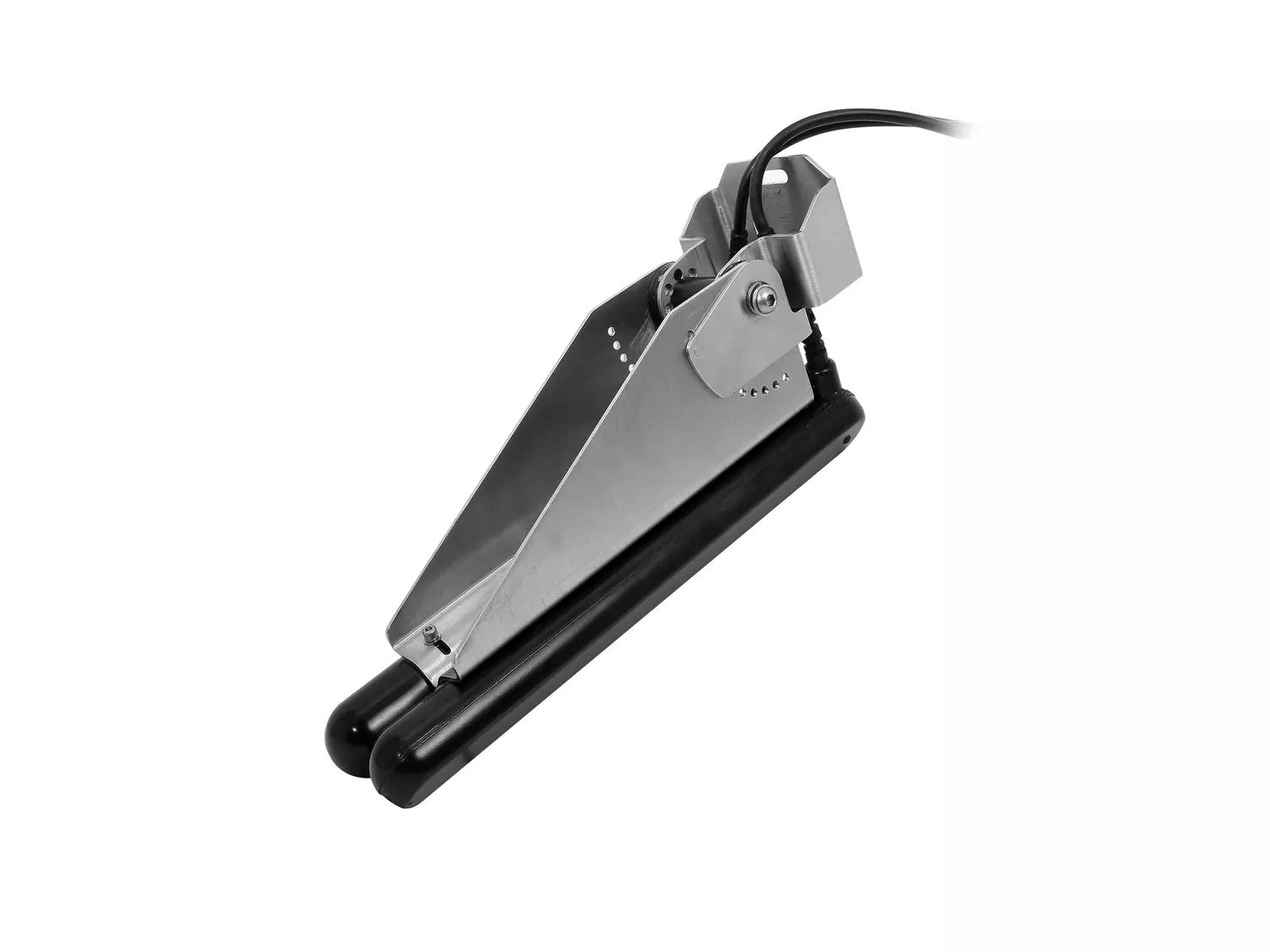

A80281 Raymarine CPT-200 Transom Mount Transducer - Part Number: A80281
Stainless Steel / Urethane, CHIRP SideVision
CPT-200 Overview
The CPT-200 SideVision transducer is directly compatible with the CP200 CHIRP SideVision Sonar Module.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| General Specifications | |
|---|---|
| Material | Stainless Steel / Urethane |
| Max Depth | Port: 600 / Starboard: 600 |
| Frequency | CHIRP SideVision |
| Beam Width | 60° |
| Records | Depth / Temperature |
| Hull Material | Fiberglass / Wood / Metal |
| Cable Length | 33 Ft. / 10 M. |
| Deadrise Angles | 0-90° |
| Sonar | |
| Depth range | Up to 183 m (600 ft) (Range performance is dependent on many factors, including water quality, transducer installation, and reflectivity of targets and structure.) |
| Beam coverage | Port and starboard-facing - wide (port / starboard) and thin (fore / aft) |
| Channels | CHIRP port and starboard |
| Environmental | |
| Waterproof rating | IPx6, IPx7 |
| Storage temperature | -20°C to +70°C (23°F to 158°F) |
| Operating temperature | 0°C to +40°C (32°F to 104°F) |
| Physical | |
| Weight | Including cable: 1.44 kg (3.1 lbs) |
| Dimensions | Height: 120 mm (4.8 in), Width: 73 mm (2.9 in), Length: 269 mm (10.6 in), Cable length: 10 m (32.8 ft) |
| Conformance | |
| Standards | EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2 |
📦 What's in the box
- Transdcuer including 10 m (32.8 ft) fitted cable
- Documentation
- P-clips and screws. (Screws = Ø4.2 x 13 mm pozidrive pan head) x 5
- Fixing screws (Ø4.2 x 19 mm pozidrive pan head) x 3
- Escutcheon and 2 fixing screws (for through-transom cable installation) (Screws = Ø4.2 x 13 mm pozidrive pan head)
- Ball-ended Allen key (2 mm)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
