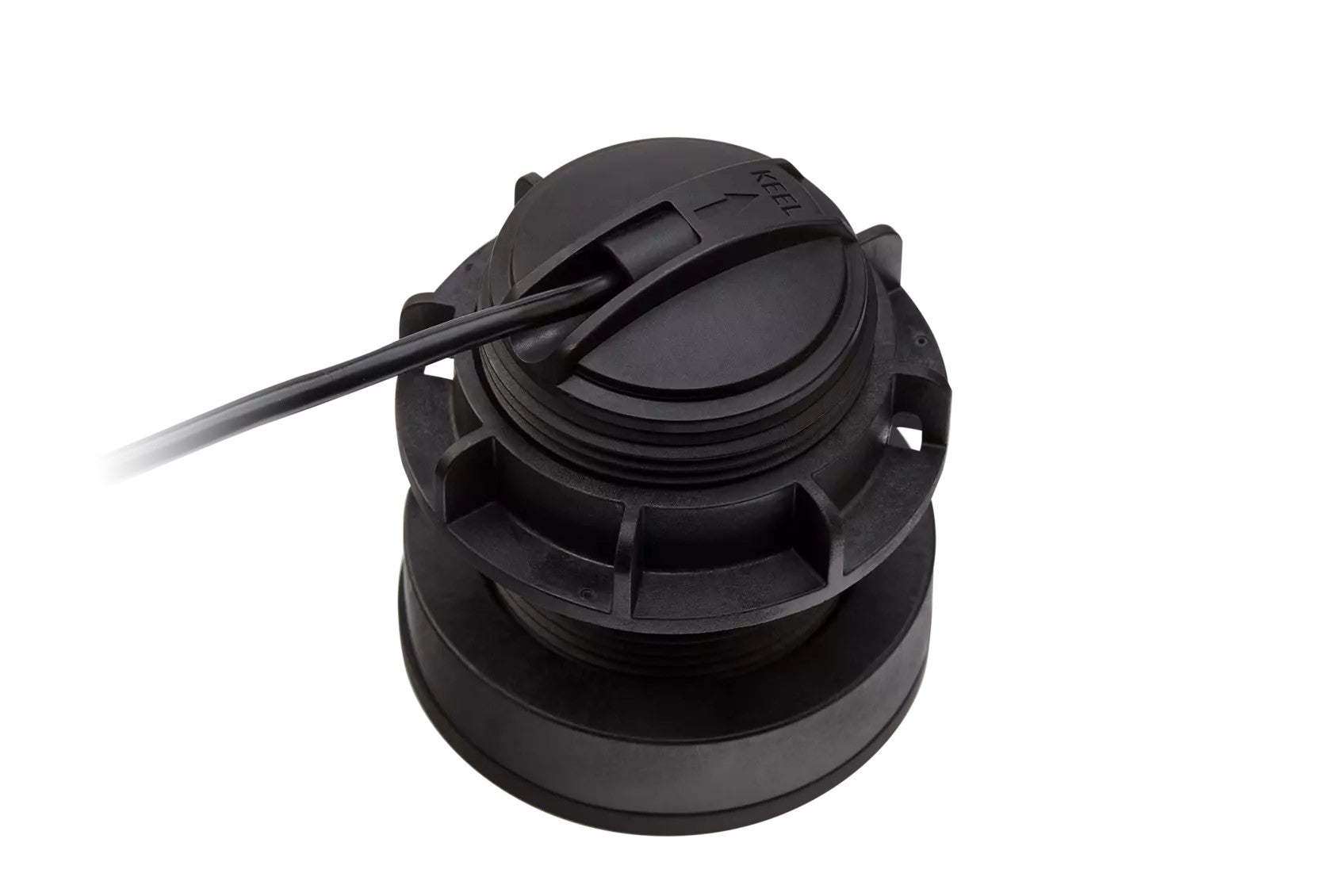

A80448 CPT-S Plastic Conical HIGH CHIRP Through Hull 12° Angled Element Transducer, 10m

CPT-S Through Hull Transducer Overview

The CPT-S family of through hull transducers provides high-resolution sonar imagery and reliable depth recording for Raymarine Element and Axiom chartplotters. The low-profile design eliminates the need for a fairing block while offering excellent high-speed performance. CPT-S through hull transducers are available in bronze or plastic housings.

Key Features and Specifications

• Supports single High CHIRP sonar with a 25° conical beam
• Available with 0°, 12°, and 20° angled elements to compensate for various hull deadrise angles.
• Integrated seawater temperature sensor
• Up to 900 ft (274 m) depth range
• Includes 10 meter cable

CPT-S Chartplotter compatibility

Element S

The CPT-S transducer family connects directly to Element S chartplotters

Axiom Pro S and Axiom 2 Pro S

CPT-S transducers are the recommended transducer for Axiom Pro S and Axiom 2 Pro S chartplotters. Use the A80490 adaptor cable to connect CPT-S transducers to Axiom Pro.

Element HV

Use the A80559 transducer adaptor cable to connect to Element HV models. Please note the CPT-S transducer only supports High CHIRP sonar. HyperVision sonar requires an HV series transducer.

All Axiom Chartplotters with Sonar

CPT-S transducers connect directly to Axiom DV models. All other sonar-equipped Axiom displays can use the A80490 transducer adaptor cable to connect CPT-S transducers. Please note the CPT-S transducer only supports High CHIRP sonar.
