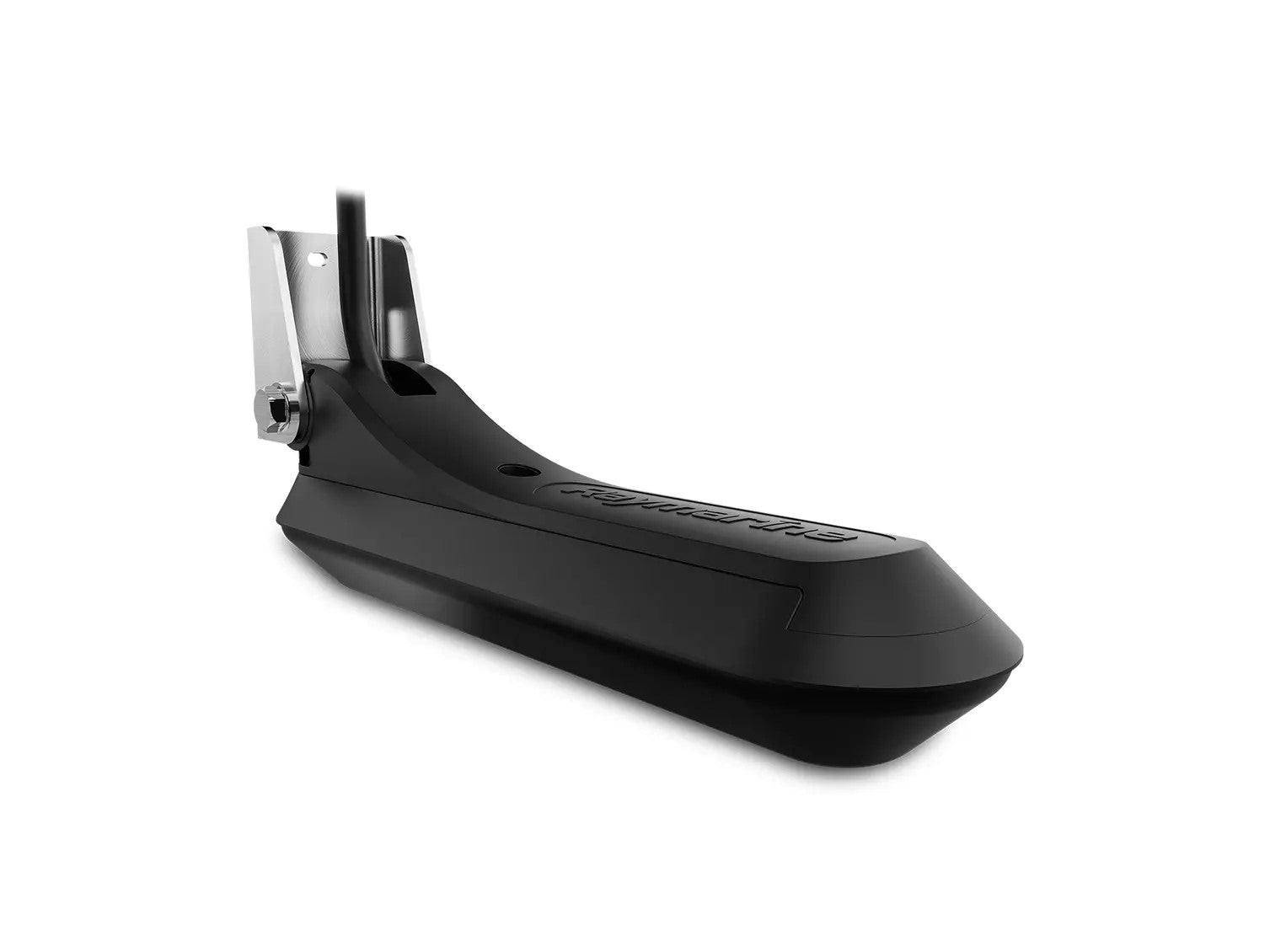

A80464 Raymarine RV-100 Transducer - Part Number: A80464
RealVision Transom Mount Transducer for Axiom+ RV, Axiom Pro RVX & RVX-1000 sonar systems
RV-100 Overview
Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilises 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RV-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.
The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.
For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (A80479, sold separately.)
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Environmental | |
|---|---|
| Waterproof rating | IPx6 (surfaces exterior to hull only), IPx7, IPx8 |
| Storage temperature range | -20° C (23° F) to + 70° C (158° F) |
| Operating temperature range | -2° C (28.4° F) to + 55° C (131° F) |
| Conformance | |
| Standards | EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2 |
| RealVision 3D sonar | |
| Range | CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft), DownVision = 0.6 M (2 ft) to 183 m (600 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft), RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft) |
| Channels | 1 x CHIRP sonar, 1 x DownVision, 1 x SideVision, 1 x RealVision 3D |
| Physical | |
| Cable length | 8 m (26.2 ft) |
| Length | 256.6 mm (10.10 in) |
| Height | 120.5 mm (4.74 in) |
| Weight (including bracket) | 0.647 kg (1.42 lb) |
📦 What's in the box
- Escutcheon plate
- Cable clips x5
- 9 x Self tapper screw (3.9x13) (4 x for escutcheon and 5 x for cable clips)
- 3 x Self tapper screw (4.2x18) (for transducer mounting bracket installation)
- Transducer mounting bracket
- Cable connector kit, consisting of: O Ring, Split ring x 2 (1 x spare), Locking collar, Split ring fitting tool
- Documentation
- M10 x 65 serrated bolt
- M10 serrated nylock nut
- Transducer (including 8 m / 26.2 ft cable)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
