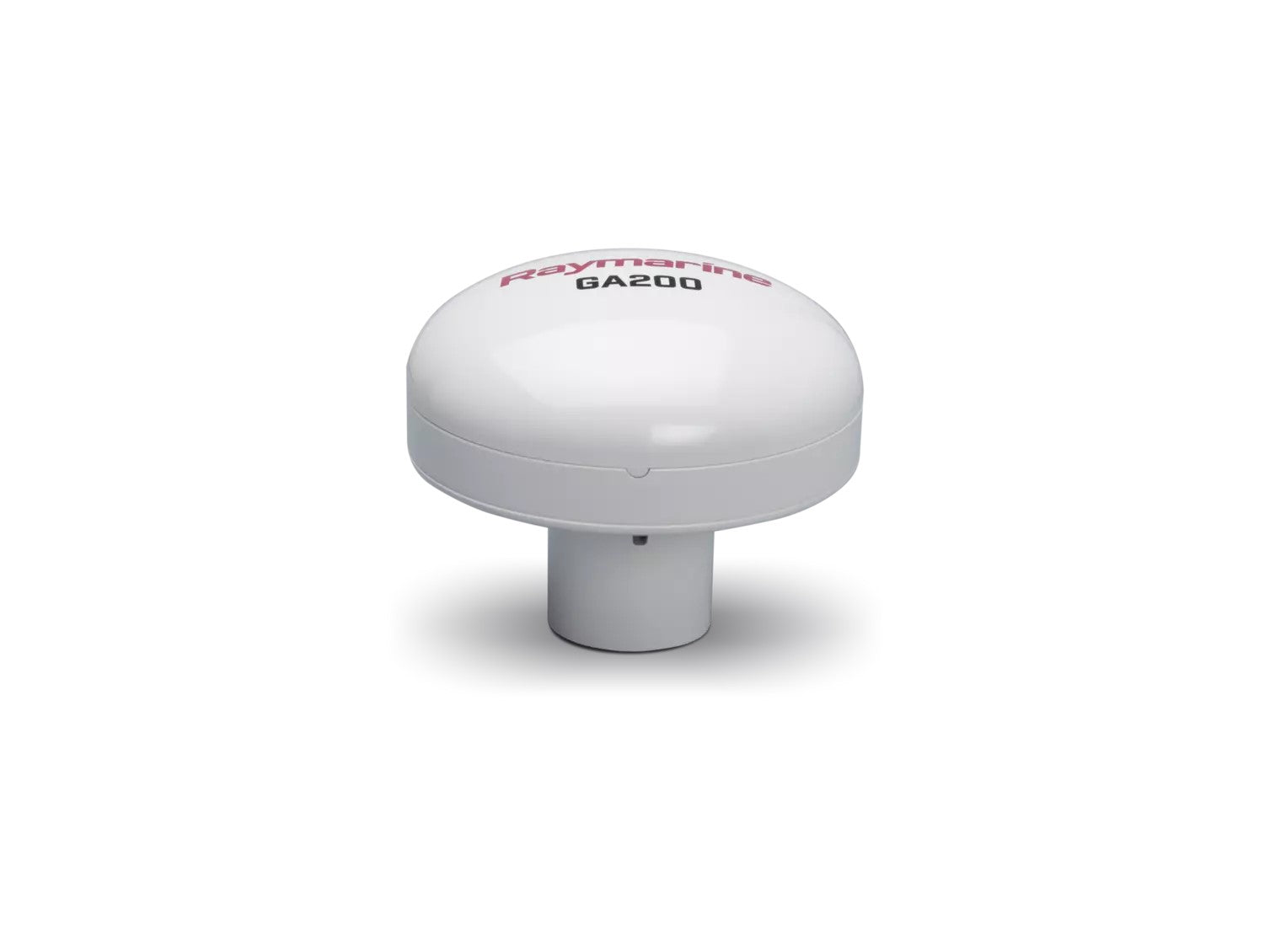

A80589 Raymarine GA200 GPS Antenna - Part Number: A80589
External GPS antenna for Raymarine Axiom chartplotters and AIS receivers
Model: GA200 GPS Antenna
GA200 GPS Antenna
The GA200 is an external antenna, suitable for improving the reception of the internal GPS/GNSS receivers of compatible Raymarine chartplotters, AIS devices, and VHF radios.
Features
- 10 m (33 ft.) fitted cable
- Low power consumption
- Surface or pole mountable
Compatible Chartplotters and multifunction displays
- Axiom Pro/Axiom 2 Pro
- Axiom XL/Axiom 2 XL
- eS97/eS98/eS127/eS128
- a95/a97/a98/a125/a127/a128
Compatible AIS Receivers
- AIS5000
- AIS4000
- AIS700
- AIS350/AIS650
- AIS500
- AIS950
Compatible VHF radios
- Ray90/Ray91
- Ray63/Ray73
- Ray53
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Environmental | |
|---|---|
| Waterproof rating | IPx6, IPx7 |
| Storage temperature range | -30°C to +70°C (-22°F to +158°F) |
| Operating temperature range | 0°C to +55°C (+32°F to +131°F) |
| Relative humidity | 0.95 |
| Physical | |
| Diameter | 85 mm (3.35 in) |
| Height (including pole mount adaptor) | 70 mm (2.76 in) |
| Height | 34 mm (1.34 in) |
| Unboxed weight (including cable) | 0.5 Kg (1.1 lbs) |
| Conformance | |
| Standards | EN 60945:2002, Radio Equipment Directive 2014/53/EU, Australia and New Zealand C-Tick compliance level 2 |
📦 What's in the box
- GNSS antenna, with captive cable 10m (33 ft).
- Antenna pole mount adaptor
- Antenna gasket
- Antenna fixings (3 x M3x40 stud and thumb nut)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
