A80691 Raymarine CPT-S In Hull Transducer | Genuine Raymarine Electronics

🔧 Product Description

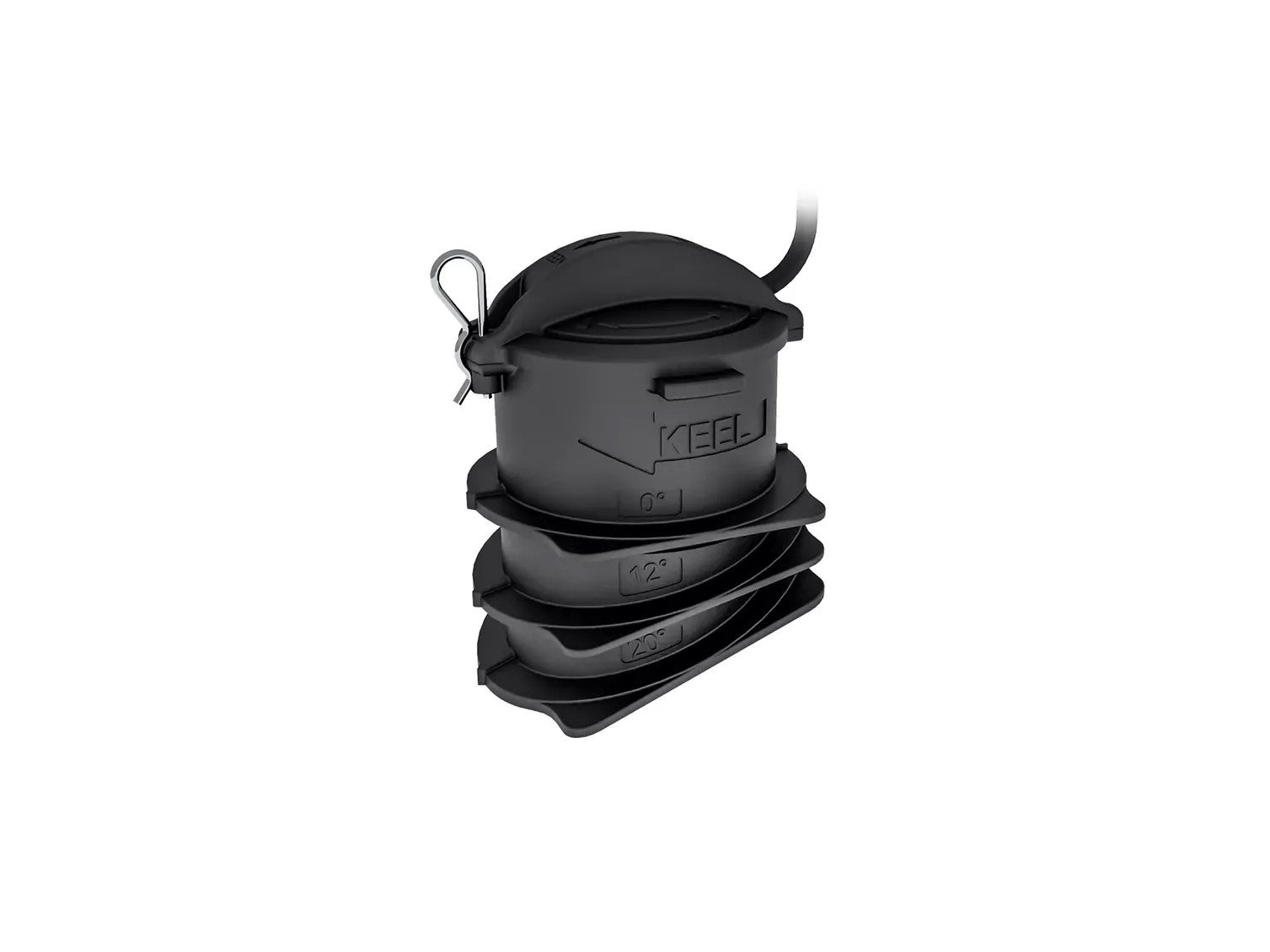

Raymarine CPT-S In Hull Transducer - Part Number: A80691

CPT-S In Hull Transducer Overview

The CPT-S In-hull transducer provides a simple-to-install depth-only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP sonar operation centered on 200kHz. The CPT-S In-hull transducer transmits sonar signals through the boat's hull, simplifying installation while providing reliable high-speed depth recording. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 degrees deadrise.

⚙️ Key Features

Key Features and Specifications

• No drilling through the hull is required.
• Supports single High CHIRP sonar with a 25° conical beam
• Up to 600 ft (183 m) depth range
• Includes housing and 7.5 meter cable

CPT-S Chartplotter compatibility — Element S — The CPT-S transducer family connects directly to Element S chartplotters — Axiom Pro S and Axiom 2 Pro S

CPT-S transducers are the recommended transducer for Axiom Pro S and Axiom 2 Pro S chartplotters. Use the A80490 adaptor cable to connect CPT-S transducers to Axiom Pro.

Element HV

Use the A80559 transducer adaptor cable to connect to Element HV models. Please note the CPT-S transducer only supports High CHIRP sonar. HyperVision sonar requires an HV series transducer.

All Axiom Chartplotters with Sonar

CPT-S transducers connect directly to Axiom DV models. All other sonar-equipped Axiom displays can use the A80490 transducer adaptor cable to connect CPT-S transducers. Please note the CPT-S transducer only supports High CHIRP sonar.

📏 Specifications

• Frequency: 200kHz
• Depth rating: up to 600ft (183m)

📦 Condition

• Brand new genuine product
• Supplied in original packaging
