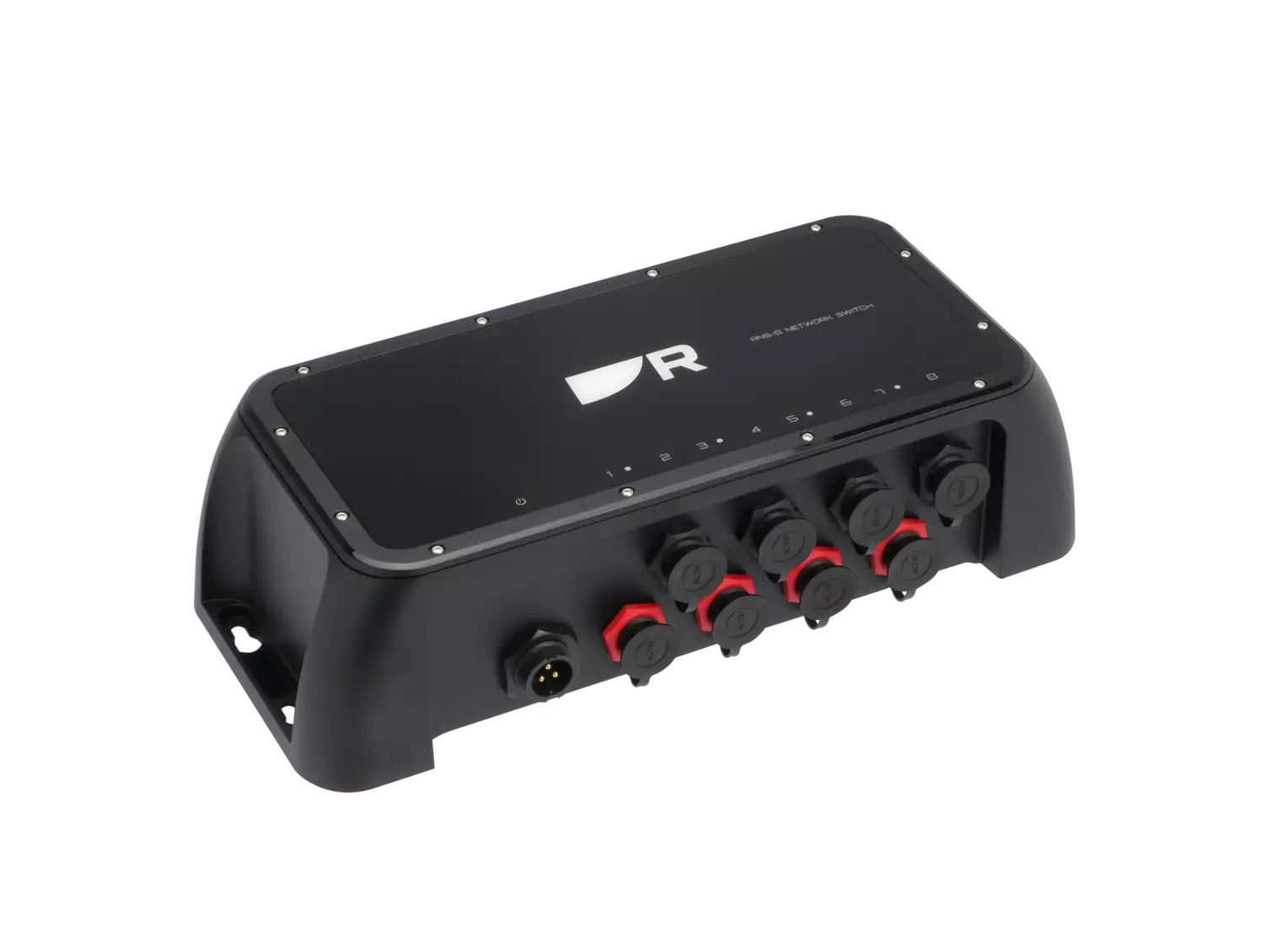

A80732 Raymarine RNS-8 8 port Gigabit RayNet network switch - Part Number: A80732
8 port Gigabit RayNet network switch with 4 dedicated power-over-ethernet (POE) ports.
Expand your Raymarine Network
The RNS-8 network switch is a premium network switch for integrated Raymarine chartplotter systems. Use the RNS-8 to integrate Axiom displays with radars, sonar modules, and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads.
The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Multiple RNS-8 switches can be daisy-chained together for extended Raymarine networks. The RNS-8 is simple to install and requires no complicated setup.
RNS-8 KEY FEATURES
- 8 RayNet Ethernet gigabit ports for fast and reliable connectivity
- 4 dedicated Power-Over-Ethernet (POE) ports for powering cameras and remotes
- Rugged IPX6/IPX7 construction
- Reliable, waterproof RayNet connector Ethernet cable ports
- Designed for simple bulkhead mounting
- LED power and network port status indicators
- Unmanaged- simply plug and play with Raymarine devices.
- Remote diagnostics and performance monitoring via web browser
- For extended networks, up to 8 RNS-8 switches can be daisy-chained together
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Physical | |
|---|---|
| Length | 287.63 mm (11.32 in) |
| Height | 125.5 mm (4.94 in) |
| Depth | 78 mm (3.07 in) |
| Port separation distance | 17.38 mm (0.68 in) |
| Weight | 960.5 g (2.12 lbs) |
| Power | |
| Nominal supply voltage | 12 V or 24 V dc |
| Operating voltage range | 9 V to 31.2 V dc |
| PoE operating voltage range | 10.8 V to 31.2 V dc |
| Power consumption | 160 W (Maximum) @ 12 V dc 150 W (Maximum) @ 24 V dc |
| Current | 13.3 A (Maximum) @ 12 V dc 6.25 A (Maximum) @ 24 V dc |
| Inline fuse rating | 15 A @ 12 V dc 8 A @ 24 V dc |
| Thermal breaker rating | 20 A @ 12 V dc 10 A @ 24 V dc |
| Network | |
| Network connection ports | 4 x RayNet connection ports (10/100/1000 Mbits/s) 4 x PoE RayNet connection ports (10/100/1000 Mbits/s). Each of the 4 ports supports PoE Classes 0 to 4, with 30 W maximum power available for each port. Note: You can mix a combination of PoE and non-PoE devices simultaneously, for a total of 8 devices (maximum PoE devices = 4; maximum non-PoE devices = 8). In order to sufficiently power PoE devices, the network switch’s power supply must exceed 10.8 V dc. |
| IEEE Standard | Conforms to IEEE 802.3at |
| Environmental | |
| Operating temperature | –25 °C (–13 °F) to +55 °C (131 °F) |
| Non-operating temperature | –30 °C (–22 °F) to +70 °C (158 °F) |
| Relative humidity | up to 93% @ 40 °C (104 °F) |
| Waterproof rating | IPx6 & IPx7 |
| Conformance | |
| Standards | EN 60945:2002 (Europe, Australia New Zealand) ICES-003 (Canada) CFR47 Part 15 (USA) IACS section E10 (Japan / China) |
| Product markings | UKCA CE Australian Tick WEEE Directive |
📦 What's in the box
- RNS-8 Network switch.
- Documentation pack.
- Fixing screws, x4 (M4, 8.94 x 25 mm).
- Power cable, 1.5 m (4.9 ft).
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
