🔧 Product Description

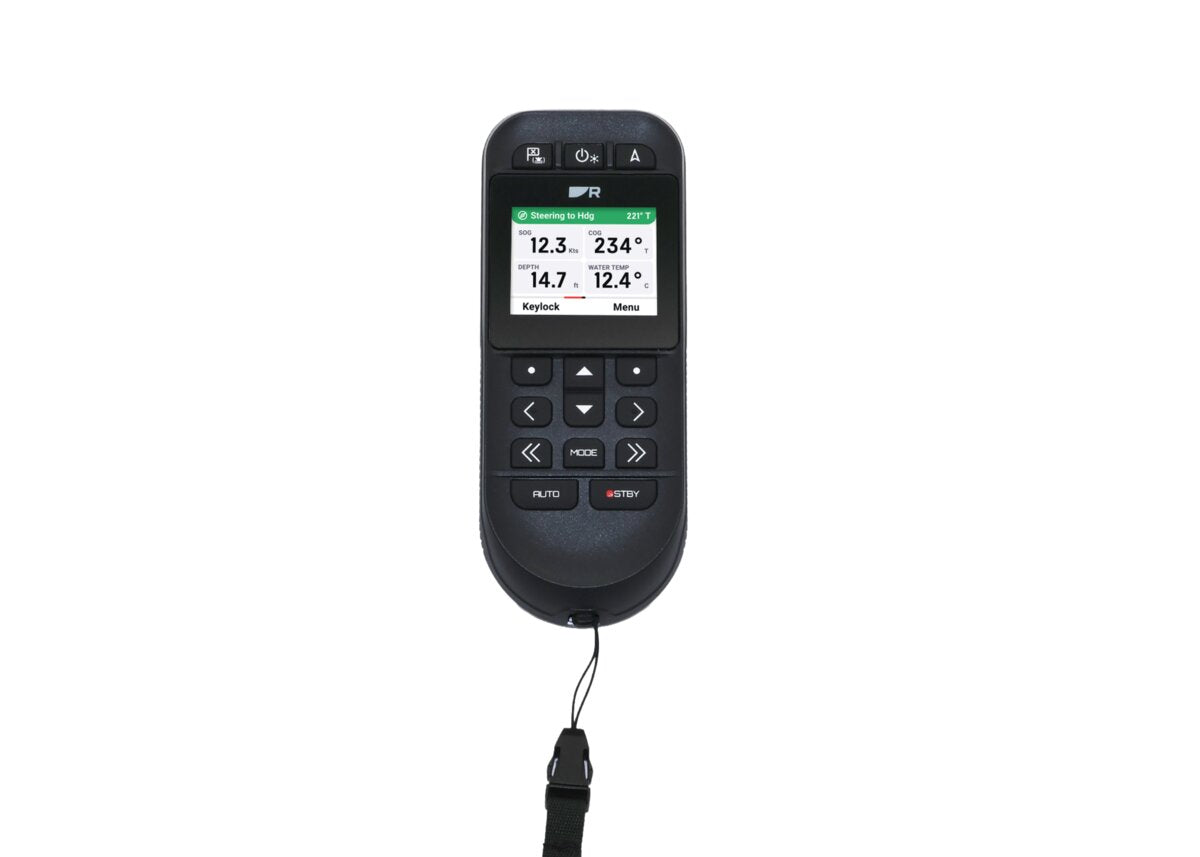

A80835 Raymarine RCU-1 Autopilot Remote Control - Part Number: A80835
A wireless autopilot remote controller designed for both powerboats and sailboats. With a bright color display, intuitive Point-and-Go navigation, and Solo Sailor safety mode, it puts full autopilot control in your hand.
Model: RCU-1 - Remote Control Only
Effortless navigation, enhanced safety
Instant, handheld control of your boat's autopilot when precision and safety matter most.
Control in the palm of your hands
Featuring a bright color display and ergonomic design for single hand operation, the RCU‑1 wireless marine autopilot remote puts the power of Raymarine Evolution in the palm of your hand. Whether trimming sails, managing fishing gear, or simply moving around the deck, boaters can stay in command from virtually anywhere on board.
Why Choose The RCU-1 Autopilot Remote?
Enjoy the freedom of engaging and disengaging your boat's Evolution autopilot from anywhere onboard.
Set a new course with Point-and-Go mode. Simply aim the RCU-1 in direction you want the autopilot to follow.
Solo Sailor Mode automatically points the boat into the wind when a wearer-overboard situation is detected.
Powered by two AA batteries for up to 30 days of continuous use.
View heading, speed, depth, wind, and waypoint info on a bright handheld display.
Rugged, waterproof design and a bright sunlight viewable display.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Physical | |
|---|---|
| Height (handset only) | 150.87mm (5.94 in) |
| Width (handset only) | 59.83mm (2.36 in) |
| Depth (handset only) | 31.51mm (1.24 in) |
| Product weight (Remote and batteries) | 190g (6.70 oz) |
| Battery | |
| Size | AA |
| Types | Alkaline Lithium Rechargeable |
| Environmental | |
| Operating temperature range | -25°C (-13°F) to + 55°C (131°F) |
| Storage temperature range | -30°C (-22°F) to + 70°C (158°F) |
| Humidity | up to 95% @ 40 C (104°F) |
| Water ingress protection | IP67 |
| Installation location | Above decks Below decks |
| AHRS | |
| AHRS | 3–Axis Accelerometer 3–Axis Magnetometer 3–Axis Gyroscope |
| Magnetic compass accuracy | Static = ±1° RMS Dynamic = ±5° RMS |
| Pitch, Roll and Yaw accuracy | ±1° |
| Heading, Pitch, Roll and Rate of Turn update rate | 10 Hz |
| Bluetooth | |
| Bluetooth Version | 5.1 |
| Connection range | Up to 30m (98.43ft) with clear line of sight |
| Conformance | |
| UK | SI 2016:1091: Electromagnetic Compatibility (EMC) Regulations 2016 SI 2017:1206: The Radio Equipment Regulations 2017 SI 2023:1542: Battery Regulations SI 2014:1638: The Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment Regulations 2012 SI 2013:3113 The Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 Product Security And Telecommunications Infrastructure (PSTI) Act 2022 |
| EU & EFTA | Directive 2014/30/EC: Electromagnetic Compatibility (EMC) directive Directive 2014/53/EU: Radio Equipment Directive (RED) Directive 2023/66/EC: Batteries Directive Directive 2002/95/EC: Restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment directive Directive 2002/96/EC: Waste Electrical and Electronic Equipment (WEEE) directive |
| USA | CFR 47 Part 2. 1093: Radio frequency radiation exposure evaluation: portable devices |
| Canada | ISED RSS-Gen: General Requirements for Compliance of Radio Apparatus |
| China | SRRC |
| Taiwan | NCC |
| Product markings | |
| UK | UKCA |
| EU/EFTA | CE WEEE |
| USA | FCC |
| Canada | ISED |
| Australia / New Zealand | Compliance tick mark |
📦 What's in the box
- RCU-1 Autopilot Remote Control
- Cradle
- 2 x AA batteries
- 2 x self tapping screws
- Documentation pack
- Lanyard
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
