17400-92840 Aftermarket Suzuki DF100, DF115 Service Kit (2010-12) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement DF100/DF115 Major Service Kit - Kit / Reference: 17400-92840

New aftermarket maintenance kit replacing Suzuki 17400-92840 for pre-A-series DF100 and DF115 four-stroke outboards.

⚙️ Key Features

• Complete major scheduled-maintenance kit for the listed Suzuki engine family

• Matched cooling, ignition, fuel, lubrication and sealing components

• Individual service parts identified by OEM or verified cross-reference number

• Designed to simplify annual or hour-based scheduled maintenance

• Engine model and serial number must be confirmed before installation

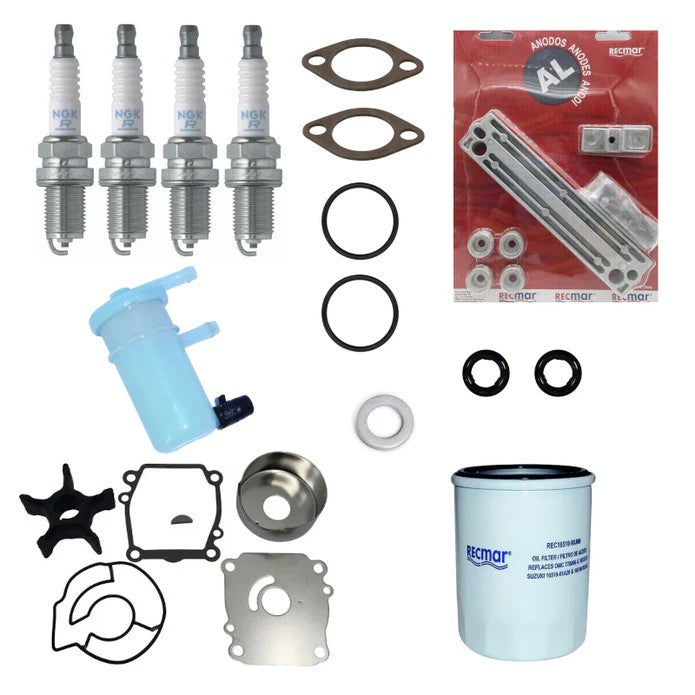

🧰 Kit / Assembly Contents

• 1 × Water-pump repair kit - Suzuki P/N 17400-92J21

• 1 × Water-pump impeller - Suzuki P/N 17461-90J00

• 1 × Water-pump gasket - Suzuki P/N 17472-87E10

• 1 × Water-pump plate - Suzuki P/N 17471-92J00

• 1 × Pump seal - Suzuki P/N 17416-92J10

• 1 × Impeller key - Suzuki P/N 09420-05009

• 1 × Engine-oil filter - Suzuki P/N 16510-61A31

• 4 × Spark plugs - Suzuki P/N 09482-00427 / NGK BKR6E

• 1 × Propeller cotter pin - Suzuki P/N 09204-03003

• 2 × Gearcase drain-plug gaskets - Suzuki P/N 09168-10022

• 1 × Engine-oil drain gasket - Suzuki P/N 09168-12012

• 1 × Fuel filter - Suzuki P/N 15410-87J30

• Protection anodes - Suzuki P/N 55321-87J01, quantity according to engine arrangement

• Protection-cover gasket - Suzuki P/N 11265-87E10

• Anode O-ring - Suzuki P/N 09280-22019

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 17400-92842 / 17400-92841 → Supersede 17400-92840

OEM / Related Numbers:

• 17400-92J21

• 17461-90J00

• 17472-87E10

• 17471-92J00

• 17416-92J10

• 09420-05009

• 16510-61A31

• 09482-00427

• 09204-03003

• 09168-10022

• 09168-12012

• 15410-87J30

• 55321-87J01

• 11265-87E10

• 09280-22019

Aftermarket / Verified Equivalents:

• Recmar: REC17400-92840

• Aftermarket DF100/DF115 component service kit

🚤 Compatibility

Commonly used on:

• Suzuki outboard or sterndrive scheduled-maintenance applications

Typically suits:

• Engine / Drive models:

• DF100

• DF115 pre-A-series

• HP Range: 100HP - 115HP

• Year Range: 2010 - 2012

• Model / Serial Identification: Does not suit DF100A/DF115A engines using the 17400-9282x kit family.

🔌 Function

This scheduled-maintenance kit groups the cooling, ignition, fuel, lubrication and corrosion-control components required for the listed engine family. Replacing the matched consumables together helps restore reliable starting, correct cooling-water flow, clean fuel and oil circulation, and leak-free drain and thermostat joints.

Common signs that service is due:

• The annual, 100-hour or manufacturer-specified service interval is due

• The engine's previous service history is unknown

• Cooling-water flow is weak or the engine runs hotter than normal

• Spark plugs are fouled, filters are restricted or starting quality has deteriorated

• Drain seals, pump components or sacrificial anodes show corrosion, wear or leakage

📦 Condition

• New aftermarket replacement service kit

• Brand new

• Supplied in original or equivalent packaging
