17400-93851 Aftermarket Suzuki DF200, DF225, DF250 Service Kit (2011+) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement DF200/DF225/DF250 V6 Major Service Kit - Kit / Reference: 17400-93851

New aftermarket maintenance kit replacing Suzuki 17400-93851 for non-A-series V6 DF200, DF225 and DF250 outboards.

⚙️ Key Features

• Complete major scheduled-maintenance kit for the listed Suzuki engine family

• Matched cooling, ignition, fuel, lubrication and sealing components

• Individual service parts identified by OEM or verified cross-reference number

• Designed to simplify annual or hour-based scheduled maintenance

• Engine model and serial number must be confirmed before installation

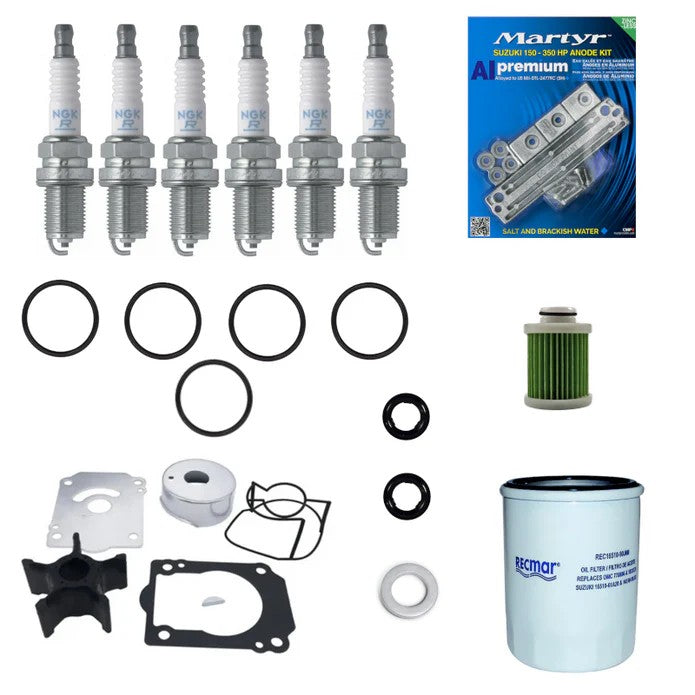

🧰 Kit / Assembly Contents

• 1 × Water-pump repair kit - Suzuki P/N 17400-93J04

• 1 × Water-pump plate - Suzuki P/N 17471-93J02

• 1 × Water-pump case sleeve - Suzuki P/N 17413-93J02

• 1 × Water-pump gasket - Suzuki P/N 17472-93J00

• 1 × Pump-case seal - Suzuki P/N 17416-93J00

• 1 × Impeller key - Suzuki P/N 09420-05009

• 1 × Water-pump impeller - Suzuki P/N 17461-93J00

• 6 × Spark plugs - Suzuki P/N 09482-00427 / NGK BKR6E

• 1 × Engine-oil filter - Suzuki P/N 16510-96J10

• 1 × Fuel-filter element - Suzuki P/N 15412-93J10

• 1 × Propeller cotter pin - Suzuki P/N 09204-03003

• 2 × Gearcase drain-plug gaskets - Suzuki P/N 09168-10034

• 1 × Engine-oil drain gasket - Suzuki P/N 09168-12012

• 7 × Internal protection anodes - Suzuki P/N 55321-87J01

• 7 × Anode O-rings - Suzuki P/N 09280-22019

• 1 × Clamp-bracket anode set - Suzuki P/N 55320-94900

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 16500-93J02 → Supersedes 16500-93J01 and 17400-93856/55/54/53/52/51/50

OEM / Related Numbers:

• 17400-93J04

• 17471-93J02

• 17413-93J02

• 17472-93J00

• 17416-93J00

• 09420-05009

• 17461-93J00

• 09482-00427

• 16510-96J10

• 15412-93J10

• 09204-03003

• 09168-10034

• 09168-12012

• 55321-87J01

• 09280-22019

• 55320-94900

Aftermarket / Verified Equivalents:

• Recmar: REC17400-93851

• Current Suzuki reference family: 16500-93J02

🚤 Compatibility

Commonly used on:

• Suzuki outboard or sterndrive scheduled-maintenance applications

Typically suits:

• Engine / Drive models:

• DF200 V6 non-A, 2011-2014

• DF225 V6 non-A, 2011 and later

• DF250 V6 non-A, 2011 and later

• HP Range: 200HP - 250HP

• Year Range: 2011 and later within the non-A V6 family

• Model / Serial Identification: Does not suit DF200A/DF250AP drive-by-wire engines.

🔌 Function

This scheduled-maintenance kit groups the cooling, ignition, fuel, lubrication and corrosion-control components required for the listed engine family. Replacing the matched consumables together helps restore reliable starting, correct cooling-water flow, clean fuel and oil circulation, and leak-free drain and thermostat joints.

Common signs that service is due:

• The annual, 100-hour or manufacturer-specified service interval is due

• The engine's previous service history is unknown

• Cooling-water flow is weak or the engine runs hotter than normal

• Spark plugs are fouled, filters are restricted or starting quality has deteriorated

• Drain seals, pump components or sacrificial anodes show corrosion, wear or leakage

📦 Condition

• New aftermarket replacement service kit

• Brand new

• Supplied in original or equivalent packaging
