AG-1 ACL Flexigauge Plastigauge 0.025-0.076mm (Green) | Engine Component

AG-1 ACL Flexigauge Plastigauge 0.025-0.076mm (Green) | Engine Component

$3.74 AUD
$3.74 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

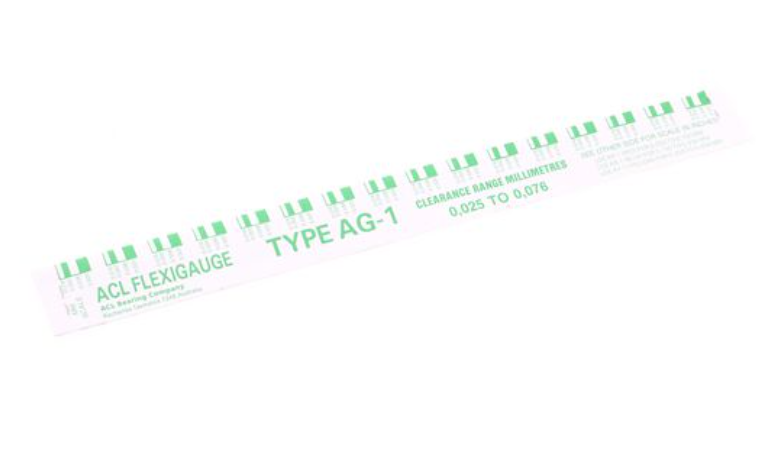

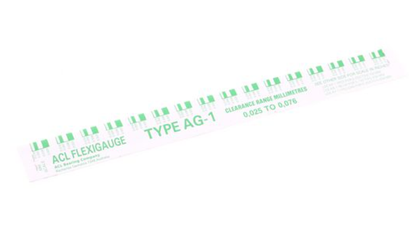

ACL Flexigauge Plastigauge - 0.025-0.076mm (Green)

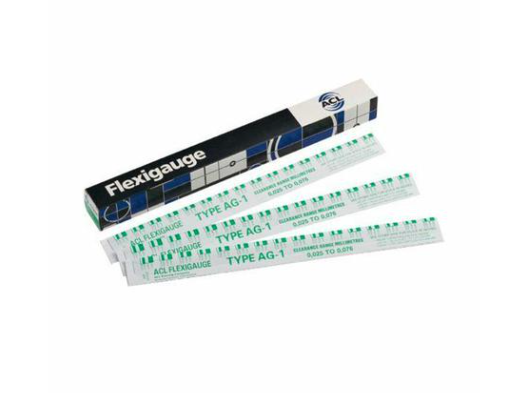

Flexigauge is a precision-manufactured plastic strip used to check the clearance of main and connecting rod bearings. Strips are 12 inches long and packed in individual envelopes marked with the appropriate graduation.

⚙️ Key Features

  • Remove the bearing cap and wipe the journal and bearing shell clear of oil
  • Place a piece of Flexigauge across the bearing at the crown
  • Install the bearing cap and, using a torque wrench, tighten the bolts to the correct tension - do not revolve the shaft or bearings
  • Remove the bearing cap; the Flexigauge will be adhering to either the bearing or the shaft
  • Compare the width of the flattened Flexigauge with the graduation printed on the envelope (thousandths of an inch on one side, millimetres on the other) to read the clearance
  • Taper is indicated when the Flexigauge is wider at one end than the other; the widest point shows the area of least clearance

📏 Specifications

  • Range: 0.025mm to 0.076mm
  • Colour: Green

📦 Condition

  • Brand new genuine product
  • Supplied in original packaging
