🔧 Product Description

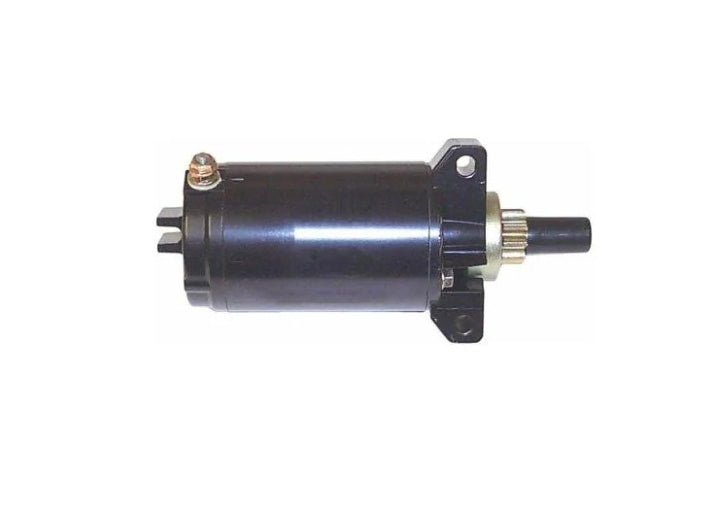

Aftermarket ARCO Mercury/Mariner 40-50HP FourStroke Starter Motor - Part Number: ARC5362

New aftermarket ARCO-pattern 9-tooth counter-clockwise starter for Yamaha-derived Mercury and Mariner 40HP, 45HP and 50HP four-stroke outboards. The starter replaces the 834749/859171/893886/898265001 Mercury service family and related Yamaha 65W-81800 applications.

⚙️ Key Features

• 12-volt marine electrical system

• Counter-clockwise rotation viewed from the drive end

• 9-tooth starter pinion

• Permanent-magnet outboard starter construction

• Integrated starter solenoid

• Suitable for standard and BigFoot versions only where the original starter number matches

🧰 Assembly Contents

• 1 × Complete starter motor assembly - Part Number: ARC5362

• 1 × Integrated starter solenoid

• 1 × Installed 9-tooth pinion and overrunning clutch

• 1 × Installed armature, field-magnet, brush-holder and starter housing

• External cables and mounting bolts are not included unless specified

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 50-898265001 → Later Mercury starter associated with 50-893886T and 50-859171T

• 50-893886T / 50-893887T → Related service revisions

• 50-859171T / 50-854636 / 50-834749 → Earlier Mercury references

OEM / Related Numbers:

• ARC5362

• 50-834749

• 50-854636

• 50-859171T

• 50-893886T

• 50-893887T

• 50-898265001

• 830308

• 830308T

• 859169T

• 859170T

• 859170T1

• 884045T

• 888151T

• 888160T

• 893886T

• 898265001

• Yamaha 65W-81800-00

Aftermarket / Verified Equivalents:

• ARCO Marine: 5362

• Sierra Marine: 18-6437

• Marine Spare Parts: PH130-0029

• Recmar: ARC5362

🚤 Compatibility

Commonly used on:

• Yamaha-derived Mercury/Mariner mid-range four-stroke outboard starting systems

Typically suits:

• Mercury/Mariner 40HP FourStroke

• Mercury 40 Italy and 45 Bodensee FourStroke variants

• Mercury/Mariner 50HP FourStroke

• Mercury/Mariner 50HP BigFoot FourStroke

• Yamaha F40/F50 applications only where the installed starter is Yamaha 65W-81800-00 or a direct listed cross-reference

• HP Range: 40-50 HP

• Engine Type: Inline four-cylinder four-stroke outboard

• Year Range: Principally 1997-mid-2000s, model and serial dependent

• Serial / Model Identification: Confirm 12V, 9 teeth, counter-clockwise rotation and one of the listed Mercury or Yamaha starter numbers before installation.

🔌 Function

The starter turns the four-stroke flywheel until the engine starts. The permanent-magnet design provides compact high-torque cranking for the shared Mercury/Yamaha powerhead platform.

Common signs of failure:

• Solenoid clicks without cranking

• Slow cranking or excessive voltage drop

• Pinion fails to engage or grinds against the flywheel

• Intermittent start operation after heat soak

• Worn brushes or damaged solenoid contacts

• Corrosion, water intrusion or burnt windings

📦 Condition

• Brand-new aftermarket replacement starter motor

• New and unused

• Supplied in suitable manufacturer or equivalent protective packaging
