🔧 Product Description

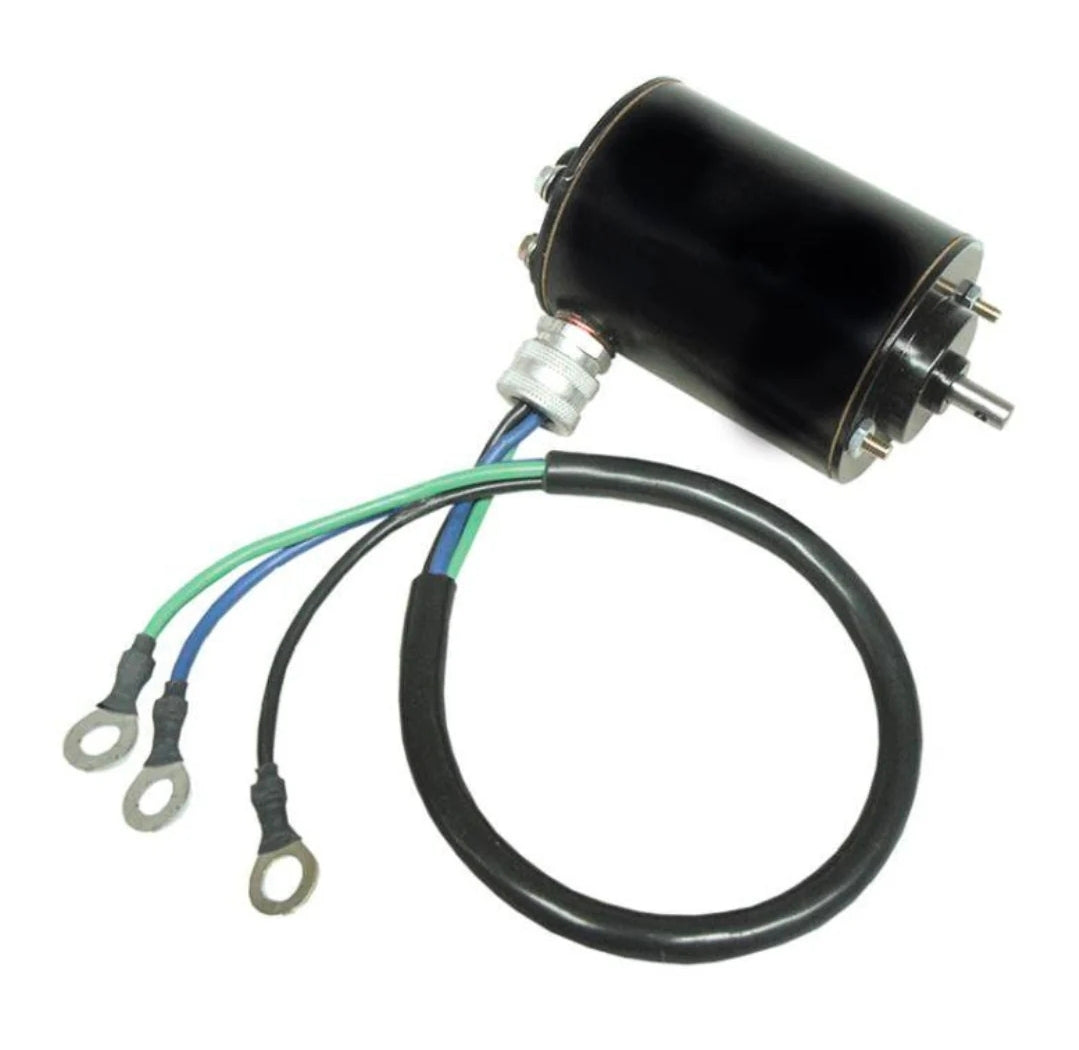

Aftermarket ARCO OMC Stringer / Select-Trim Three-Terminal Motor - Part Number: ARC6211

ARCO 12-volt three-wire power-trim motor for OMC Stringer and Select-Trim systems. It uses ring-terminal leads and is principally associated with 2.5 L and 3.0 L OMC sterndrive packages.

⚙️ Key Features

• 12 V reversible three-wire motor

• Three ring-terminal electrical leads

• Worm/trim-pump drive for OMC Select-Trim

• Marine-duty replacement motor

• Direct electrical/mechanical match for the listed OMC numbers

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• ARC6211 → ARCO replacement for OMC 982069, 982073 and 983318

• Also cross-references 172850, 173596, 979768, 979937 and 981638 on specified systems

OEM / Related Numbers:

• ARC6211

• 172850

• 173596

• 979768

• 979937

• 981638

• 982069

• 982073

• 983318

• Sierra 18-6764

• REC ARC6211

Aftermarket / Verified Equivalents:

• ARCO: 6211

• Sierra: 18-6764

• Recmar: ARC6211/REC application

• Aftermarket OMC three-wire Select-Trim motor family

🚤 Compatibility

Commonly used on:

• OMC Stringer and Cobra Select-Trim electrical/hydraulic systems

Typically suits:

• Engine / drive models:

• OMC Stringer 2.5 L and 3.0 L Select-Trim packages, approximately 1979-1985

• Specified OMC Cobra 1986-1988 three-wire/three-bolt applications only after matching the motor

• Installations whose original motor is 982069, 982073 or 983318

• HP Range: Principally 120-140 HP 2.5/3.0 L applications; system dependent

• Engine / Drive Type: 12 V three-terminal reversible trim motor

• Year Range: Approximately 1979-1988

• Serial / Identification Range: Confirm three wires with ring terminals, mount, shaft/drive and original OMC number.

🔌 Function

Drives the applicable trim pump or worm mechanism in both directions to alter sterndrive angle.

Common signs of failure or replacement requirement:

• Motor fails in both directions

• Slow movement and excessive current

• Intermittent brush contact

• Corroded ring terminals

• Motor runs but coupling/worm does not engage

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
