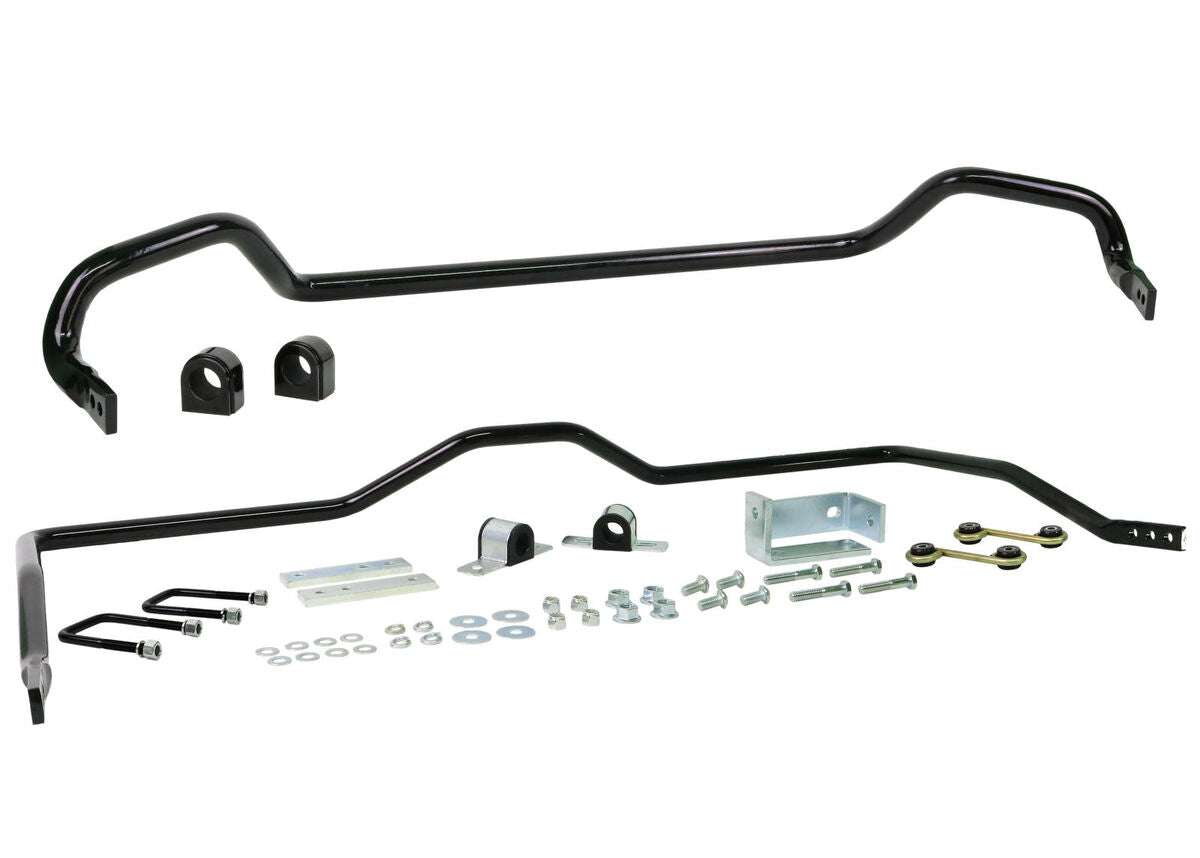

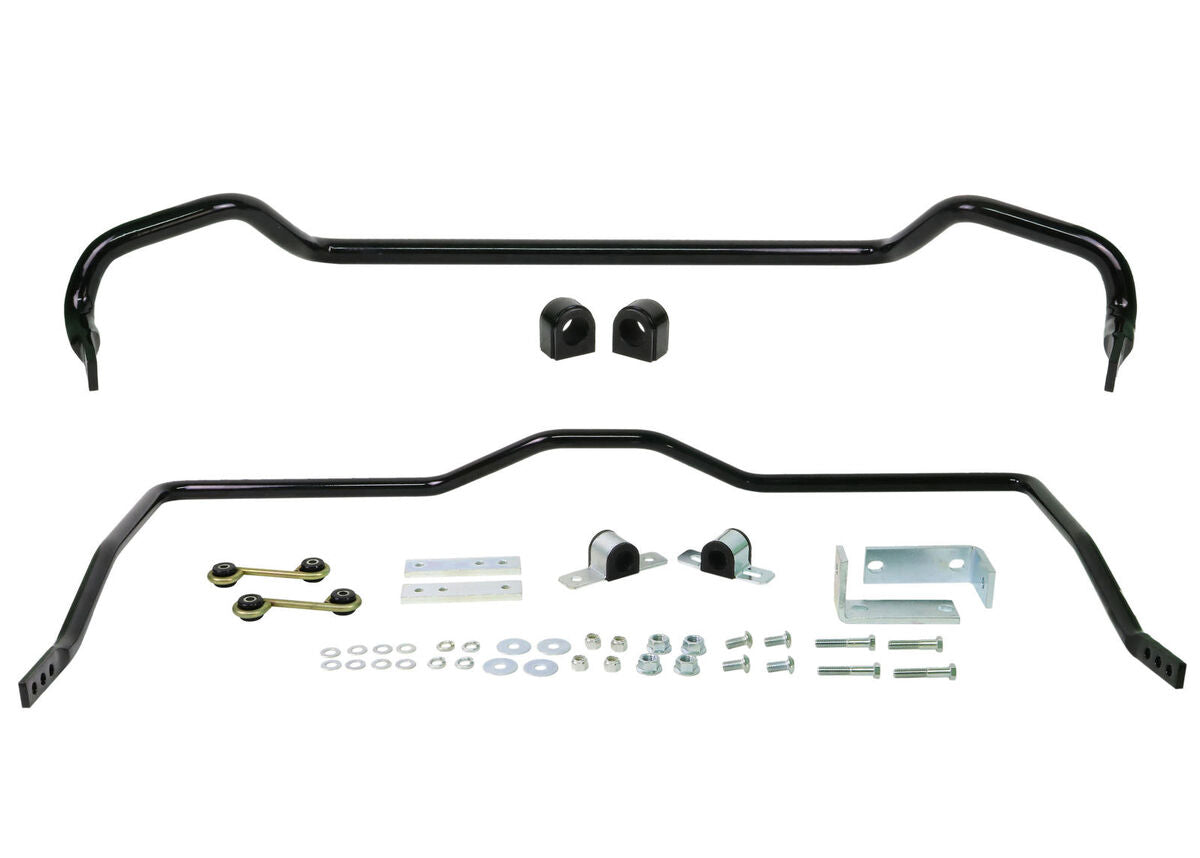

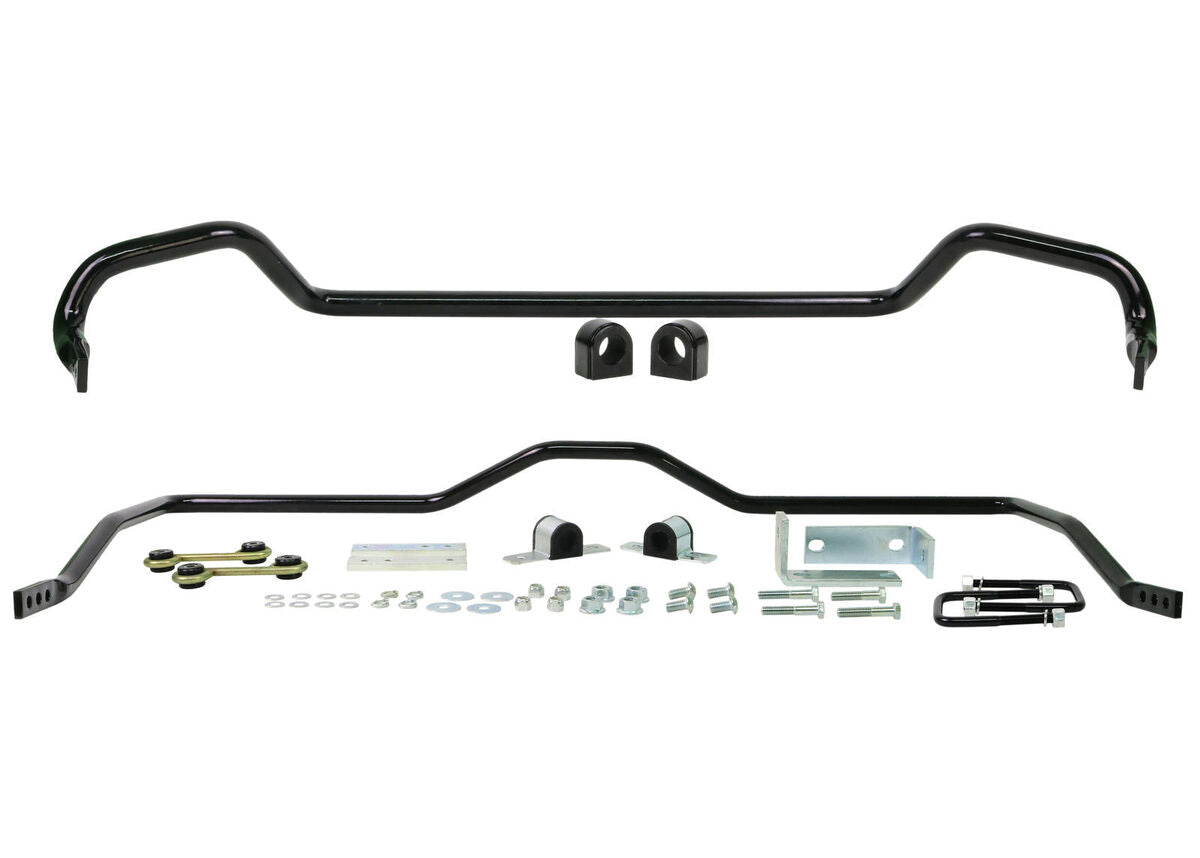

BFK010 Whiteline Front and Rear Sway Bar - Vehicle Kit to Suit Ford Ranger PXI, II and Mazda BT-50 UP, UR | Genuine Whiteline Sway Bar
BFK010 Whiteline Front and Rear Sway Bar - Vehicle Kit to Suit Ford Ranger PXI, II and Mazda BT-50 UP, UR | Genuine Whiteline Sway Bar
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Reduces body roll and sharpens handling; a complete, premium upgrade. Includes: 35mm 2 point adjustable Front Sway bar & 22mm 3 point adjustable Rear Sway.
Kit Contains:
BFF97Z and BFR97Z - essential to 'Activate more grip'
- Front Sway bar - 35mm 2 point adjustable
- Rear Sway bar - 22mm 3 point adjustable
Upgrading sway bars is not just limited to sports or passenger vehicles. 4x4's and utility's benefit greatly from larger sway bars particularly where heavier loads, towing and /or highway driving is involved.
Heavy duty 4x4 sway bars assist with;
- Minimising excess body roll
- Dramatically improving handling performance
- Load carrying
- Steering response
- Braking stability and response
- Most importantly improving safety
We recommend fitting this kit, to get a complete handling upgrade. Benefit Note: Engineered to 'Activate More Grip', BFK010 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 35mm 2 point adjustable front sway bar and 22mm 2 point adjustable rear sway bar, the kit is completed with front and rear sway bar links and mounting accessories (where applicable) that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.
Kit Specifications
| Location | Front | Rear |
|---|---|---|
| Sway Bar | BFF97Z | BFR97Z |
| Diameter (mm) | 35 | 22 |
| Diameter (in) Fraction | 1 25/64" | 7/8" |
| Diameter (in) Decimal | 1.378 | 0.866 |
| Material | Solid Spring Steel | Solid Spring Steel |

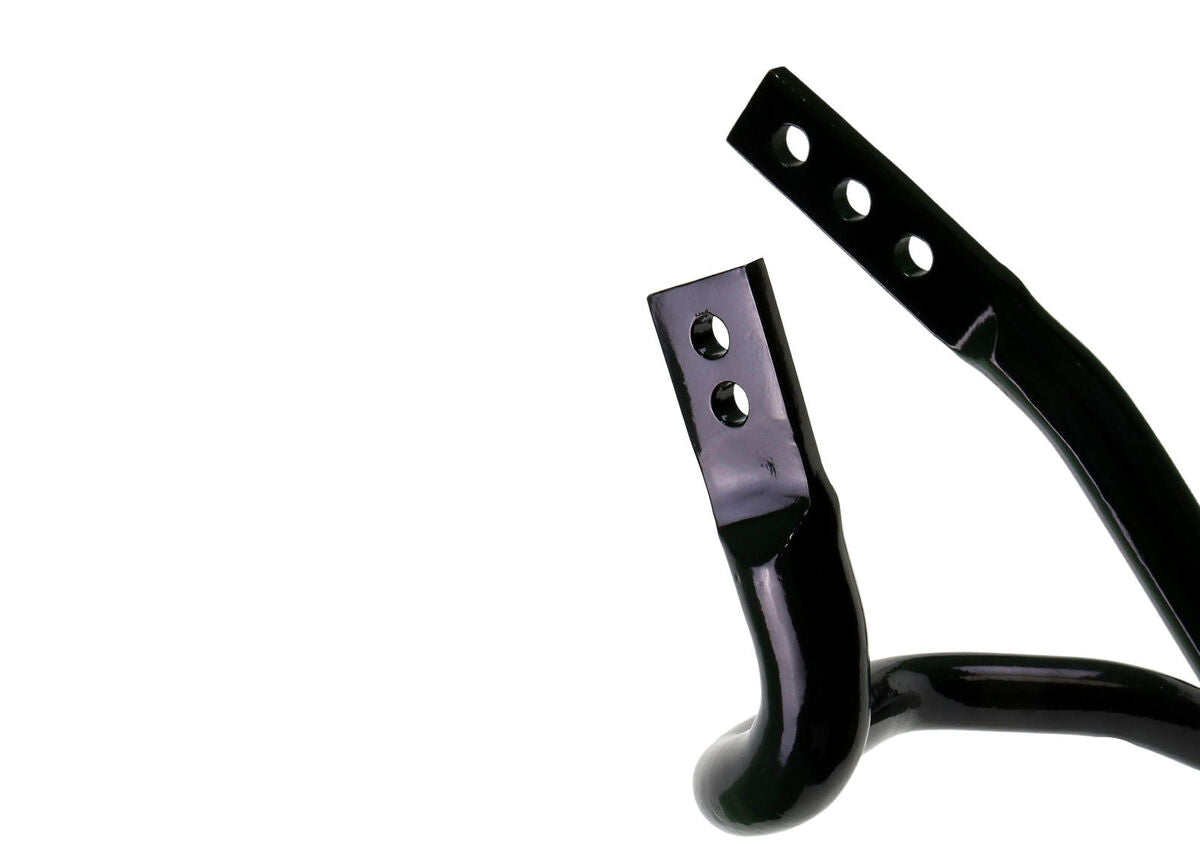

| Sway Bar Adjustment Type | 2 Point Adjustable | 3 Point Adjustable |
| Sway Bar Link Included | No | Yes |
Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 24.06kg | 53.04lbs |
| Length | 220cm | 86.61" |
| Width | 20cm | 7.87" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | BFK010 |
| Components Per | 2 Sway Bars, 2 Links, 4 Bushings, 2 Saddles, 2 Brackets, 2 U-Bolts, 8 Bolts, 16 Washers, 8 Nuts |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Reduces body roll and sharpens handling; a complete, premium upgrade. Includes: 35mm 2 point adjustable Front Sway bar & 22mm 3 point adjustable Rear Sway. |
| EAN | 9319924465019 |
