BMK012 Whiteline Front and Rear Sway Bar - Vehicle Kit to Suit Ford Focus ST LZ | Genuine Whiteline Sway Bar
BMK012 Whiteline Front and Rear Sway Bar - Vehicle Kit to Suit Ford Focus ST LZ | Genuine Whiteline Sway Bar
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Enhances agility without sacrificing ride comfort; a complete, premium upgrade. Includes: 24mm 2 point adjustable Front Sway bar, 24mm 2 point adjustable Rear Sway bar & Front and Rear Sway bar links.

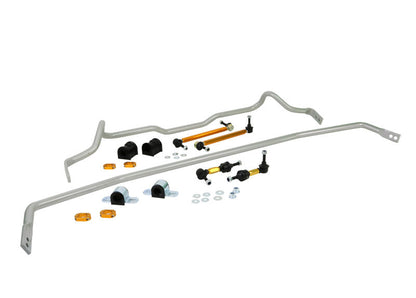

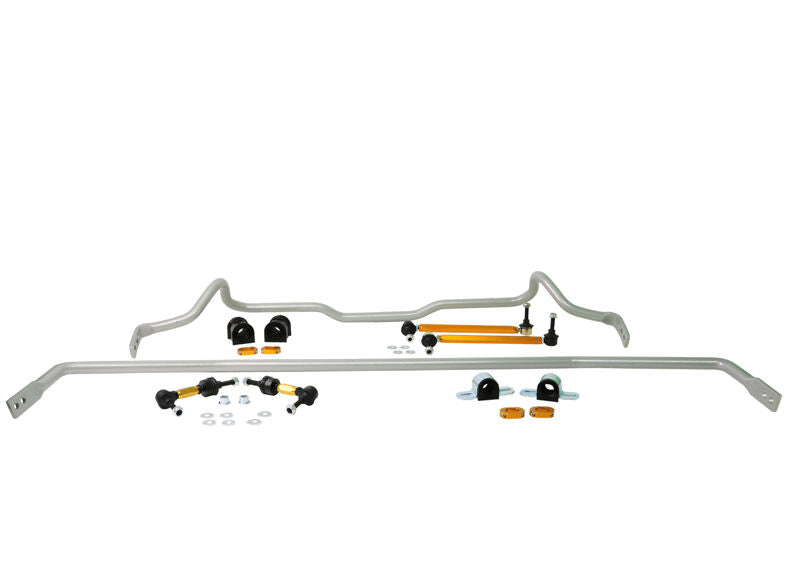

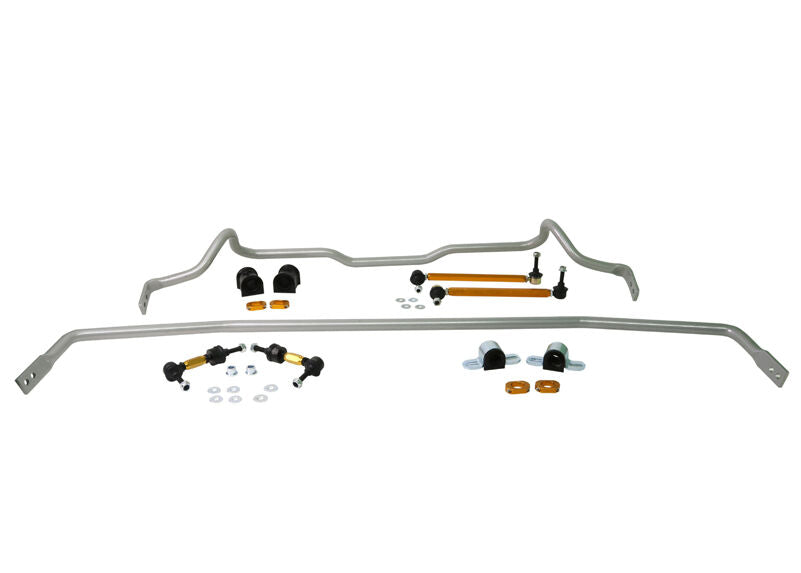

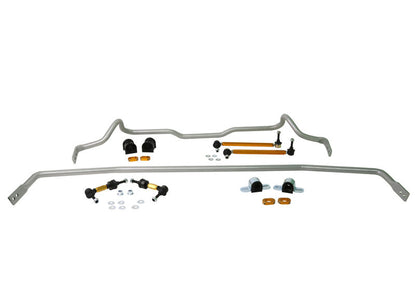

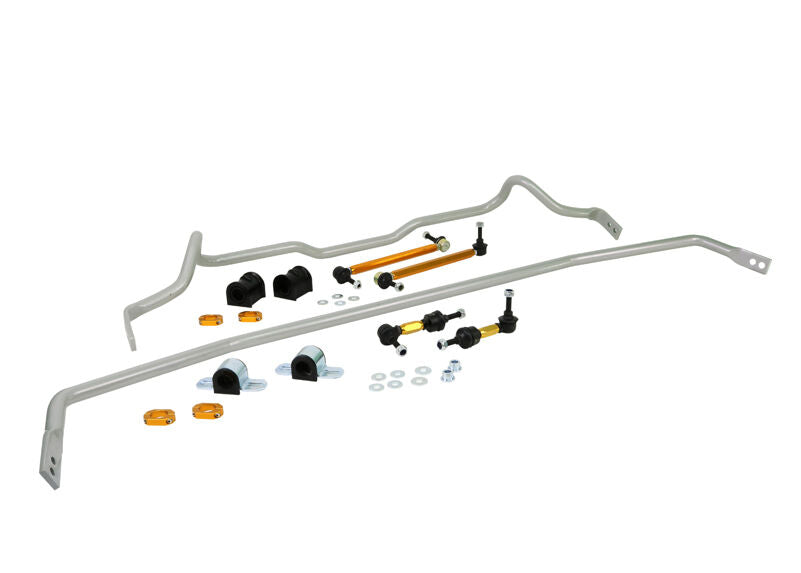

Kit Contains:
BMF64Z, BMR93Z, KLC163 and KLC195 - essential to 'Activate more grip'
- Front Sway bar - 24mm 2 point adjustable
- Rear Sway bar - 24mm 2 point adjustable
- Front Sway bar - link kit
- Rear Sway bar - link kit
Upgrading the sway bars on your vehicle will;
- Minimising excess body roll
- Dramatically improving handling performance
- Tyre life
- Steering response
- Braking stability and response
- No compromise to ride quality, NVH or comfort of the vehicle
We recommend fitting this kit as a complete handling upgrade.
Benefit Note: Engineered to 'Activate More Grip', BMK012 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 24mm 2 point adjustable front sway bar and 24mm 2 point adjustable rear sway bar, the kit is completed with front and rear sway bar links and mounting accessories (where applicable) that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.
Kit Specifications
| Location | Front | Rear |
|---|---|---|
| Sway Bar | BMF64Z | BMR93Z |
| Diameter (mm) | 24 | 24 |
| Diameter (in) Fraction | 61/64" | 61/64" |
| Diameter (in) Decimal | 0.944 | 0.944 |
| Material | Solid Spring Steel | Solid Spring Steel |

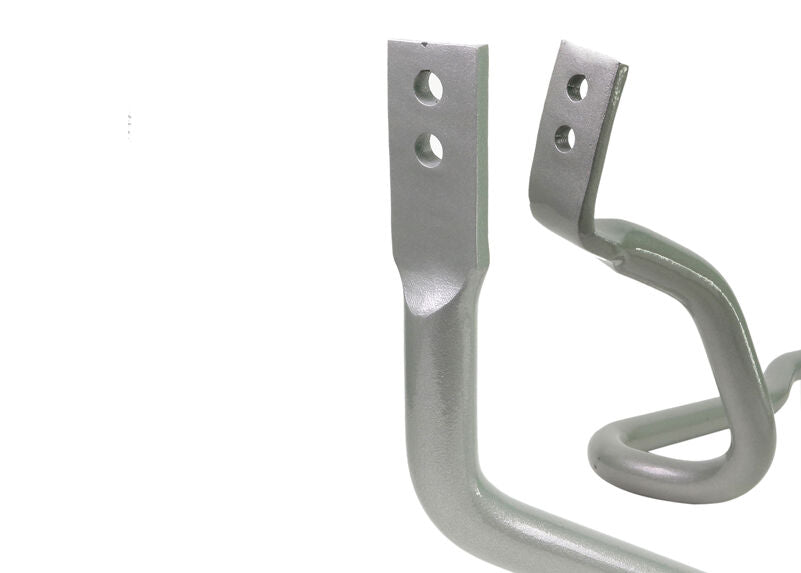

| Sway Bar Adjustment Type | 2 Point Adjustable | 2 Point Adjustable |
| Sway Bar Link Included | Yes | Yes |
Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 13.5kg | 29.76lbs |
| Length | 120cm | 47.24" |
| Width | 25cm | 9.84" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | BMK012 |
| Components Per | 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 10 Washers |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Enhances agility without sacrificing ride comfort; a complete, premium upgrade. Includes: 24mm 2 point adjustable Front Sway bar, 24mm 2 point adjustable Rear Sway bar & Front and Rear Sway bar links. |
| EAN | 9319924410736 |
