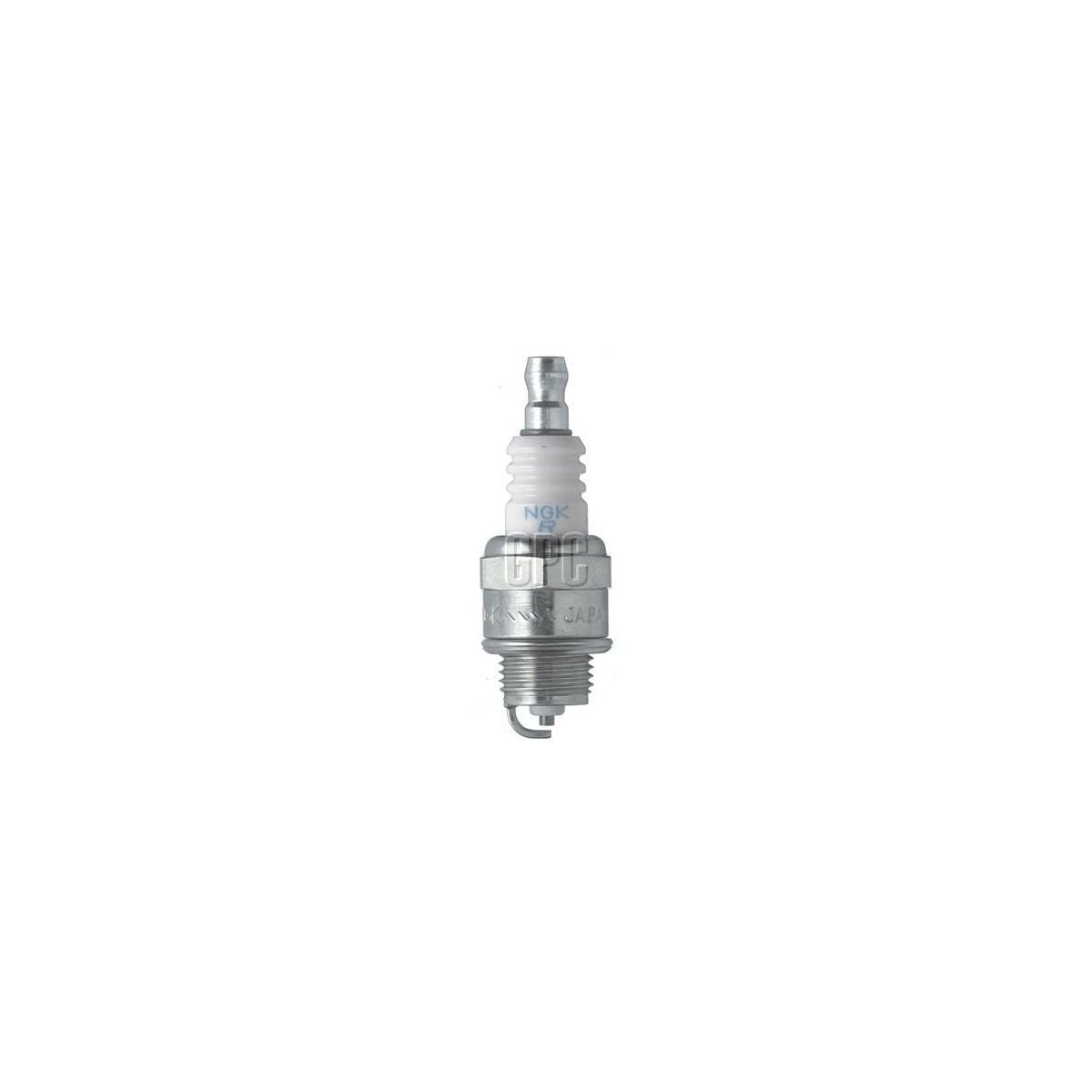

BPMR6A-10 NGK Compact Resistor Spark Plug | Genuine NGK Spark Plug

🔧 Product Description

NGK Compact Resistor Spark Plug – Part Number: BPMR6A-10

Spark plugs are a critical engine component, providing the spark that ignites the air-fuel mixture that drives an engine. NGK spark plugs feature trivalent plating – a silver/chrome-coloured finish on the threads – for corrosion resistance against moisture and chemicals, and are designed to meet or exceed OE standards.

⚙️ Key Features

• Standard nickel centre electrode
• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs reduce the risk of flashover
• Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage
• Compact resistor spark plug
• Factory-set 1.0mm electrode gap
• Helps reduce electrical noise during operation

📏 Specifications

• NGK stock number: 1029
• Thread: 14 mm
• Reach: 9.5 mm (3/8 in)
• Hex: 19 mm (3/4 in)
• Seat: Gasket
• Terminal: Solid
• Type: Compact, Projected Wide Gap

🚘 Application

Listed in NGK's application charts for lawn, garden and commercial equipment. The chart shows a 1.0 mm gap for these engines, but check it against your engine's manual before fitting.

• Honda EM500 (TO 1138369) – Lighting Plants and Generator
• Honda HR21W/CDI (3.5HP GV150 (FROM 2029059)) – Lawnmower
• Honda HR21W/CDI (3.5HP GV150K1 (FROM 3040714)) – Lawnmower
• Honda HR21AW/CDI (3.5HP GV150K1 (FROM 3040715)) – Lawnmower
• Honda HR21-5W/CDI (4HP GV200 (FROM 1026849)) – Lawnmower
• Honda GV200 (W/CDI) (4.0HP) – Power Equipment Engine
• Honda GV400K1 (W/CDI) (11.0HP) – Power Equipment Engine

🔄 Supersession & Cross Reference

NGK's cross-reference tables list this plug against these part numbers.

• DENSO: 6032, W20MPRU10

📦 Condition

• Brand new genuine product
• Supplied in original packaging
