BPR5ES-11 NGK Standard Resistor Spark Plug | Genuine NGK Spark Plug

🔧 Product Description

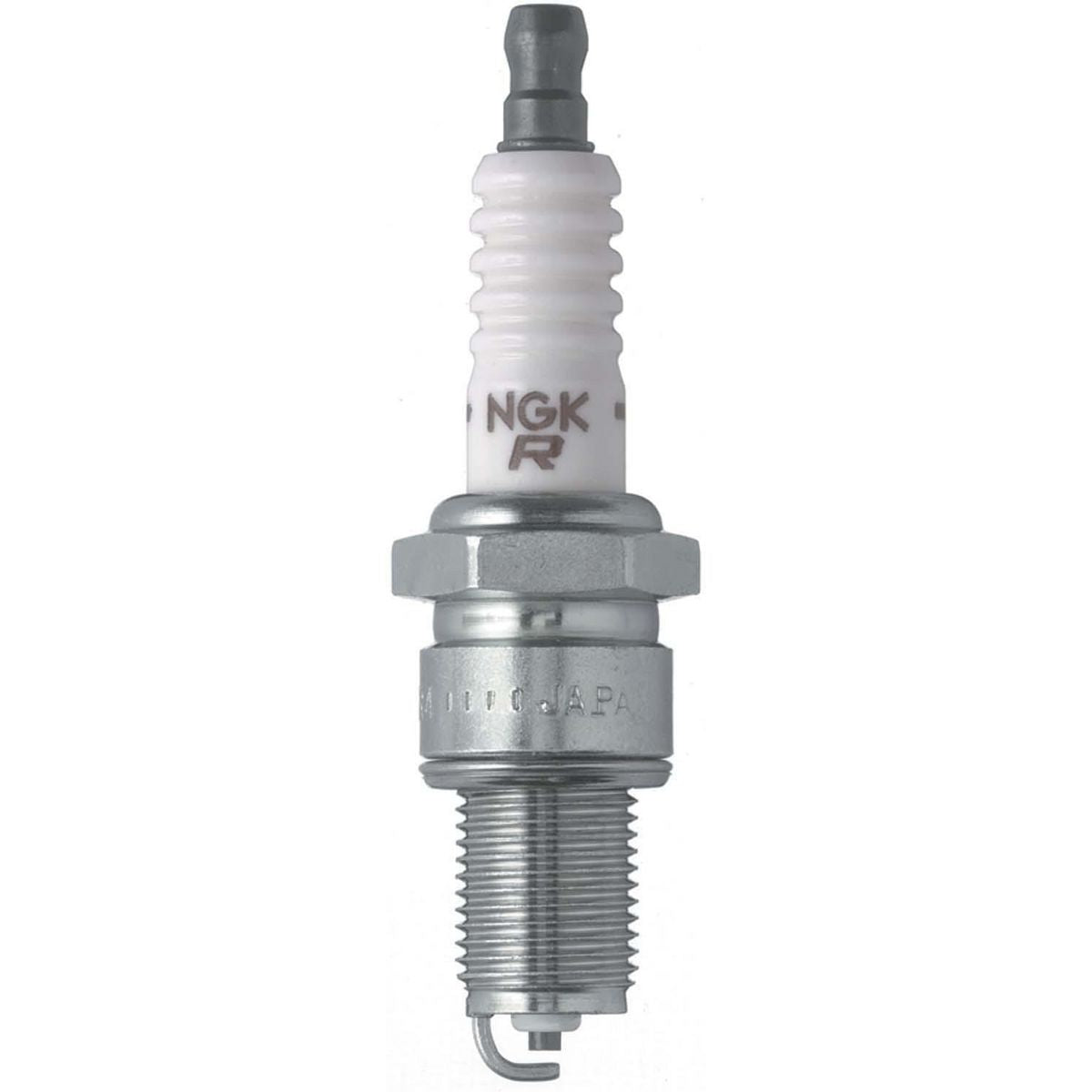

NGK Standard Resistor Spark Plug – Part Number: BPR5ES-11

Spark plugs are a critical engine component, providing the spark that ignites the air-fuel mixture that drives an engine. NGK spark plugs feature trivalent plating – a silver/chrome-coloured finish on the threads – for corrosion resistance against moisture and chemicals, and are designed to meet or exceed OE standards.

⚙️ Key Features

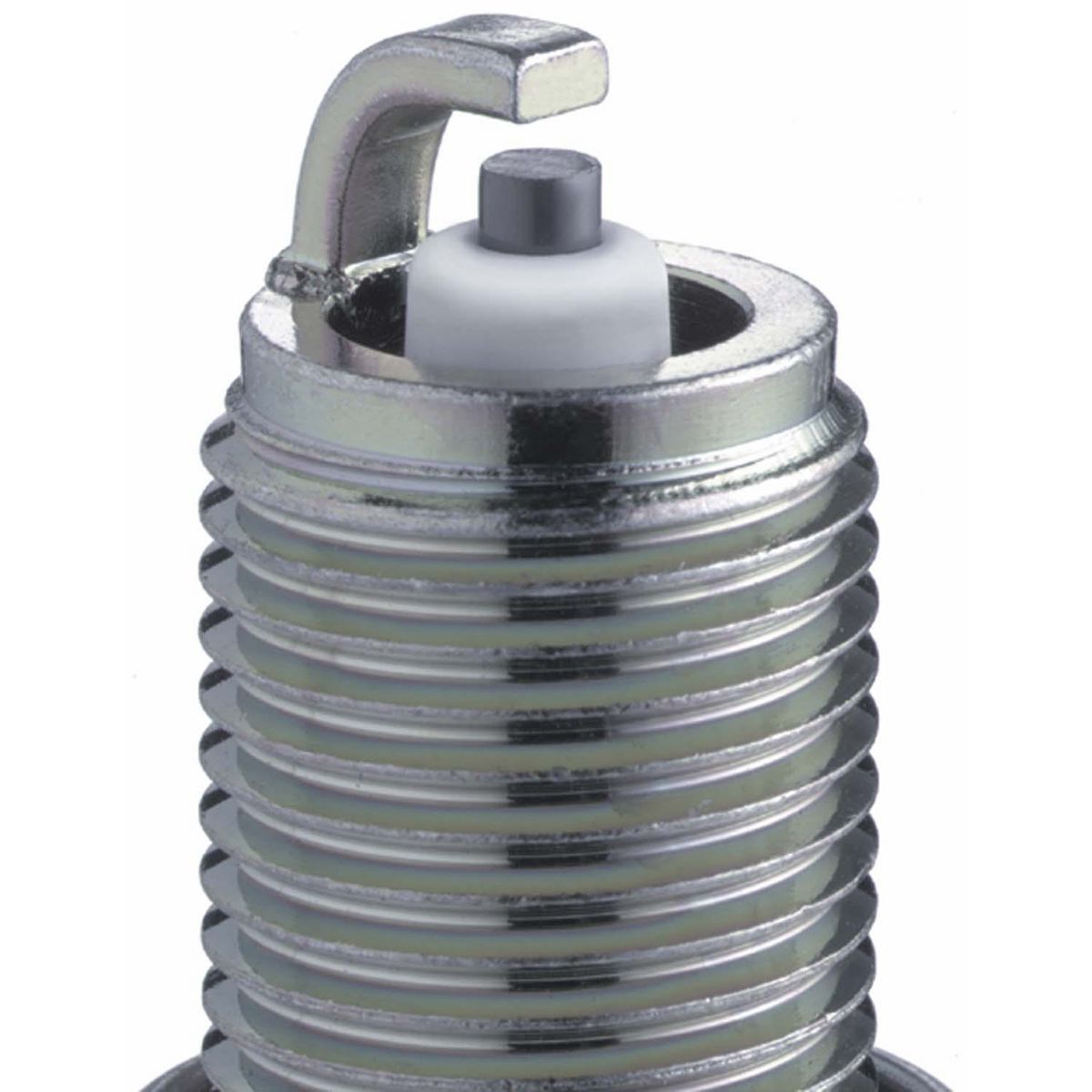

• Standard nickel centre electrode
• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs reduce the risk of flashover
• Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

📏 Specifications

• NGK stock number: 7634
• Thread: 14 mm
• Reach: 19 mm (3/4 in)
• Hex: 20.8 mm (13/16 in)
• Seat: Gasket
• Terminal: Solid
• Type: Projected, Wide Gap

🚘 Application

Listed in NGK's application charts for marine, motorcycle, ATV and snowmobile equipment and lawn, garden and commercial equipment and automotive vehicles. The chart shows a 1.0 mm gap for these engines, but check it against your engine's manual before fitting.

• American Iron Horse BANDIT ST (1852, 2003-1999) – Motorcycle
• American Iron Horse CLASSIC SX (1852, 2003-1999) – Motorcycle
• American Iron Horse LEGEND SC (1852, 2003-1999) – Motorcycle
• American Iron Horse OUTLAW SY (1852, 2003-1999) – Motorcycle
• American Iron Horse SLAMMER SZ (1852, 2003-1999) – Motorcycle
• American Iron Horse STALKER SR (1852, 2003-1999) – Motorcycle
• American Iron Horse THUNDER SW (1852, 2003-1999) – Motorcycle
• American Iron Horse BANDIT ST (1753, 2003-1999) – Motorcycle
• American Iron Horse CLASSIC SX (1753, 2003-1999) – Motorcycle
• American Iron Horse LEGEND SC (1753, 2003-1999) – Motorcycle
• American Iron Horse OUTLAW SY (1753, 2003-1999) – Motorcycle
• American Iron Horse SLAMMER SZ (1753, 2003-1999) – Motorcycle
• American Iron Horse STALKER SR (1753, 2003-1999) – Motorcycle
• American Iron Horse THUNDER SW (1753, 2003-1999) – Motorcycle
• American Iron Horse BANDIT ST (1573, 2002-1999) – Motorcycle
• American Iron Horse CLASSIC SX (1573, 2002-1999) – Motorcycle
• American Iron Horse LEGEND SC (1573, 2002-1999) – Motorcycle
• American Iron Horse OUTLAW SY (1573, 2002-1999) – Motorcycle
• American Iron Horse SLAMMER SZ (1573, 2002-1999) – Motorcycle
• American Iron Horse STALKER SR (1573, 2002-1999) – Motorcycle
• American Iron Horse THUNDER SW (1573, 2002-1999) – Motorcycle
• American Performance Cycle HIGH ROLLER S - S&S ENGINE 96 CU IN (1573) – Motorcycle
• American Performance Cycle SPIRIT S - S&S ENGINE 96 CU IN (1573) – Motorcycle
• Big Dog ALL MODELS - S&S ENGINE 107 CU IN (1750) – Motorcycle
• Big Dog ALL MODELS (1507) – Motorcycle

That is the 25 most common of 159 applications NGK's charts list for this plug – ask us to check yours.

🔄 Supersession & Cross Reference

NGK's cross-reference tables list this plug against these part numbers.

• Bosch: 4019, 4021, 4219, 4221, 7506, 7507, 7513, 7907 and 7 more
• Champion: 2301, 322, 322-1, 322C2, 322ECO, 322EZ, 322S, RN11YC4 and 2 more
• DENSO: 3020, 3022, 3201, W16EPR-S11, W16EPR-U10, W16EPR-U11, W16EPR11
• Harley Davidson/Screamin' Eagle: HD5-A6, HD5A6A, HD5R6, HD5R6A
• Harley-Davidson: HD5-A6, HD5A6A, HD5R6, HD5R6A
• Motorcraft: 1Y03, AGS32C-11, AGS32C11
• Accel: 2410A
• Autolite: 64
• Beck Arnley: 1765107

📦 Condition

• Brand new genuine product
• Supplied in original packaging
