BPR6HS-10 NGK Standard Resistor Spark Plug | Genuine NGK Spark Plug

🔧 Product Description

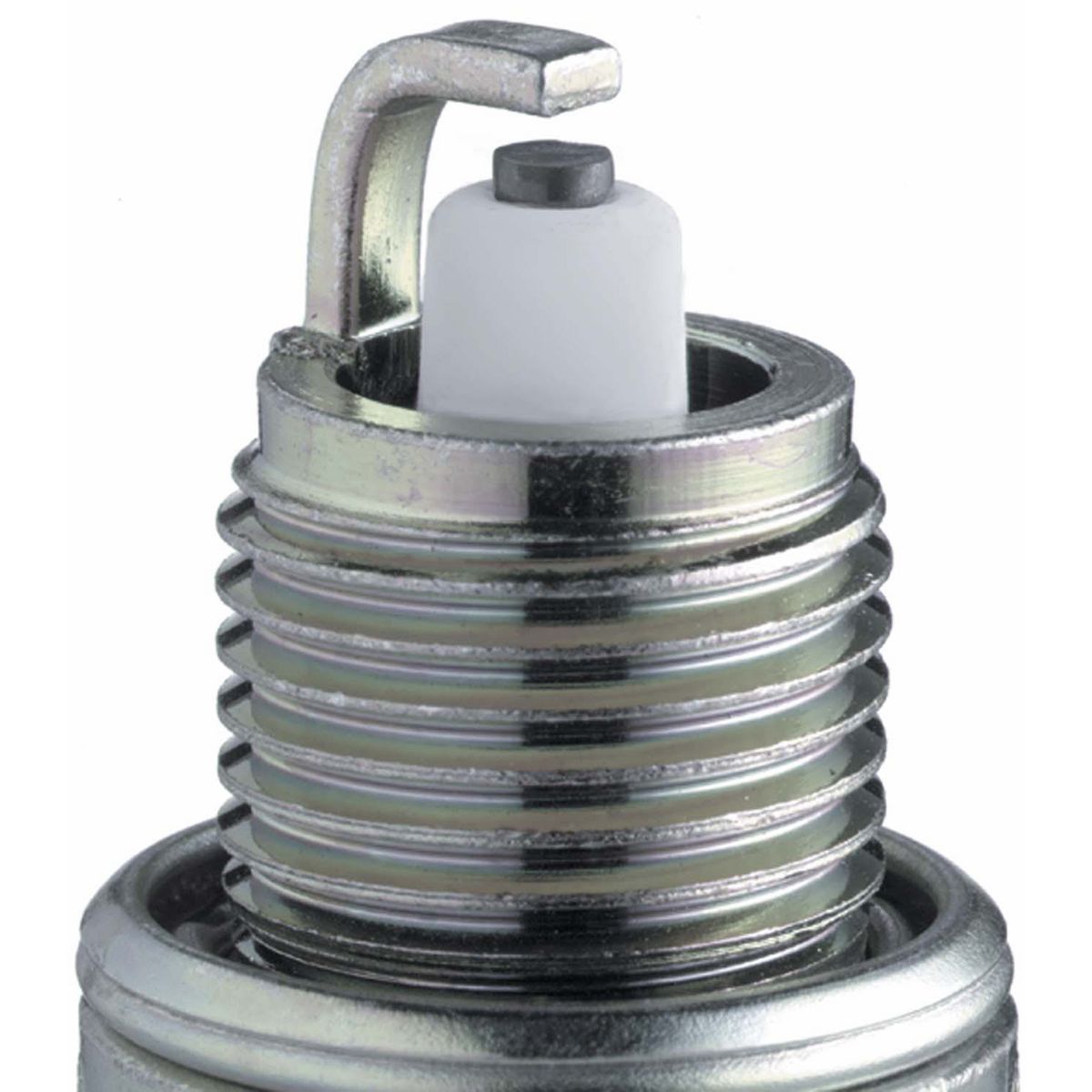

NGK Standard Resistor Spark Plug – Part Number: BPR6HS-10

Spark plugs are a critical engine component, providing the spark that ignites the air-fuel mixture that drives an engine. NGK spark plugs feature trivalent plating – a silver/chrome-coloured finish on the threads – for corrosion resistance against moisture and chemicals, and are designed to meet or exceed OE standards.

⚙️ Key Features

• Standard nickel centre electrode
• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs reduce the risk of flashover
• Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

📏 Specifications

• NGK stock number: 2633
• Thread: 14 mm
• Reach: 12.7 mm (1/2 in)
• Hex: 20.8 mm (13/16 in)
• Seat: Gasket
• Type: Projected, Wide Gap

🚘 Application

Listed in NGK's application charts for marine, motorcycle, ATV and snowmobile equipment and lawn, garden and commercial equipment. The chart shows a 1.0 mm gap for these engines, but check it against your engine's manual before fitting.

• Mariner 3.3 (3.3 HP, 2002-1993) – Outboard Engine
• Mariner 2.5 (2.5 HP, 2002-1990) – Outboard Engine
• Mercury 3.3 (3.3 HP, 2006-1993) – Outboard Engine
• Mercury 3 (3 HP, 1992-1990) – Outboard Engine
• Nissan NS 3.5A (3.5 HP, 2006-1997) – Outboard Engine
• Nissan NS 3.5A2 (3.5 HP, 2007) – Outboard Engine
• Nissan NS 3.5B (3.5 HP, 2007-1997) – Outboard Engine
• Nissan NS 2.5A (2.5 HP, 2007-1997) – Outboard Engine
• Tohatsu M3.5A (3.5 HP, 2007-1997) – Outboard Engine
• Tohatsu M3.5B (3.5 HP, 2007-1997) – Outboard Engine
• Tohatsu M2.5A (2.5 HP, 2007-1997) – Outboard Engine
• Harley-Davidson XL (1000, 1985-1979) – Motorcycle
• Yamaha SH50 - SCOOTER - RAZZ (50, 2001-1987) – Motorcycle
• Honda EL5000 (13HP HONDA GX360) – Lighting Plants and Generator
• Honda ES6500 (13HP HONDA GX360) – Lighting Plants and Generator
• Honda EV4000 (10HP HONDA G400) – Lighting Plants and Generator
• Honda EX5500 (13HP HONDA GX360) – Lighting Plants and Generator
• Honda EX6500 (13HP HONDA GX360) – Lighting Plants and Generator
• Pro-Chopper ALL (13HP HONDA OHV) – Outdoor Power Equipment
• Honda GX360 (13.0HP) – Power Equipment Engine

🔄 Supersession & Cross Reference

NGK's cross-reference tables list this plug against these part numbers.

• DENSO: 3268, W20FPR-U10, W20FPR-UL10

📦 Condition

• Brand new genuine product
• Supplied in original packaging
