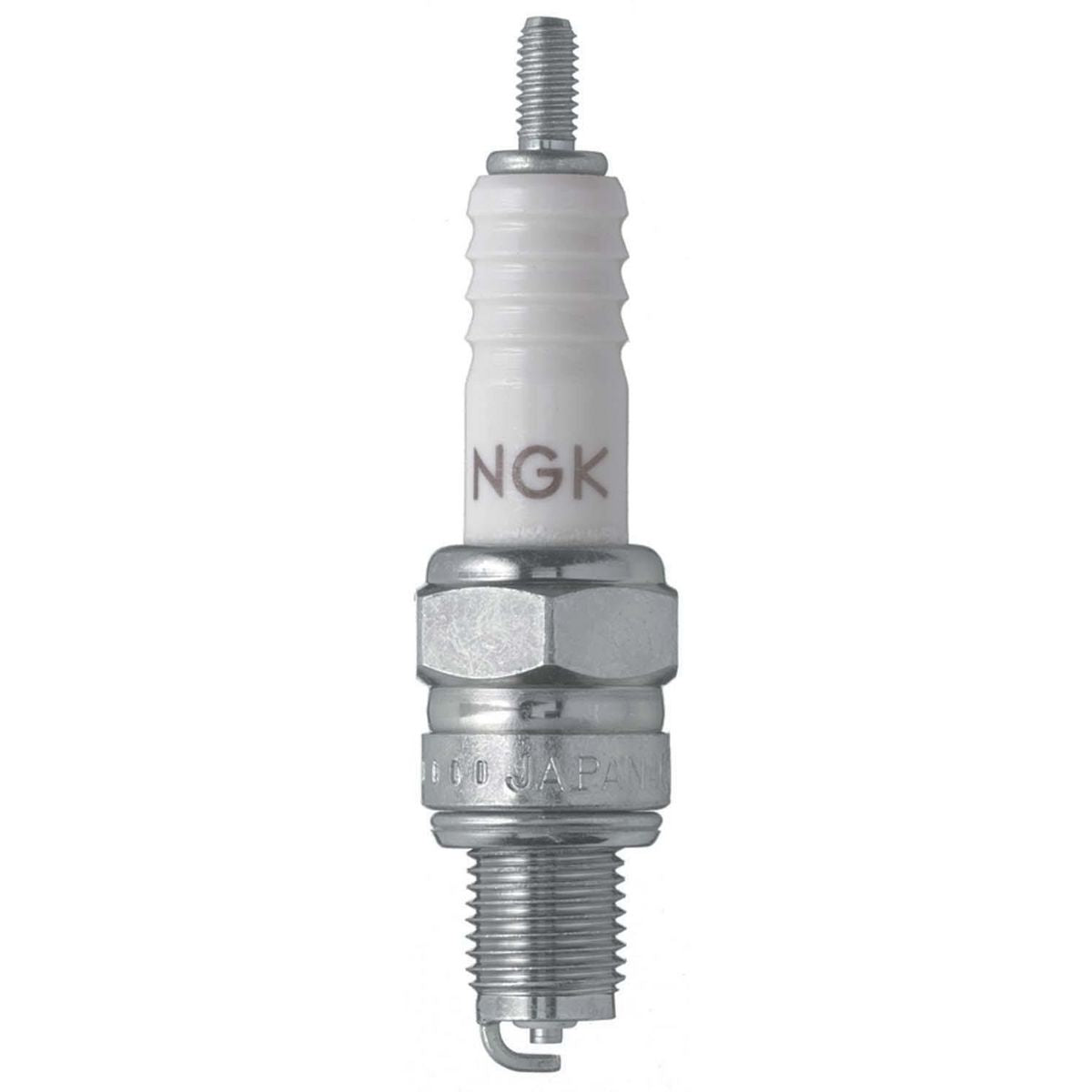

• C7HSA NGK spark plug

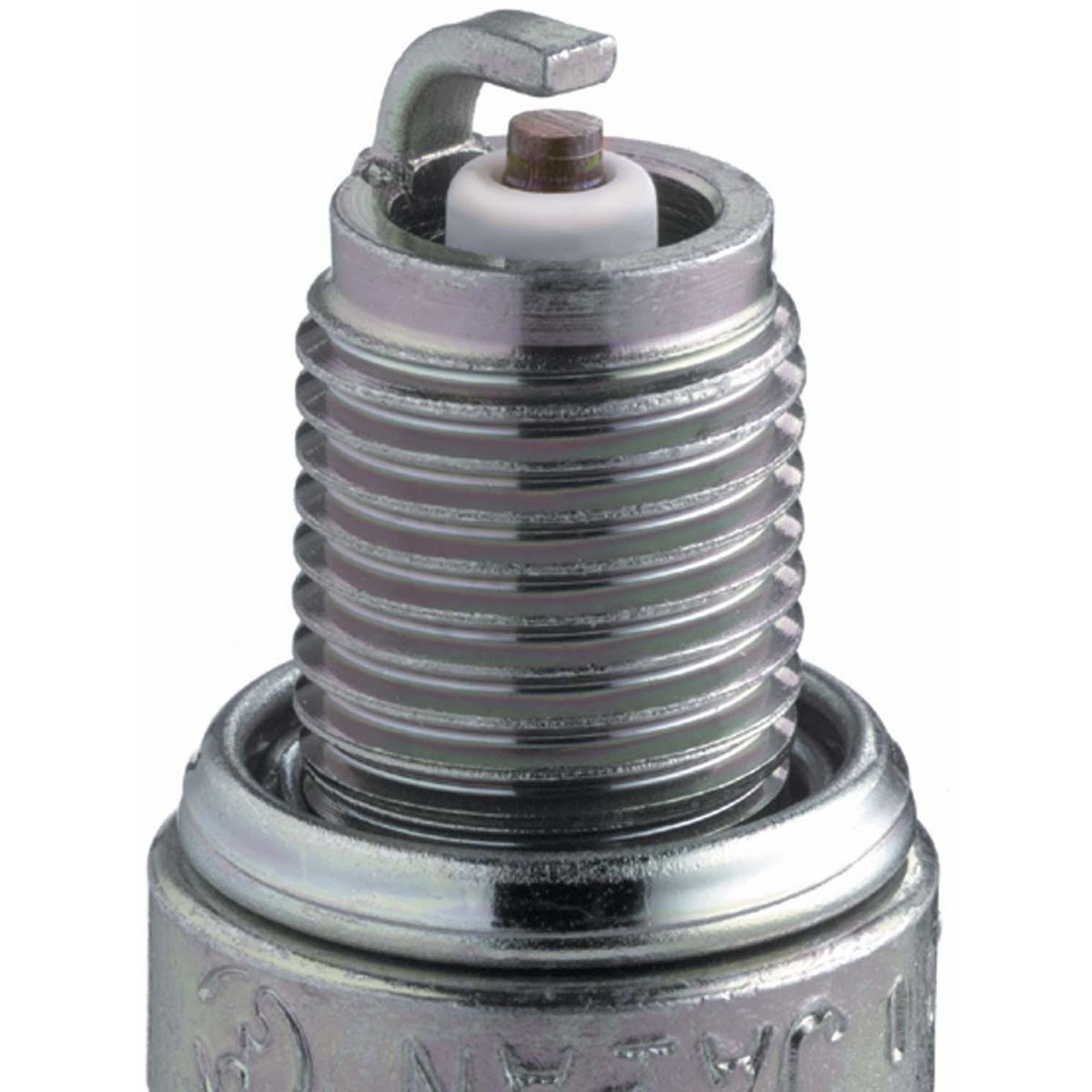

  • C7HSA NGK spark plug firing end
1 2

C7HSA NGK Standard Spark Plug | Genuine NGK Spark Plug

C7HSA NGK Standard Spark Plug | Genuine NGK Spark Plug

$11.00 AUD
$11.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

NGK Standard Spark Plug – Part Number: C7HSA

Spark plugs are a critical engine component, providing the spark that ignites the air-fuel mixture that drives an engine. NGK spark plugs feature trivalent plating – a silver/chrome-coloured finish on the threads – for corrosion resistance against moisture and chemicals, and are designed to meet or exceed OE standards.

⚙️ Key Features

  • Standard nickel centre electrode
  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs reduce the risk of flashover
  • Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

📏 Specifications

  • NGK stock number: 4629
  • Thread: 10 mm
  • Reach: 12.7 mm (1/2 in)
  • Hex: 16 mm (5/8 in)
  • Seat: Gasket
  • Terminal: Threaded stud

🚘 Application

Listed in NGK's application charts for marine, motorcycle, ATV and snowmobile equipment. The gap is not the same on all of them – the chart lists between 0.5 mm and 1.0 mm depending on the engine, so check the line for yours.

  • Baja PX250 (250) – Motorcycle
  • Baja SC125 (125) – Motorcycle
  • Genuine BUDDY 125 (125) – Motorcycle
  • Honda CM200T (200, 1981-1980) – Motorcycle
  • Honda CM185T (185, 1979-1978) – Motorcycle
  • Honda XL100 (100, 1981-1979) – Motorcycle
  • Honda XR100 (100, 1981) – Motorcycle
  • Honda XL80 (80, 1981-1980) – Motorcycle
  • Honda XR80 (80, 1981-1979) – Motorcycle
  • Honda XL75 (75, 1979-1977) – Motorcycle
  • Honda XR75 (75, 1978-1973) – Motorcycle
  • Honda C70 (70, 1981-1980) – Motorcycle
  • Honda CL70 (70, 1972-1969) – Motorcycle
  • Honda CT70 (70, 1981-1969) – Motorcycle
  • Honda CT70 (70, 1997) – Motorcycle
  • Honda CT70H (70, 1973-1970) – Motorcycle
  • Honda SL70 (70, 1973-1971) – Motorcycle
  • Honda XL70 (70, 1976-1974) – Motorcycle
  • Honda S65 (65, 1969-1965) – Motorcycle
  • Honda CA105T (55, 1965-1962) – Motorcycle
  • Honda C100 (50, 1962-1959) – Motorcycle
  • Honda C102 (50, 1962-1960) – Motorcycle
  • Honda C110 (50, 1962-1960) – Motorcycle
  • Honda CA100 (50, 1970-1962) – Motorcycle
  • Honda CA100T (50, 1962-1961) – Motorcycle

That is the 25 most common of 116 applications NGK's charts list for this plug – ask us to check yours.

🔄 Supersession & Cross Reference

NGK's cross-reference tables list this plug against these part numbers.

  • DENSO: 4006, U22FS, U22FS-U
  • Autolite: 2795, 4193
  • Champion: P-Z7HC, Z8
  • ACDelco: S102F
  • Magneti Marelli: CU7N
  • Motorcraft: PV2
  • Torch: A7C

📦 Condition

  • Brand new genuine product
  • Supplied in original packaging
