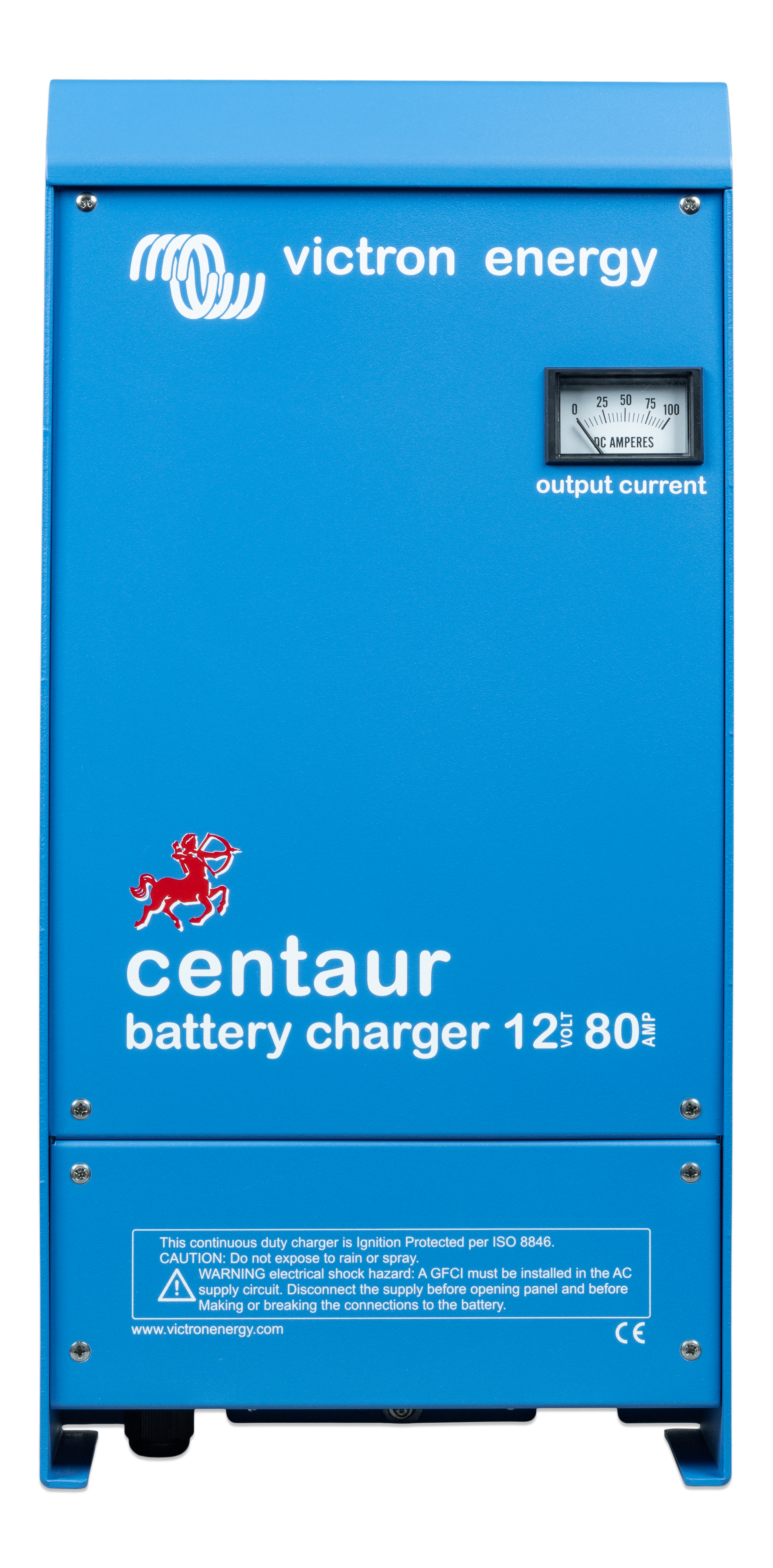

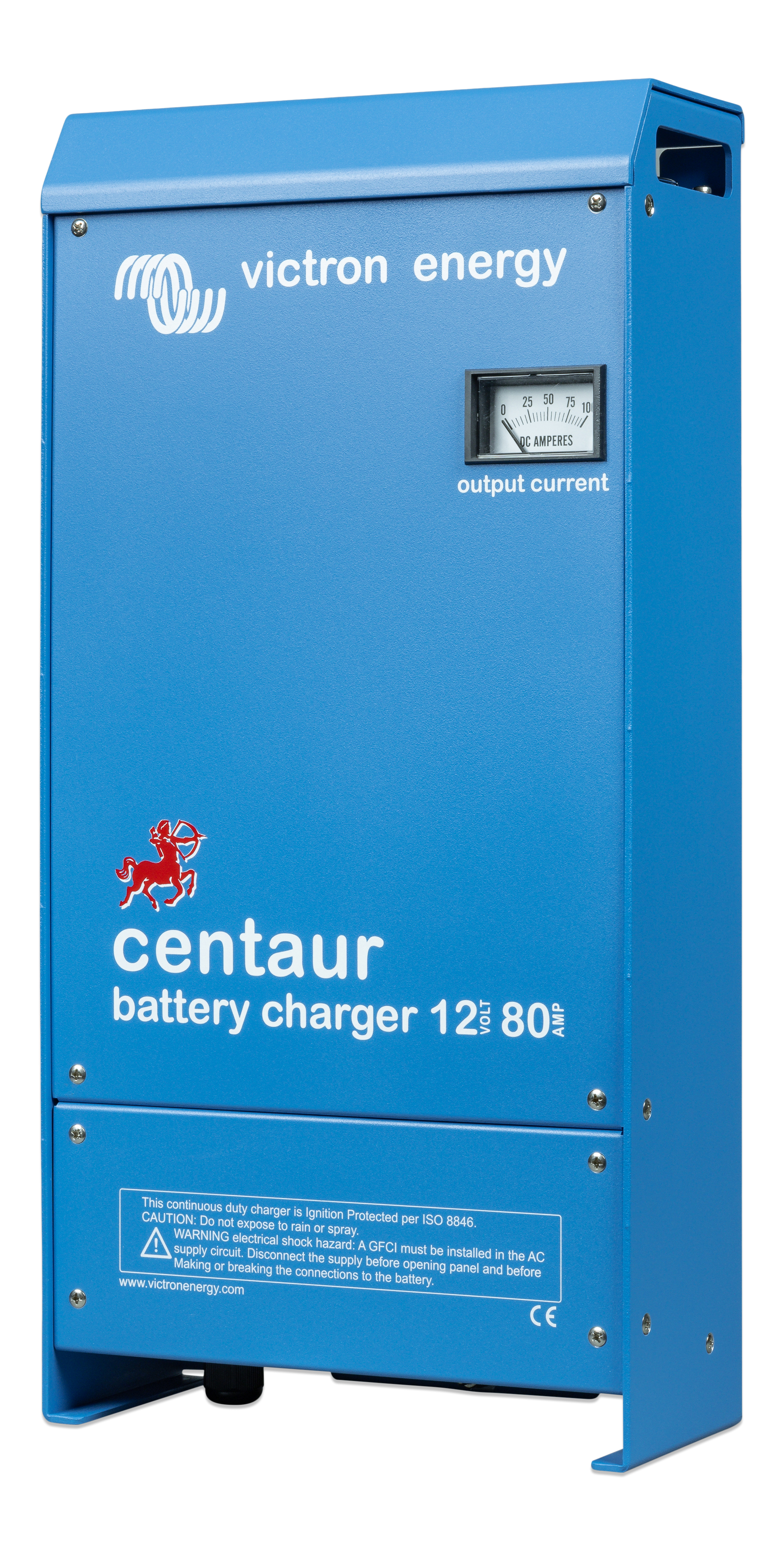

CCH012080000 - Centaur Charger 12/80(3) 120-240V

CCH012080000 - Centaur Charger 12/80(3) 120-240V

12 Volt 80 Amp 3 Outputs

Quality without compromise

Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an

adverse environment: heat, humidity and salt air.

Circuit boards are protected with an acrylic coating for maximum corrosion resistance.

Temperature sensors ensure that power components will always operate within specified limits, if needed by

automatic reduction of output current under extreme environmental conditions.

Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)

All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether

50 Hz or 60 Hz.

The chargers also accept a 90-400V DC supply.

Three outputs that each can supply the full output current

Three isolated outputs to simultaneously charge 3 battery banks

Each output is capable to supply the full rated current.

Three stage charging, with temperature compensation

The Centaur charges at bulk rate until the output has reduced to 70 % of the rated Amps, at which a 4 hour

timer begins. After the timed period the charger switches to float rate.

An internal temperature sensor is used to compensate the charge voltage with - 2 mV/ºC (- 1 mV/ºF) per cell.

A dip switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM

batteries.

Learn more about batteries and battery charging

To learn more about batteries and charging batteries (including the pro's and con's of multi bank charging and

intelligent charging), please refer to our book ‘Electricity on Board' (available free of charge from Victron Energy

and downloadable from www.victronenergy.com).
