Chain and Chain Sleeve Assembly 6m | Marine Anchoring Solutions

🔧 Product Description

6mm Anchor Chain and Braided Sleeve Assembly 6m - Part Number: CHAIN-SLEEVE-6M

A 6m anchor-chain section supplied with a braided protective sleeve fitted over the chain. The assembly combines the holding and abrasion advantages of a chain lead with reduced deck noise and less risk of scratching the hull, bow roller or hawse area.

⚙️ Key Features

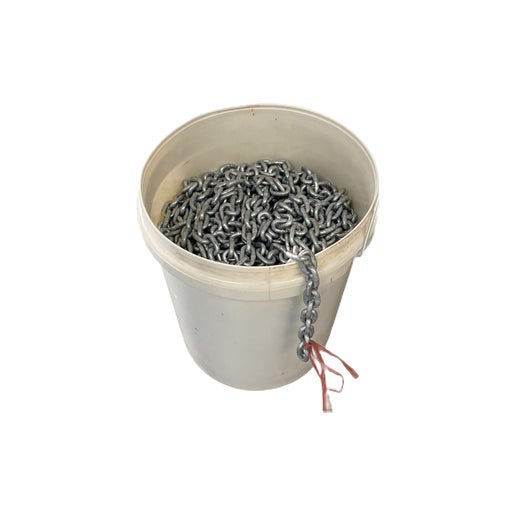

• Six-metre chain lead for anchor-rode assemblies

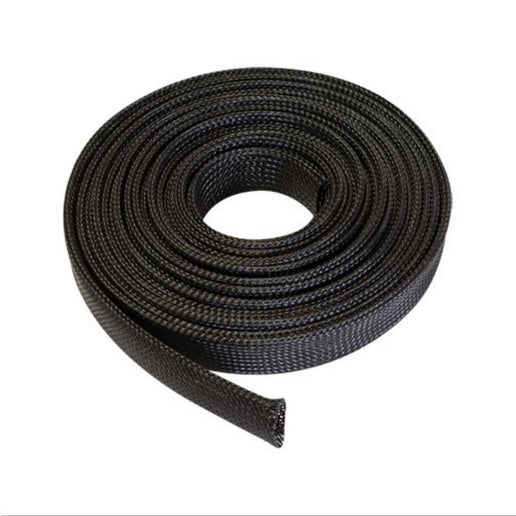

• Braided sleeve reduces metallic noise
• Sleeve helps protect painted and gelcoat surfaces
• Ready for connection to compatible rope and anchor hardware
• Useful for manual or drum-winch anchor systems

📏 Specifications

• Assembly length: 6m
• Nominal chain size: 6mm short-link
• Protective sleeve length: Approximately 6m
• Sleeve is non-load-bearing and does not increase chain capacity

🔄 Cross Reference & Comparable Options

• Related replacement sleeve: 567697
• Related unsleeved chain: 6mm short-link anchor chain per metre

⚓ Application & Selection

• Connect to the anchor using a correctly rated shackle or swivel
• Connect to rope using a rated shackle, thimble or professional splice
• Confirm the sleeved assembly passes through the deck roller or hawse pipe
• Do not run the sleeved chain through a conventional chain gypsy unless approved
• Inspect both the hidden chain and the sleeve at regular intervals

📦 Condition

• Brand new
• Supplied as one 6m chain-and-sleeve assembly
• Supplied in original or equivalent packaging
