CR135 Lone Star Marine Deluxe Deck Roller 135mm | Marine Anchoring Solutions

🔧 Product Description

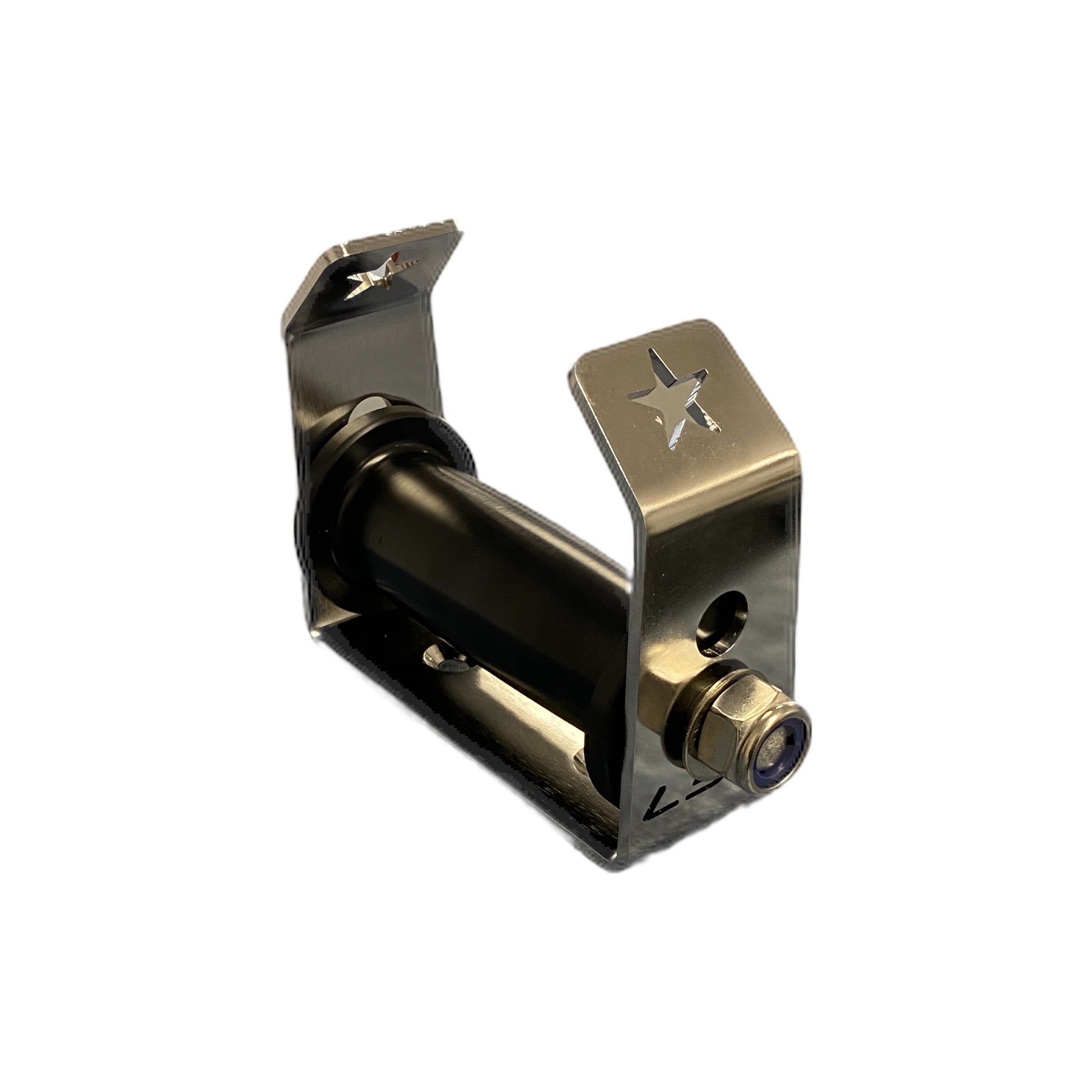

Lone Star Marine Deluxe Captive Deck Roller 135mm - Part Number: CR135

An Australian-made captive deck roller for guiding anchor rope and chain from the deck into a below-deck drum windlass or anchor locker. The curved UV-stabilised roller sits within a polished 316 stainless-steel frame and can be height-adjusted with a removable pin.

⚙️ Key Features

• Captive design helps retain rope and chain within the roller
• High-polish 5mm 316 stainless-steel base
• Australian-made UV-stabilised curved roller
• Adjustable-height retaining pin
• Two countersunk mounting holes with installation hardware

📏 Specifications

• Nominal roller width: 135mm
• Approximate overall length including bolt: 150mm
• Approximate frame width: 60mm
• Stainless base thickness: Approximately 5mm
• Commonly paired with Lone Star GX1 and GX2 drum winches

🔄 Cross Reference & Comparable Options

• Larger same-family deck roller: Lone Star CR195
• Compare mounting footprint and rope/chain opening before substituting another deck roller

🛠️ Installation & Use

• Mount directly above or in line with the below-deck winch drum and rode path
• Through-bolt to a strong deck structure using the supplied or equivalent corrosion-resistant hardware
• Adjust the captive pin height so the rode remains retained without excessive friction
• Ensure chain links, rope splice and connecting hardware pass freely
• Inspect roller wear, pin security and deck sealing periodically

📦 Condition

• Brand new
• Supplied as one Lone Star Marine CR135 deck-roller assembly
• Supplied in original or equivalent packaging
