🔧 Product Description

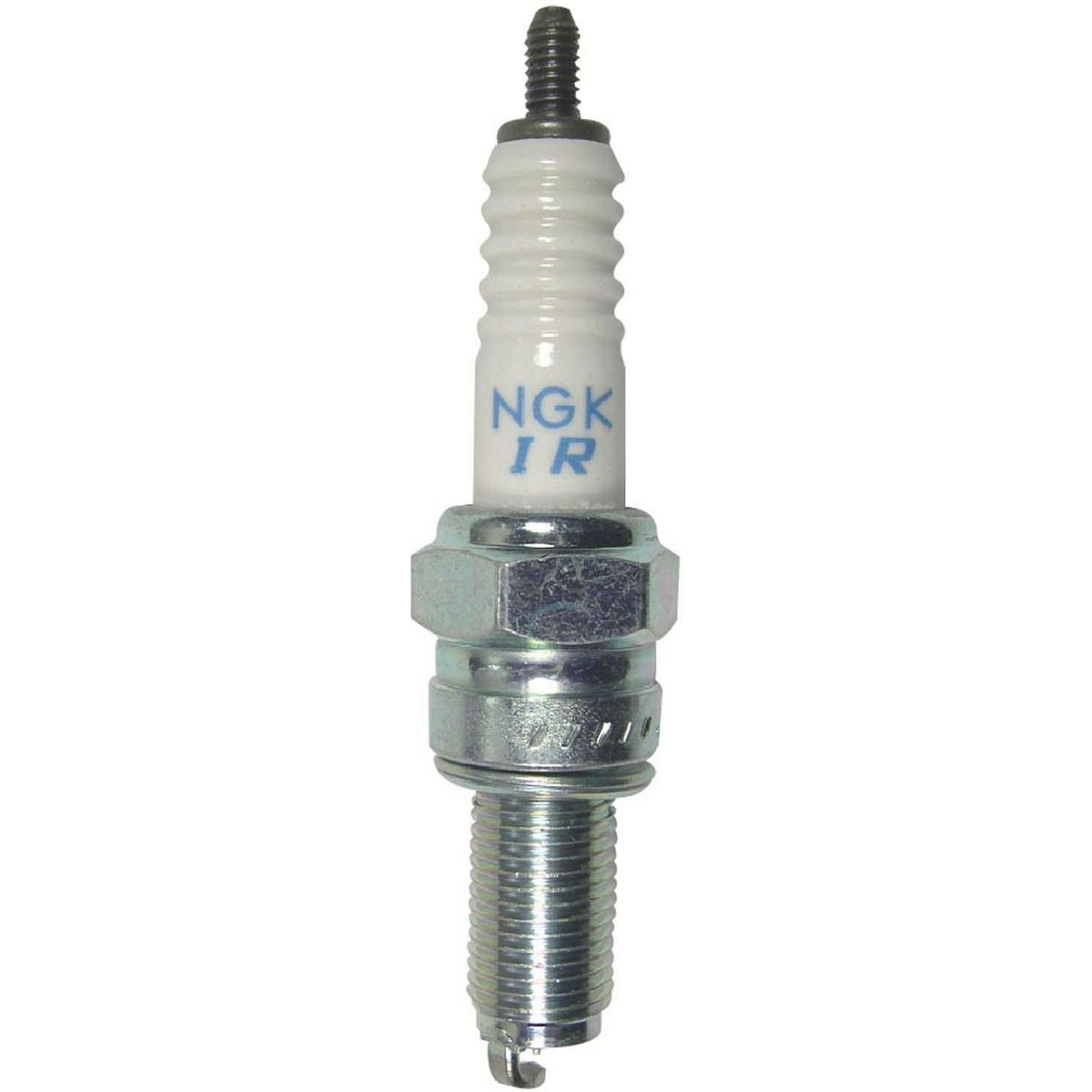

NGK Iridium Spark Plug – Part Number: CR9EIA-9

Iridium NGK spark plugs offer a longer service life than a standard nickel-tipped spark plug: while nickel-alloy plugs offer a service life of roughly 20,000-40,000km, NGK Iridium IX spark plugs offer a service life of up to 60,000km, so fewer replacements are needed over time despite the higher initial cost.

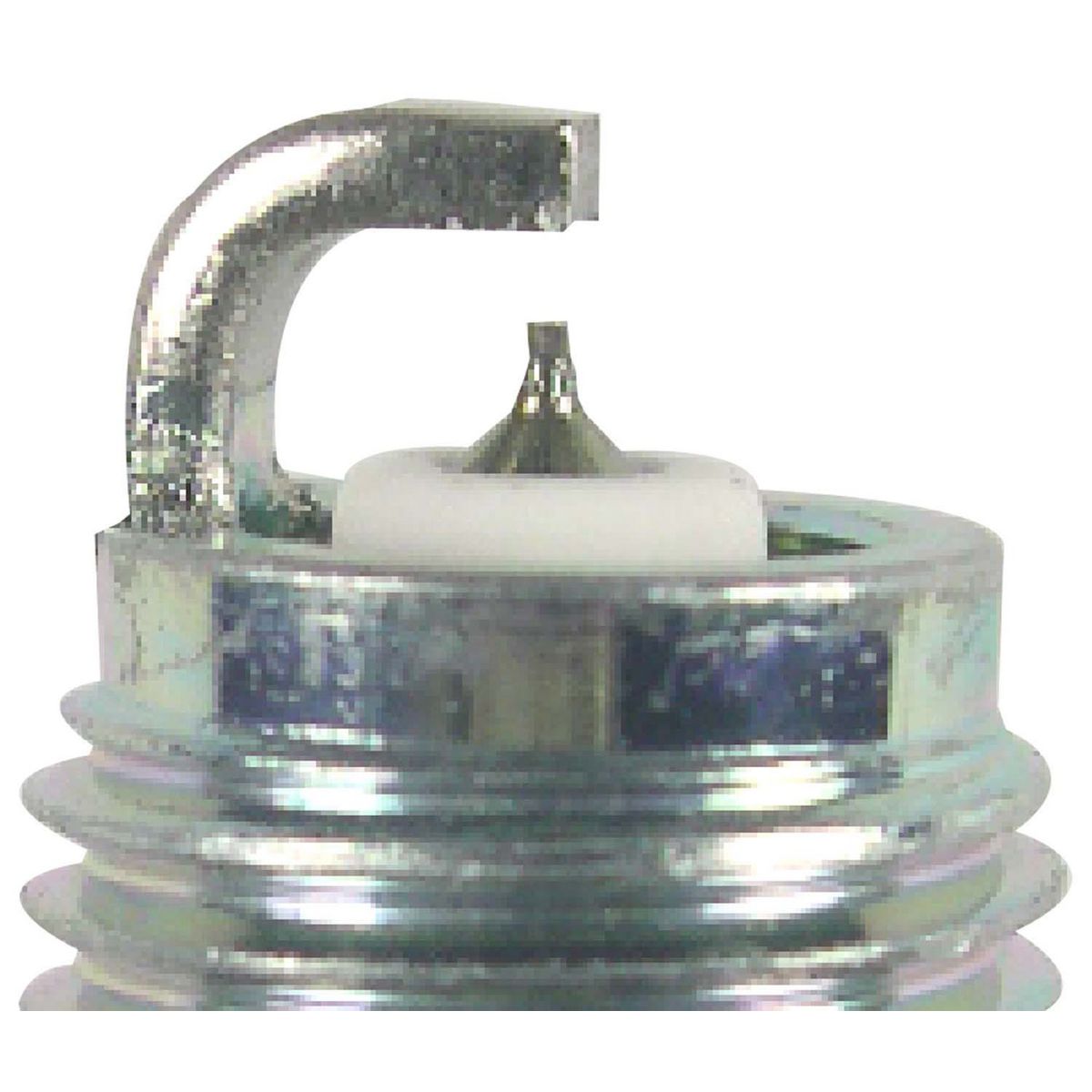

Precious-metal spark plugs like the NGK Iridium IX also offer higher ignitability, achieved with an exposed fine-tip centre electrode that promotes superior flame growth compared with a standard spark plug. Iridium has a much higher melting point (2410°C) than nickel (1453°C), allowing the centre electrode diameter to be reduced from 2.5mm to 0.6mm – a smaller electrode mass that reduces the impedance to flame progress, helping acceleration, fuel consumption and idle quality.

⚙️ Key Features

• Fine iridium-tipped centre electrode for a slow wear rate and stable idle
• Longer service life than standard nickel plugs
• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs reduce the risk of flashover
• Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

📏 Specifications

• NGK stock number: 6289
• Thread: 10 mm
• Reach: 19 mm (3/4 in)
• Hex: 16 mm (5/8 in)
• Seat: Gasket
• Terminal: Threaded stud
• Type: Wide Gap

🚘 Application

Listed in NGK's application charts for marine, motorcycle, ATV and snowmobile equipment. The chart shows a 1.0 mm gap for these engines, but check it against your engine's manual before fitting.

• Husqvarna TE310R (302, 2013) – Motorcycle
• Husqvarna TXC310R (302, 2013) – Motorcycle
• Husqvarna TC250/R (250, 2012) – Motorcycle
• Husqvarna TE250R (250, 2013) – Motorcycle
• Husqvarna TXC250R (250, 2013) – Motorcycle
• Kawasaki ZG1400 - CONCOURS (1400, 2017-2008) – Motorcycle
• Kawasaki ZX1400 - NINJA ZX-14 (1400, 2016-2006) – Motorcycle
• Kawasaki KLZ1000 - VERSYS 1000 (1000, 2017-2015) – Motorcycle
• Kawasaki ZR1000 - Z1000 (1000, 2008-2007) – Motorcycle
• Kawasaki ZR1000 - Z1000 (1000, 2016-2010) – Motorcycle
• Kawasaki ZX1000 - NINJA ZX-10R (1000, 2015-2004) – Motorcycle
• Kawasaki ZX1000GCF, GDF, HCF, HDF (1000, 2013-2012) – Motorcycle
• Kawasaki EN650 - VULCAN S (650, 2017-2015) – Motorcycle
• Kawasaki ER650C - ER-6N (650, 2010-2009) – Motorcycle
• Kawasaki EX650 - NINJA 650 (650, 2017-2006) – Motorcycle
• Kawasaki KLE650 - VERSYS 650 (650, 2017-2007) – Motorcycle
• Suzuki GSX1300BK - B-KING (1300, 2009-2008) – Motorcycle
• Suzuki GSX1300R - HAYABUSA (1300, 2013-2008) – Motorcycle
• Suzuki GSX1300RA, Z - HAYABUSA (1300, 2015-2014) – Motorcycle
• Suzuki GSX-R1000 (1000, 2015-2007) – Motorcycle
• Suzuki GSX-R750, Z (750, 2015-2011) – Motorcycle
• Suzuki GSX-R600 (600, 2009-2008) – Motorcycle
• Suzuki GSX-R600 (600, 2015-2011) – Motorcycle
• Yamaha VMAX - VMX17 (1700, 2016-2009) – Motorcycle
• Yamaha YZF-R1 (1000, 2003-2002) – Motorcycle

🔄 Supersession & Cross Reference

NGK's cross-reference tables list this plug against these part numbers.

• DENSO: 5390, IU27D

📦 Condition

• Brand new genuine product
• Supplied in original packaging
